ASSEMBLY, GUIDE RAIL PACKAGE
ASSEMBLE THE GUIDE RAIL PACKAGE
ON THE LOG
1
2
3

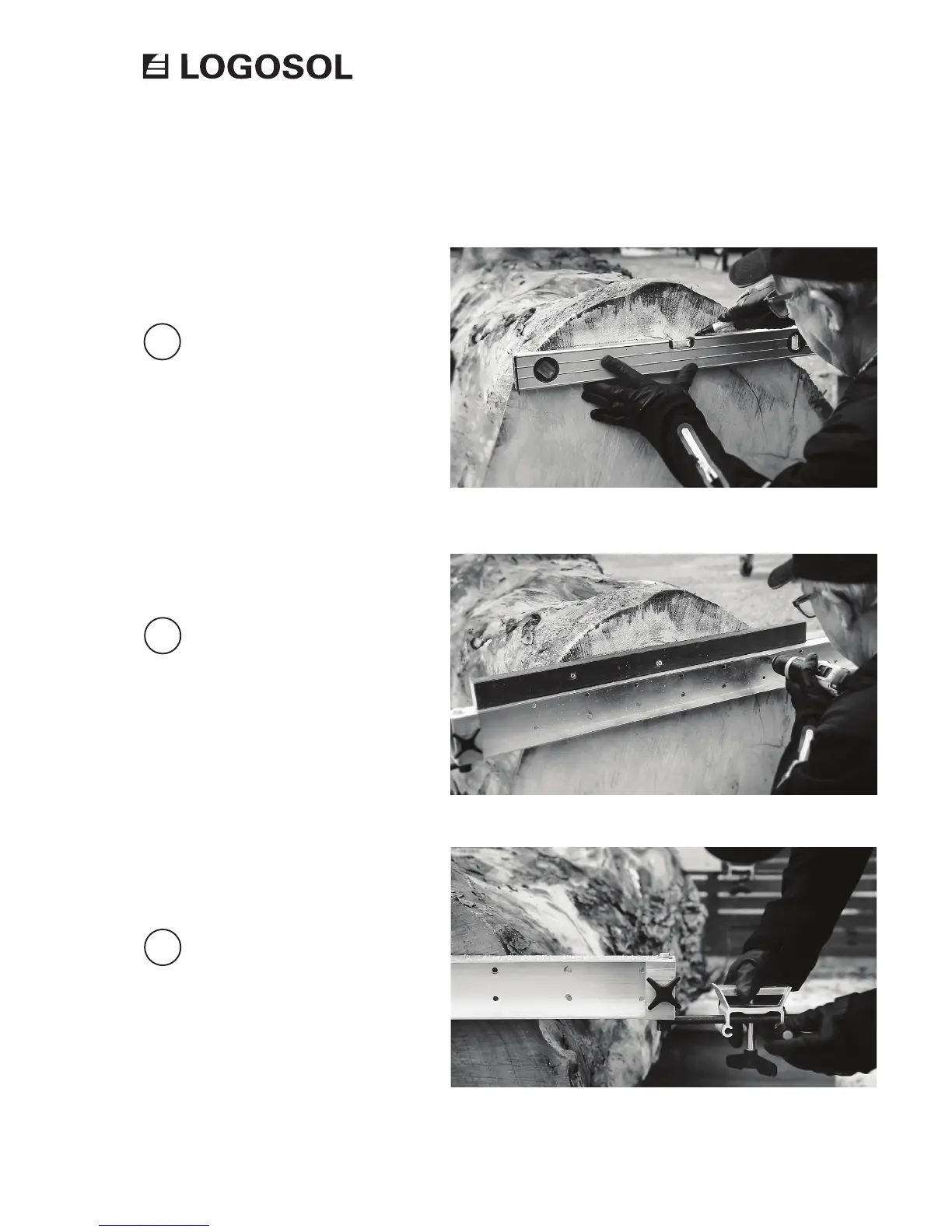

Draw a line to mark the rst cut on the
log. Note that the line will be used for
positioning the guide rail holder. The actual
cut will come 50 mm above the line.
Screw the guide rail holder to the log end so
that the upper edge touches the line.
Install the guide rail supports.
