Lomax STANCE - Install Side Rails

2 3
1: INSTALLING SIDE RAILS
NOTE: Some installs require special instructions. If required, follow special instructions
for side rail attachment along with these standard instructions.

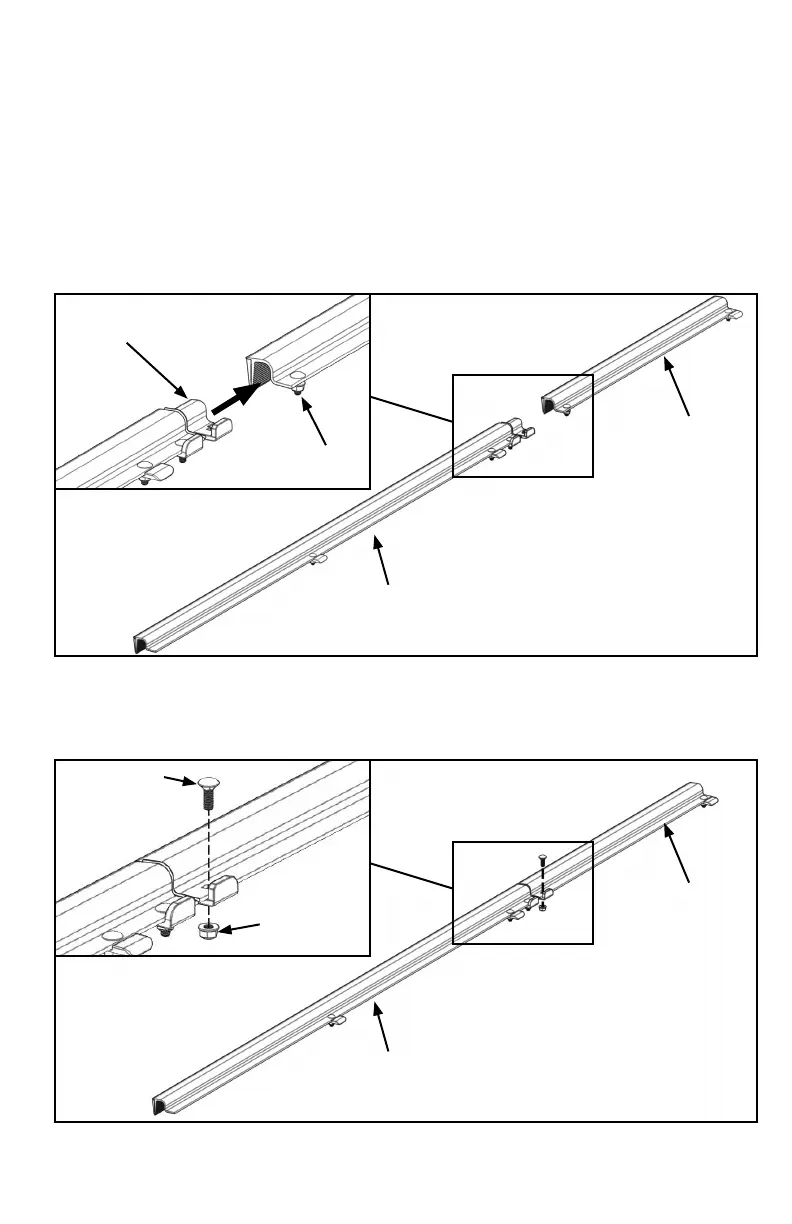

A. Locate two side rail sections with matching proles displayed in image below.
B. On side rail section without pre-installed bracket, remove 1/4” x 3/4” carriage bolt and
1/4” nylock hex nut from rail end.
C. Slide end of short rail (front) with mounting hole onto assembly bracket pre-installed
on longer rail (rear).
Front side rail
(short)
Rear side rail
(long)
Pre-installed assembly
bracket
Remove pre-installed
bolt and nut
D. Attach short side rail (front) to assembly bracket with previously removed 1/4” x 3/4”
carriage bolt and 1/4” nylock hex nut. Align side rails then tighten with 7/16” wrench.
NOTE: Side rails should have little to no gap at assembly bracket.
1/4” Nylock
hex nut
Front side rail
(short)
Rear side rail
(long)
1/4” x 3/4”
Carriage bolt
