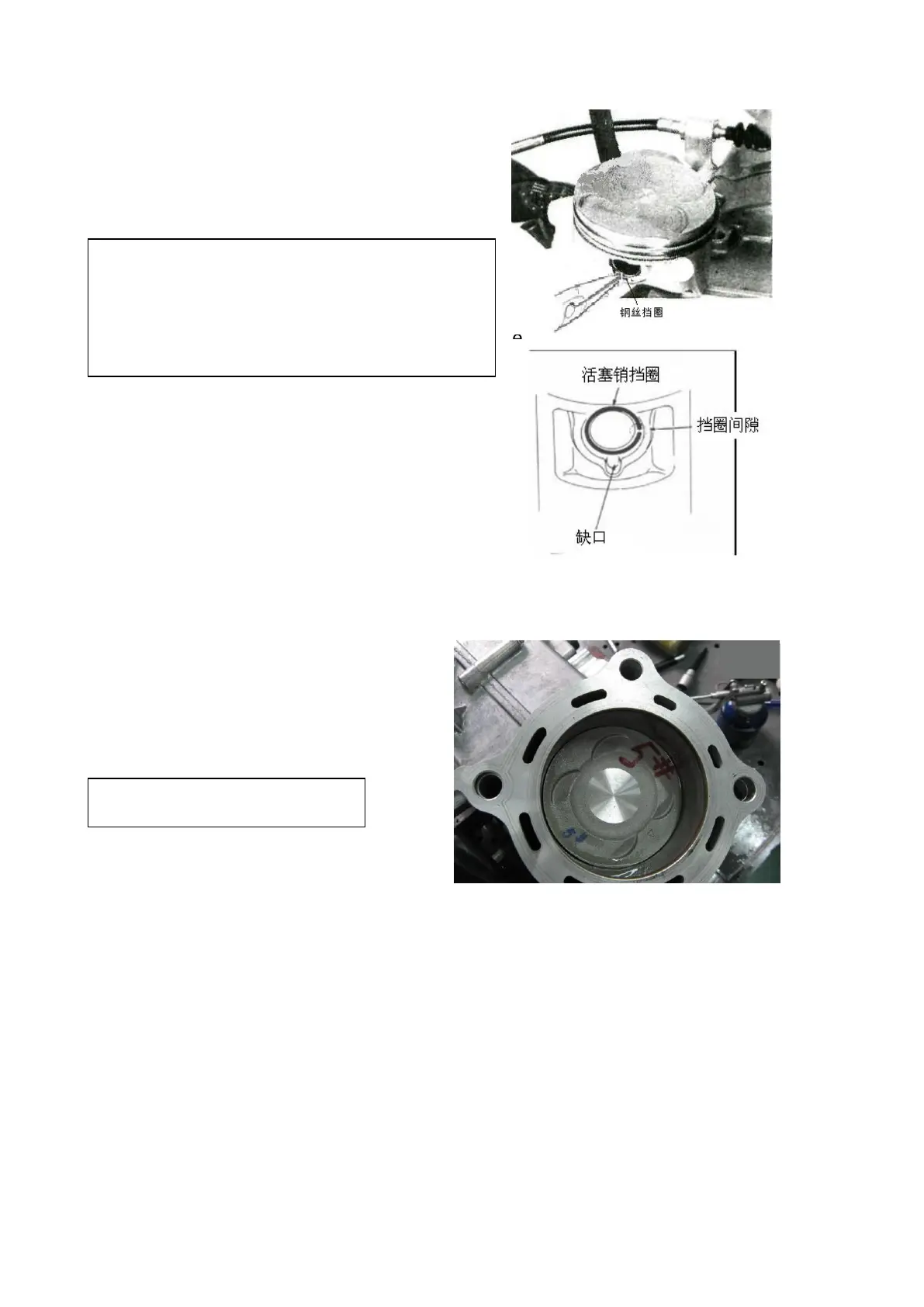

Install piston
Install piston, piston pin and new circlip of piston
in together.
Caution：The side with mark“▲” face to exhaust
valve when installing piston.
Clearance on end of circlip should interlace
opening on piston. New circlip must be used
when in re-installation. No circlip drop into crankcase
is allowed.
Install cylinder body
Install new gasket and positioning pin.
Spread oil on cylinder and piston rings.
Install cylinder.
Caution: No damage to piston
During installation is allowed. No
timing chain drop into crankcase
is allowed.
Install gasket and positioning pin.
Install cylinder head.
