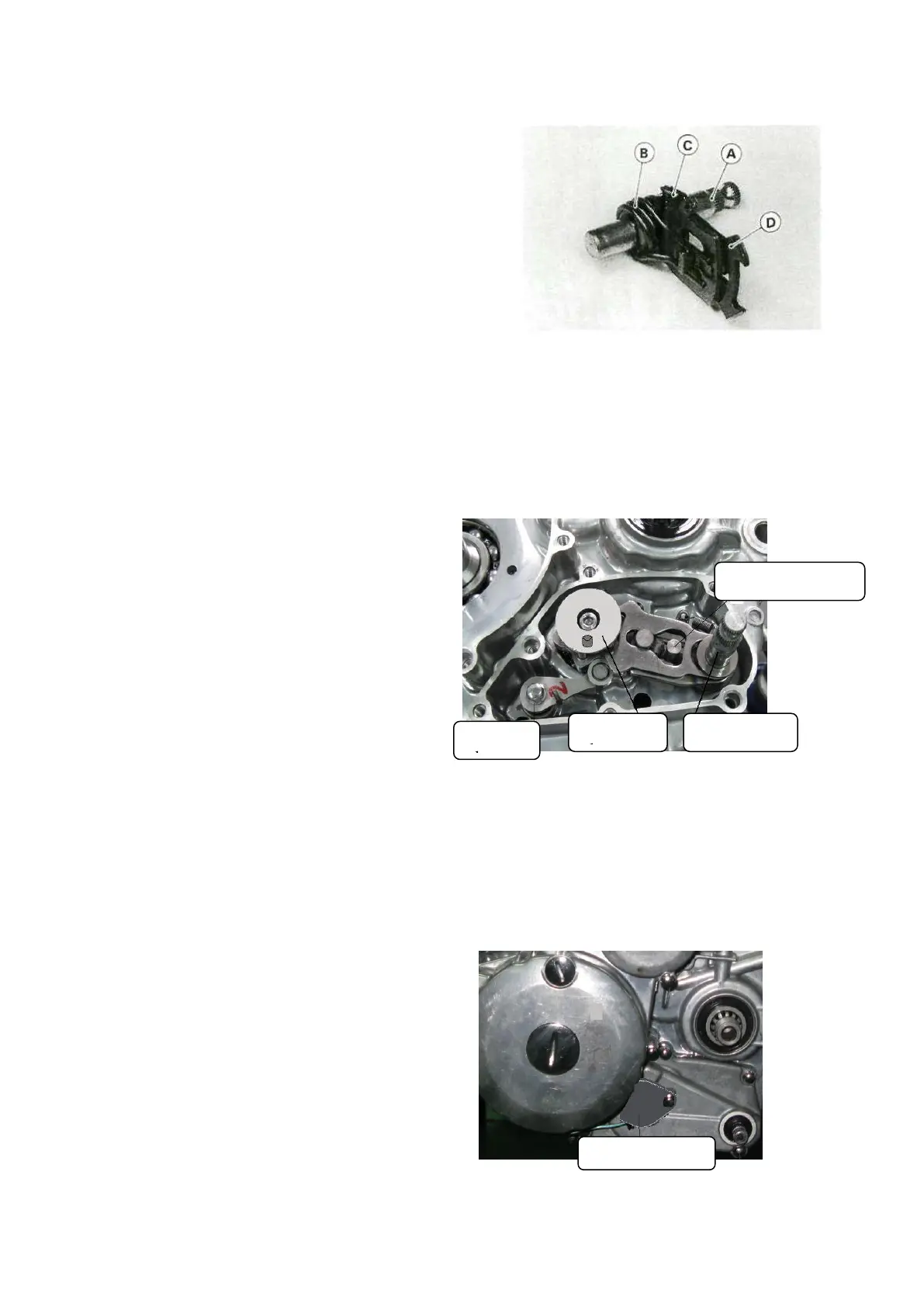

Check gearshift spindle
Check damage or distortion on gearshift
spindle A, in case distortion is found, adjustment
is needed, in case damaged, replace it.
Check damage or distortion on returning spring B,
in case damage or distortion is found, replacement
is needed.
Check damage on gearshift arm C, in case damage
is found, replacement is needed.
Check damage on check plate D of gearshift, in case
damage is found, replacement is needed.
Install check plate
Install positioning pin of gearshift drum plate
Install gearshift drum plate
Install touching plate
Install screw of touching plate
Screw fastening torque：（8～12）N·m。
Install check plate comp.
Install bolt of check plate
Installation torque of bolt of check
plate ：（8～12）N·m。
Install gearshift arm
Install positioning bolt F of gearshift arm
Installation torque of positioning bolt：（25～30）N·m 。
Install cover of gearshift device
Install positioning pin of gearshift device cover
Install new gasket
Install gearshift device cover
Install gear indicator comp.
