Spread lubricant on each gear and
turnable parts.

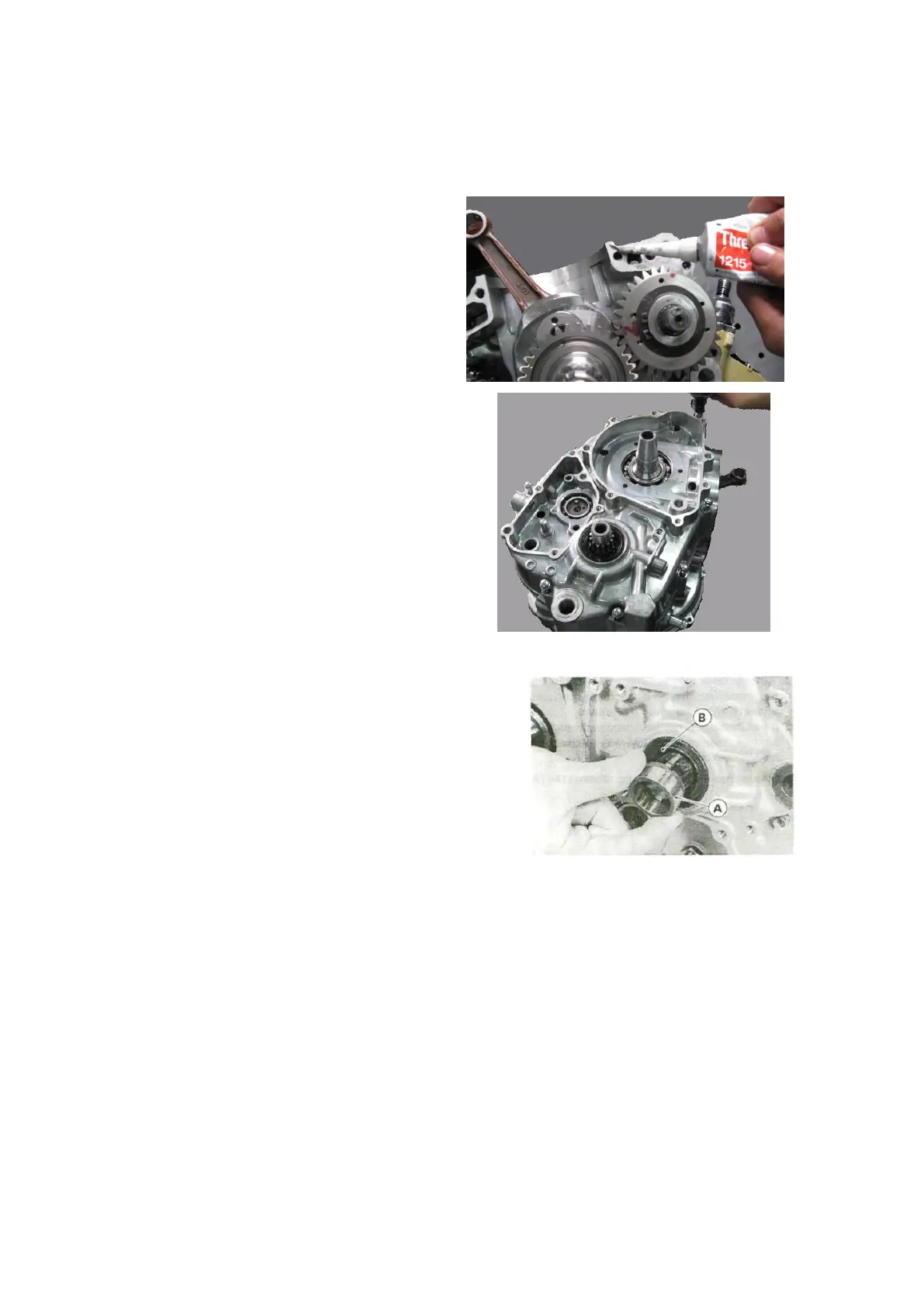

Spread sealant on end face of case body.
Match up left and right crankcase
Screw up installation bolt of crankcase
Installation torque of bolt:（8～12）N·m。
Install o-ring B and jacket A on countershaft.
Install chain, chain adjustment plate, and chain
tensioning plate
Install piston comp.
Install cylinder body comp.
Install cylinder head comp.
Install check plate comp. and five star shaped plate
Install gearshift arm comp.
Install cover of gearshift device
Install electrical starting gear and starting motor
Install magneto comp.
Install left front cover
Install starting spindle comp.
Install oil pump comp.
Install clutch comp.
Install right crankcase cover
Fill lubricant
