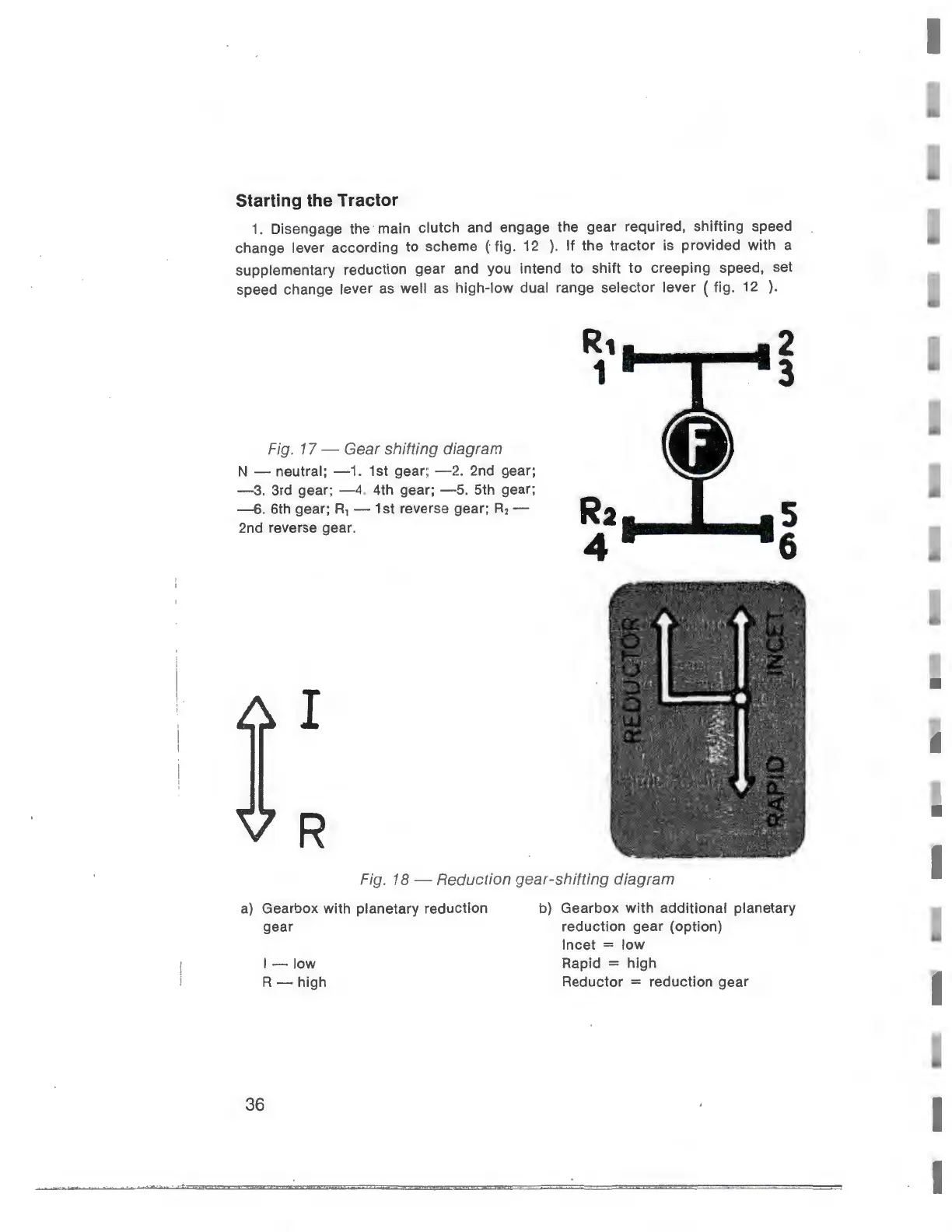

Starting the Tractor
1. Disengage the main clutch and engage the gear required , shifting speed
change lever ac
cording to sche me (· fig. 12 ). If the tractor is provided with a
su
pplementary reduction gear and you intend to shift to creeping speed, set
speed change lever as well as hig
h-low dual range selector lever ( fig. 12 ).
Fig. 17 - Gear shift ing diagram
N - neutral; -1. 1st gear ; - 2. 2nd gear;
-3. 3rd gear; -4 . 4th gear; -5. 5th gear;
-6 . 6th gear; R
1
-
1st reverse gear ; R
2
-
2nd reverse gear.
I
R
R1
1
2
3
5
6
Fig. 18 - Reduction gear - shifting diagram
a) Gearbox with planetary reduction
gear
I-low
R - high
36
b) Gearbo x with additional planetary
reduction gear ( option)
lncet
= low
Rapid = high
Reductor = reduction gear
