Long 460 - TRANSFERS WITH HITCHED IMPLEMENTS; Safe Towing Procedures

Transfers wit h hitched implements
Never tow imp lements by simply hook ing them to the lifter top link. During
transfer travels the imp lement mu st always be atta che d to the three-hi tching-
poin ts; further more , the top link s upport must be immobilized and t he chains
must be full y. stretched.

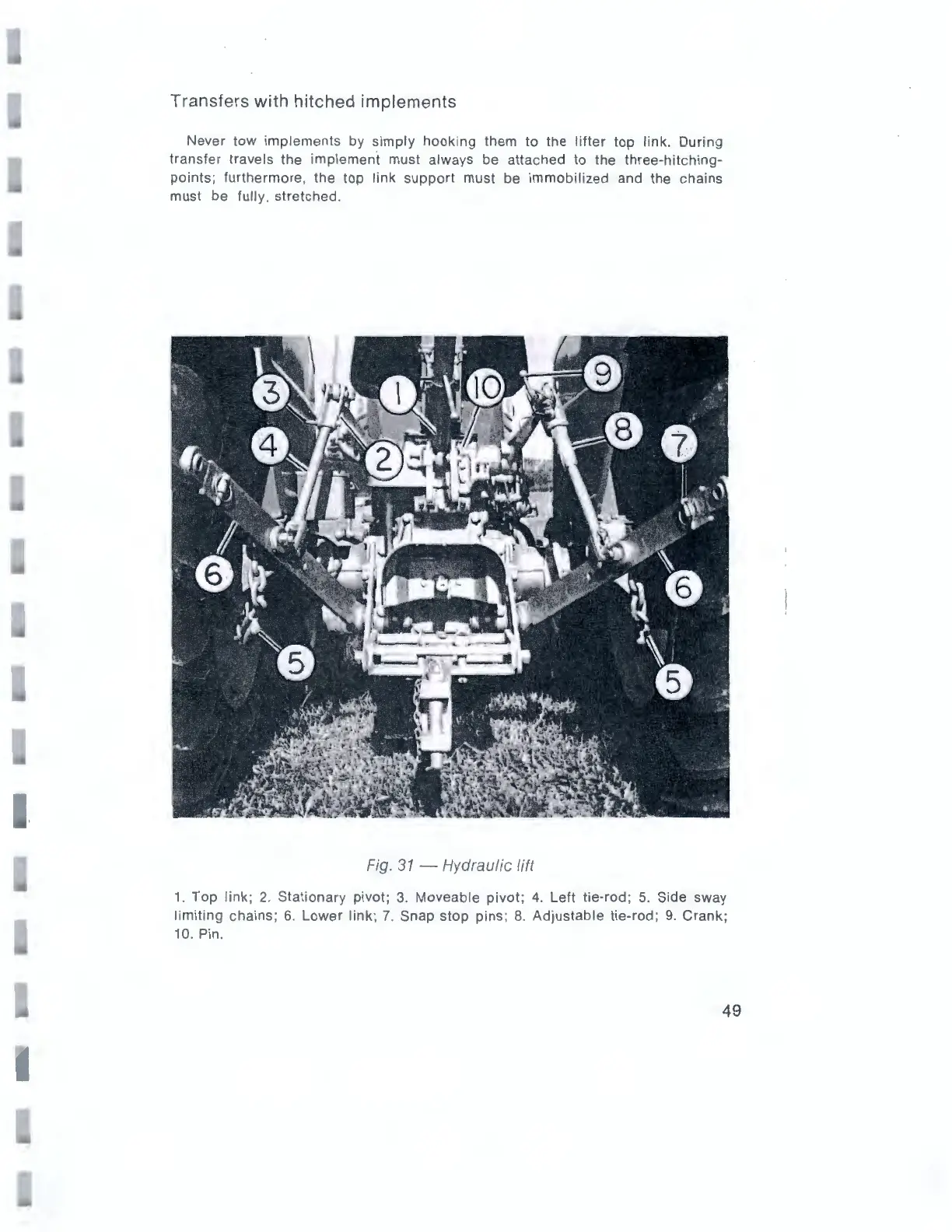

Fig. 31 - Hydraulic lift
1. T op l ink; 2. Stat ionar y pivot; 3. Moveable pivot ; 4. Left tie-rod ; 5. Side sway
limit ing chains; 6. Low er link; 7. Snap stop pins ; 8. Adjustable tie-rod ; 9. Crank;
10. Pin.
