Look R96 - FITTING THE HANDLEBAR ON THE STEM

EN
FITTING THE HANDLEBAR
ON THE STEM
Authorized handlebar diameter: 31.8mm
Tightening on handlebar of min. width: 45 mm
1. Degrease the cover (10), the handlebar
(9) and the stem (7).
2. Grease the M5 x 30 screws (8) on the
thread and the head.

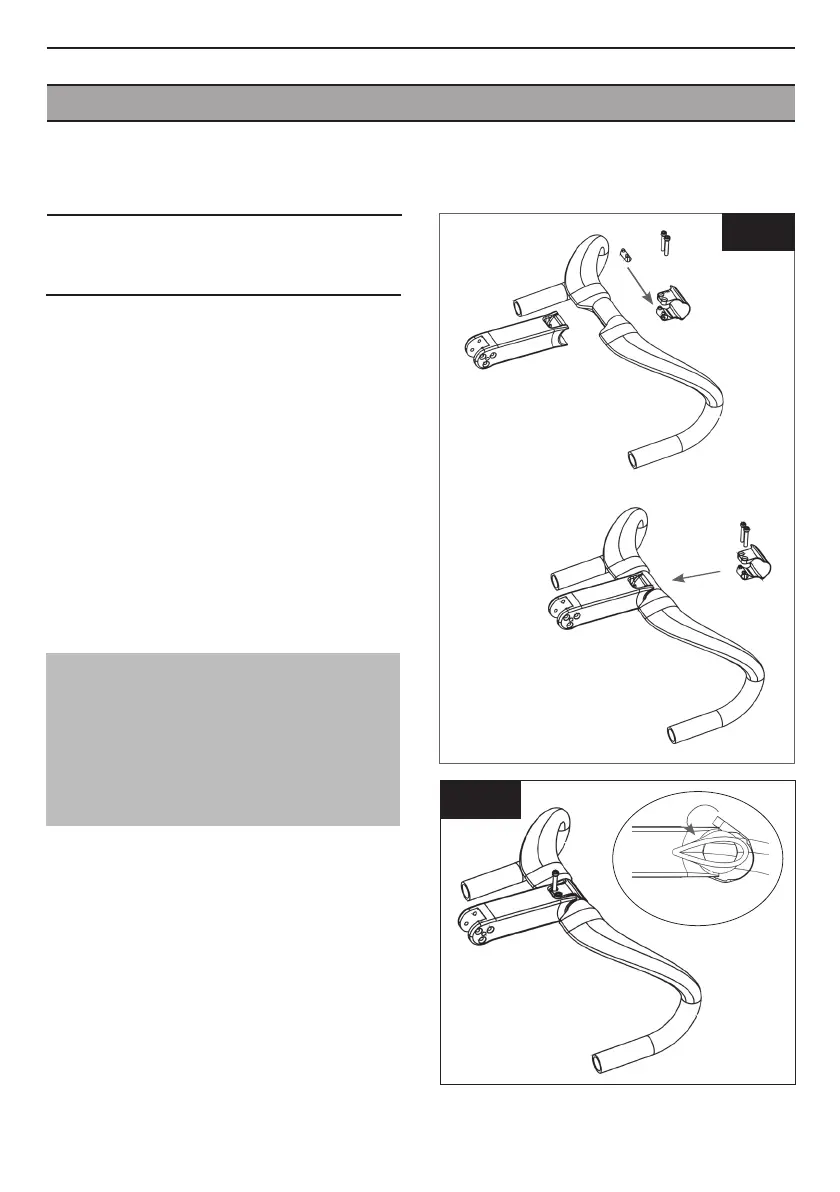

3. Position the barrel in the cover. The
barrel must be below the stem (Fig. 9).
4. Pre-position the handlebar on the stem.
5. Position the lower part of the cover with
the barrel in the stem.
6. Fold the upper part onto the stem.
Fig. 9
Fig. 10
7. Insert the cover fixing screw (Fig. 10).
8. Evenly tighten the two cover tightening
screws to torque of 8 Nm.
NOTE :
Le capot est suffisamment souple pour
pouvoir passer par dessus le diamètre
31.8mm du cintre et par dessus la potence.
Une ouverture de 33mm maximum du
capot est possible.
19
