Look R96 - ANGULAR ADJUSTMENT; REMOVING THE STEM

20
EN
1. Gently loosen (about 3 mm) the 6 FHCX
screws without removing them from the
assembly.
2. Position a 5 mm Allen key in the central
hole of the stem, right side (Fig. 11).
3. Loosen the M6 x 10 mm central screw
until one of the two cones disengages
from the fork head.
4. Continue loosening until the second
cone also disengages from the fork
head, being careful not to move the
composite arms away from the stem.
5. When the two cones are extracted, it is
then possible to adjust the angle of the
stem.
6. Caution - do not forget to tighten the
M6 x 10 screw again into the left cone
before tightening the stem on the fork.
ANGULAR ADJUSTMENT /
REMOVING THE STEM
FITTING THE WHEELS
Follow the manufacturer’s fiting instructions.
Our fork dropouts are designed with safety
pins.
Before cycling, make sure the wheels
are solidly locked by the quick release
mechanism.

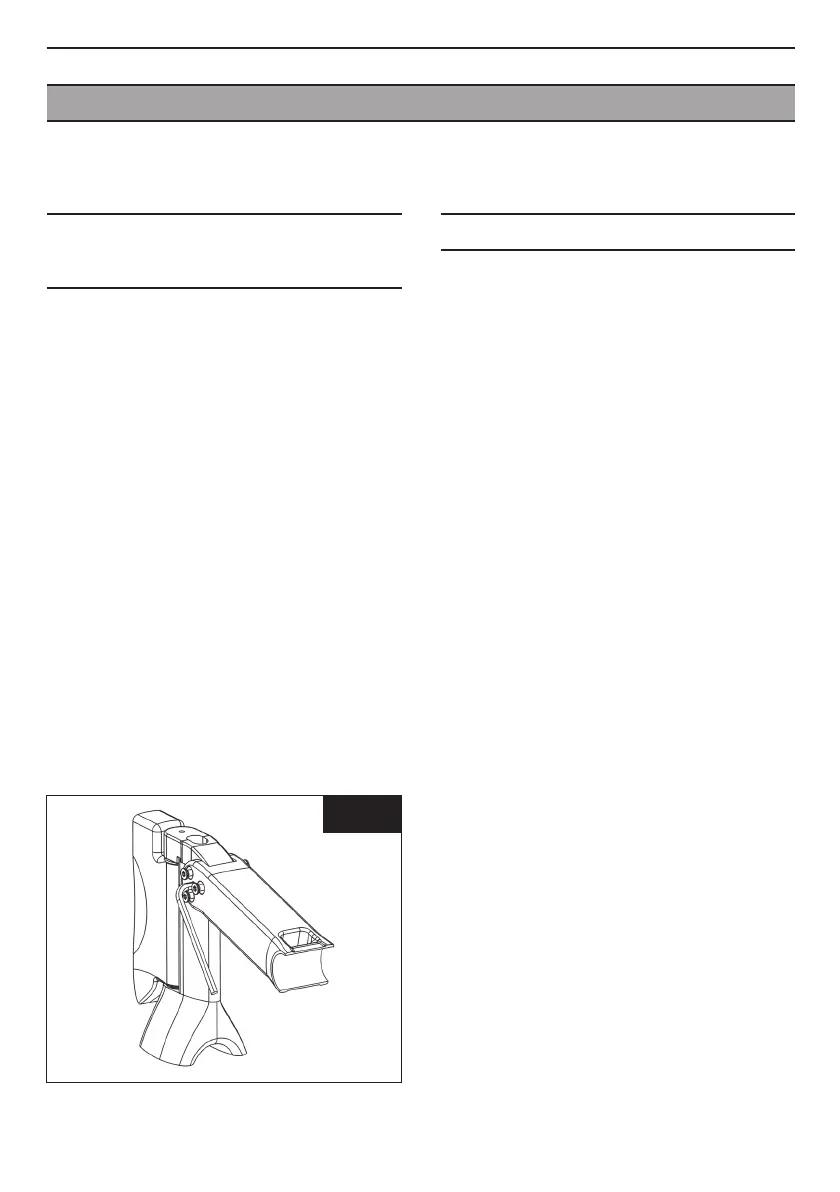

Fig. 11
