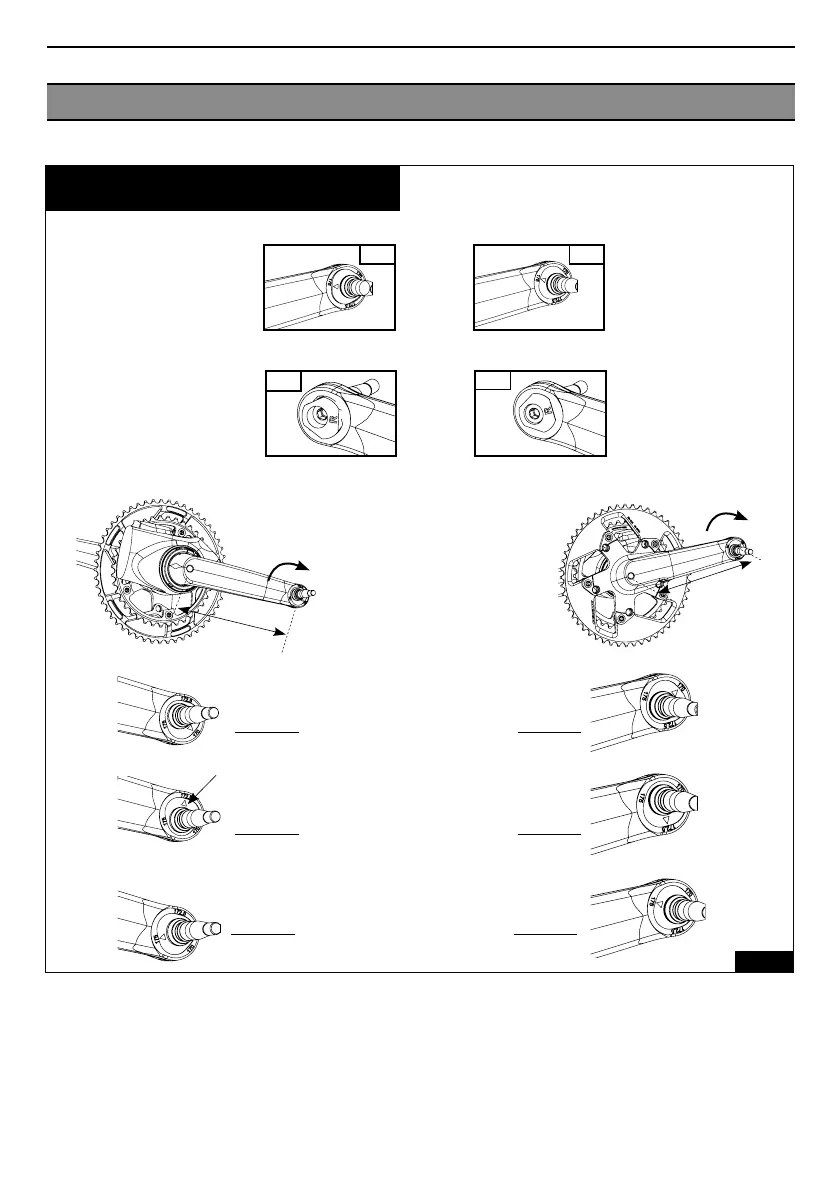

CHOICE OF CRANK LENGTH
Fig 9
NO OK
NO OK
NO !
NO !
OK !
OK !
Pivot the support washer before
inserting it in the crank so that the
axis marking is found facing the
selected crank length.
Position of the washer for
a crank length of 170mm
Position of the washer for
a crank length of 172,5mm
Position of the washer for
a crank length of 175mm
The support washer should not overrun from its housing
The washer should penetrate to the end of the housing and not stick out after tightening
Left-hand
crank
Right-hand
crank
Axle marker
