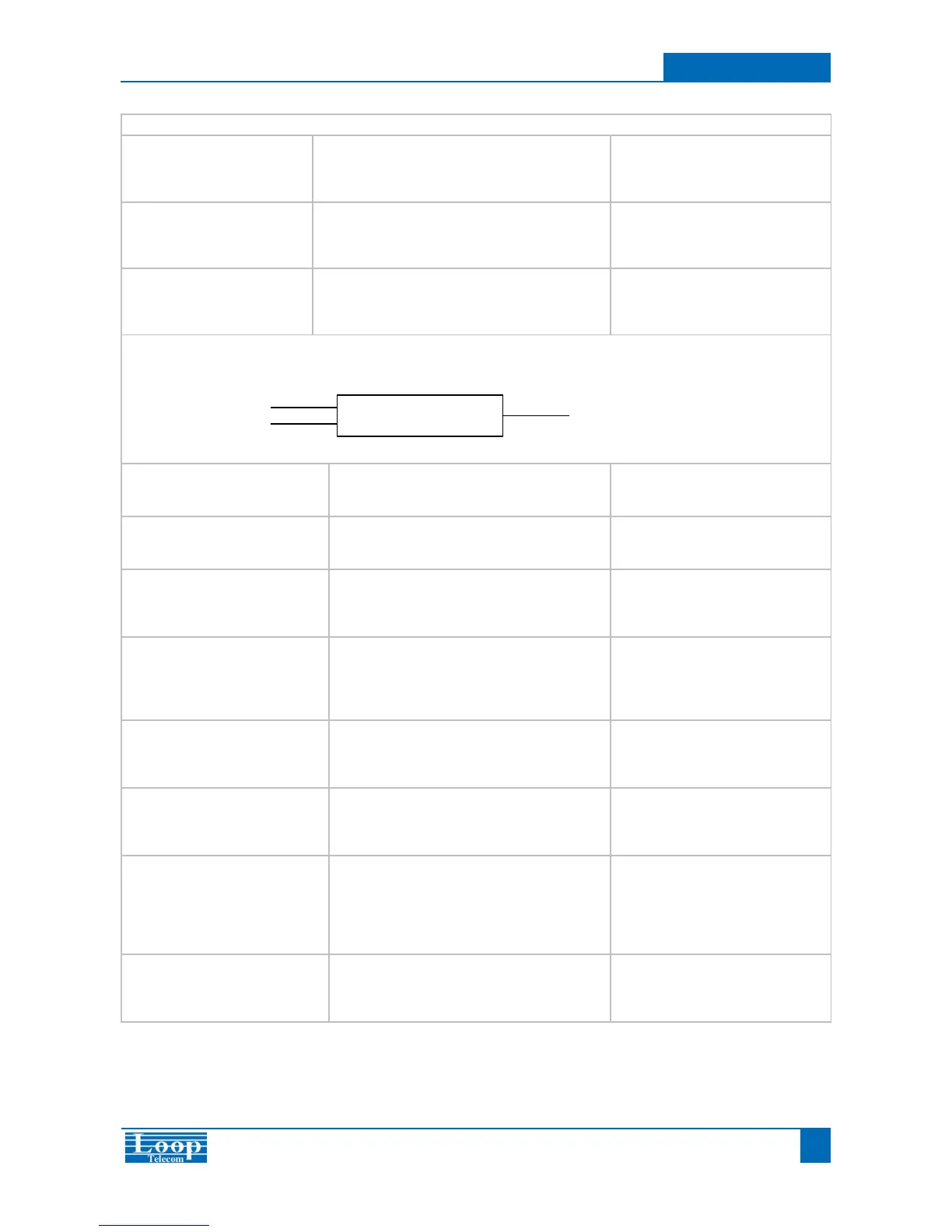

Loop Telecom Loop-O9500R - Page 10

Loop-O9500 SDH/SONET IMAP
SDH/SONET-MSTP
10
Conversion Panels
Loop-ACC-P-1SCSI-16RJ-G
1u panel for one SCSI to 16 RJ connectors
without cable
432x44x23mm (WxHxD)
· Use with 16/32/63TE HS tributary
modules
· This panel can also be used in the
Loop-O9400R.
Loop-ACC-P-1SCSI-16WW-G
1u panel for one SCSI to 16 Wire Wrap
connectors without cable
432x44x40mm (WxHxD)
· Use with 16/32/63TE or
16/32/63E75 HS tributary modules
· This panel can also be used in the
Loop-O9400R.
Loop-ACC-P-1SCSI-16BNC-G
1.5u panel for one SCSI to 16 BNC connectors
without cable
432x66x53mm (WxHxD)
· Use with 16/32/63E75 HS tributary
modules
· This panel can also be used in the
Loop-O9400R.
Y-box Panels for 120/100 ohm
Y-Box
(120/100 ohm)
E1 (120 ohm) or T1
(SCSI)
E1 (120 ohm) or T1
(SCSI)
E1 (120 ohm) or T1
(RJ, Wire Wrap, TELCO 50, or TELCO 64)
Loop-ACC-Y-2SCSI-16RJ-G
1u Y-box 16-port panel for two SCSI (E1(120
ohm) or T1) to 16 RJ (E1(120 ohm) or T1)
connectors without cable
Use with Loop-O9500-R-16TE-G
Loop-ACC-Y-2SCSI– 16WW-G
1u Y-box 16-port panel for two SCSI (E1(120
ohm) or T1) to 16 Wire Wrap (E1(120 ohm) or
T1) without cable
Use with Loop-O9500-R-16TE-G
Loop-ACC-Y-2SCSI-
2T50P8-16TE-G
1u 16-port Y-box panel in (E1(120 ohm) or
T1) for two SCSI to two TELCO 50 (E1(120
ohm) or T1) connectors (8 ports per TELCO
connector) without cable
Use with Loop-O9500-R-16TE-G
Loop-ACC-Y-2SCSI-
2T50P12-16TE-G
1u 16-port Y-box panel in (E1(120 ohm) or
T1) for two SCSI to two TELCO 50 (E1(120
ohm) or T1) connectors (12 ports to the first
TELCO connector, 4 ports to the second
TELCO connector ) without cable
Use with Loop-O9500-R-16TE-G
Loop-ACC-Y-2SCSI-
1T64P16-16TE-G
1u 16-port Y-box panel in (E1(120 ohm) or
T1) for two SCSI to one TELCO 64 (E1(120
ohm) or T1) connectors (16 ports per TELCO
connector) without cable
Use with Loop-O9500-R-16TE-G
Loop-ACC-Y-4SCSI-
4T50P8-32TE-G
1u 32-port Y-box panel in (E1(120 ohm) or
T1) for four SCSI to four TELCO 50 (E1(120
ohm) or T1) connectors (8 ports per TELCO
connector) without cable
Use with Loop-O9500-R-32TE-G or
Loop-O9400-R-63TE-G
Loop-ACC-Y-4SCSI-
3T50P12-32TE-G
1u 32-port Y-box panel in (E1(120 ohm) or
T1) for four SCSI to three TELCO 50 (E1(120
ohm) or T1) connectors (12 ports to the first
TELCO connector, 12 ports to the second
TELCO connector and 8 ports to the third
TELCO connector) without cable
Use with Loop-O9500-R-32TE-G or
Loop-O9400-R-63TE-G
Loop-ACC-Y-4SCSI-
2T64P16-32TE-G
1u 32-port Y-box panel in E1 120 ohm or T1
for four SCSI to two TELCO 64 (E1(120 ohm)
or T1) connectors (16 ports per TELCO
connector) without cable
Use with Loop-O9500-R-32TE-G or
Loop-O9400-R-63TE-G
