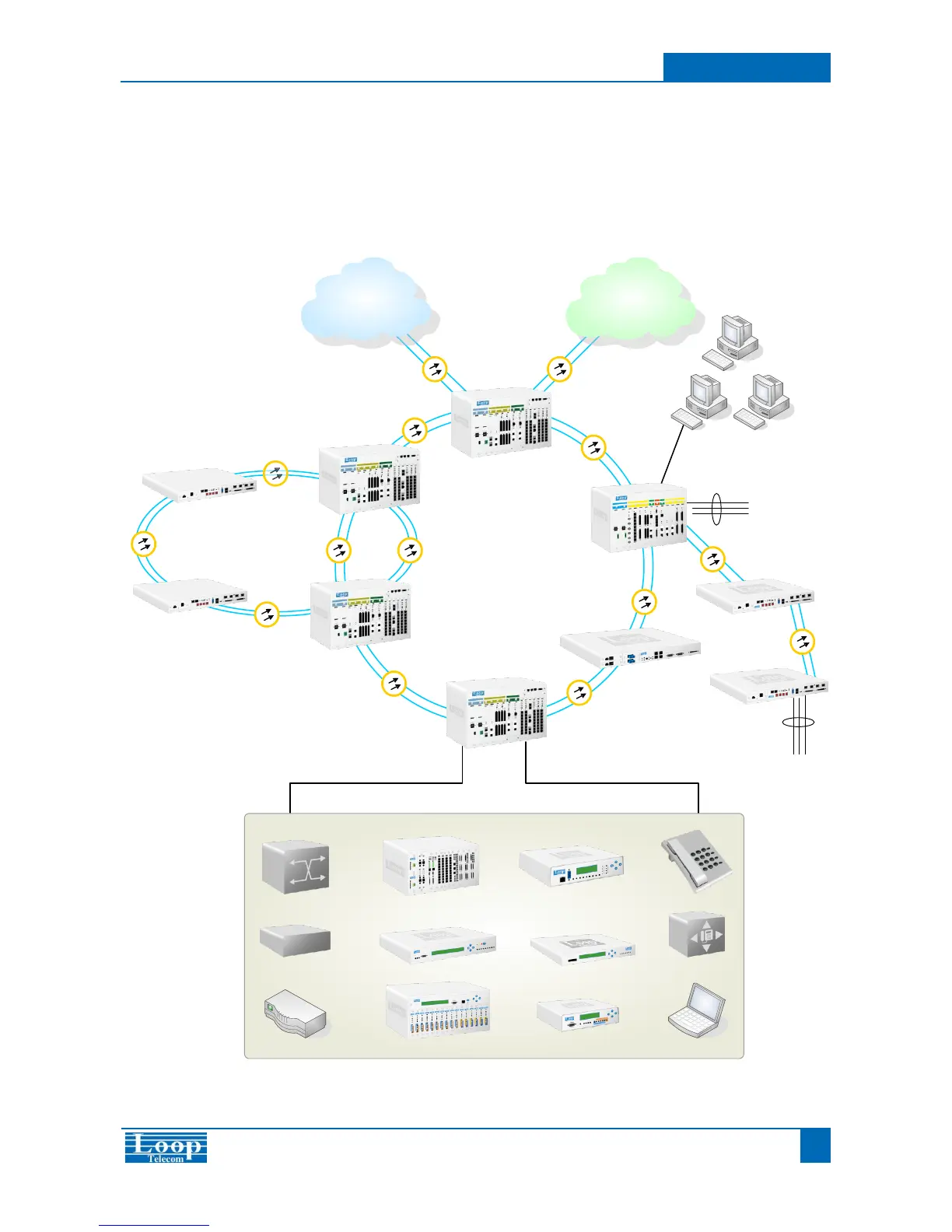

Application Illustration
The O9500R can be configured as either a Terminal Multiplexer (TM), a Linear Add/Drop Multiplexer (ADM), or
as a cross-connect (DACS) within the same enclosure. With UPSR/SNCP and MSP (1+1) protection, the
O9500R can easily provide a well-protected transmission path and integrated access in various applications as
shown below.
SDH Backbone
STM-16 (OC-48)
Ethernet
Backbone
`
STM-1/4/16
(OC-3/12/48)
Ring
STM-1 (OC-3)
Ring
` `
Loop-iNMS
E1/T1
E3/T3
Ethernet
Ethernet
Switch
xDSL, IP-
DSLAM
VPN Router
PBX
FXS/FXO
PC LAN
STM-1/4/16
(OC-3/12/48)
Links
E1/T1
E3/T3
Ethernet
O9100
O9100
O9500R
O9500R
O9500R
O9500R
O9400R
O9400S
O9100
O9100
C5500
V4200-9
AM3440
E1200
E1500
H3300 G.SHDSL
