Lorentz ETATRACK active - Wiring Diagram for PS Pump Systems; PS Pump System Wiring Configuration

www.lorentz.de, version 070402. Errors excepted and possible alterations without prior notice 3
Pum
p
Controller
Wiring Diagram Controller ETATRACK active
(
included in controller box
)

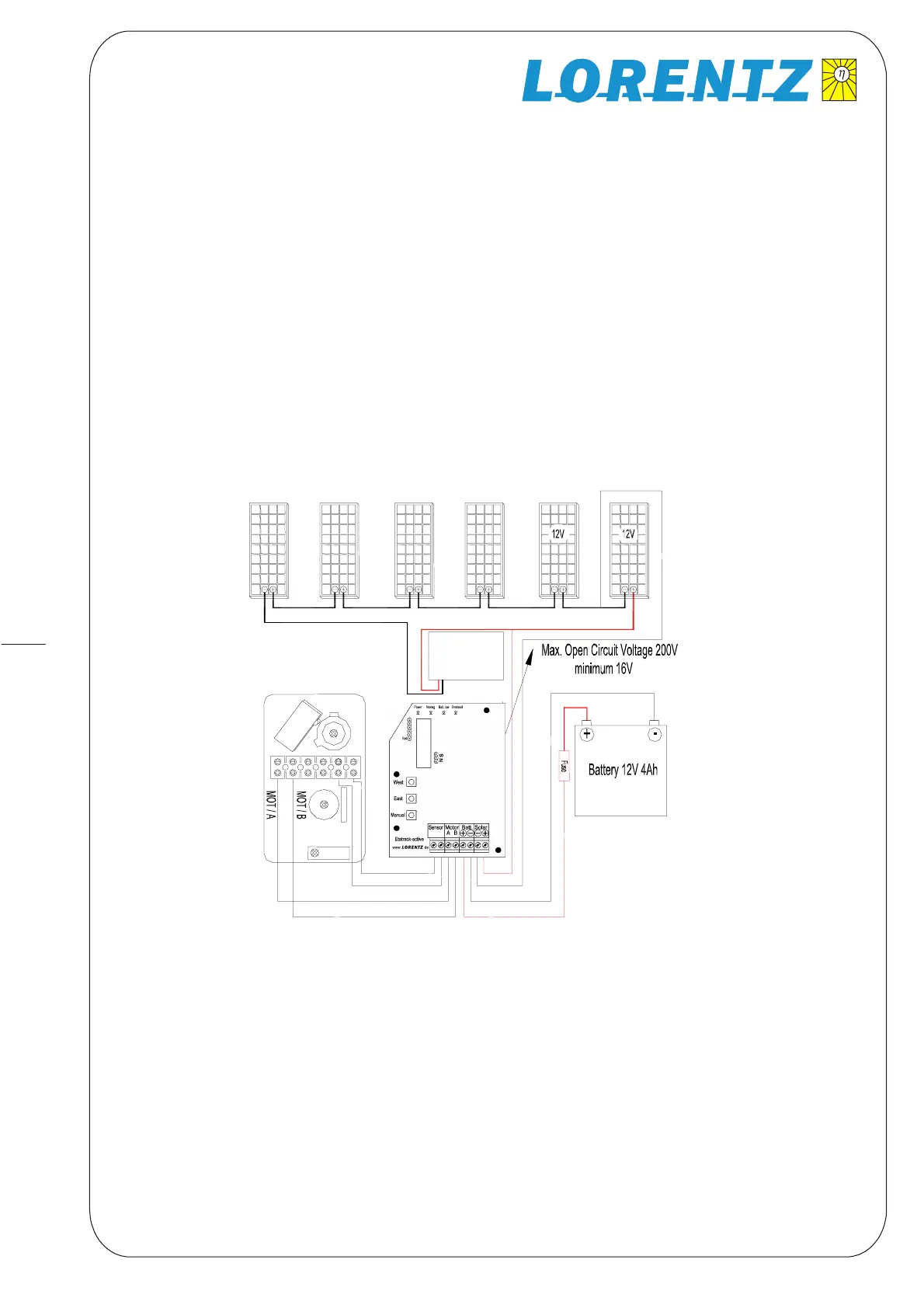

Wiring diagram Controller ETATRACK active
for applications
with LORENTZ PS Pump Systems
