8 Installation
5.1 Mounting
The PowerPack should be mounted on a wall or
panel close to the pump controller in a vertical
position. The unit must be protected from direct
rainfall and direct sunlight.
Fixing pattern for holes: 310 x 292 mm / 12.2 x 11.5 in

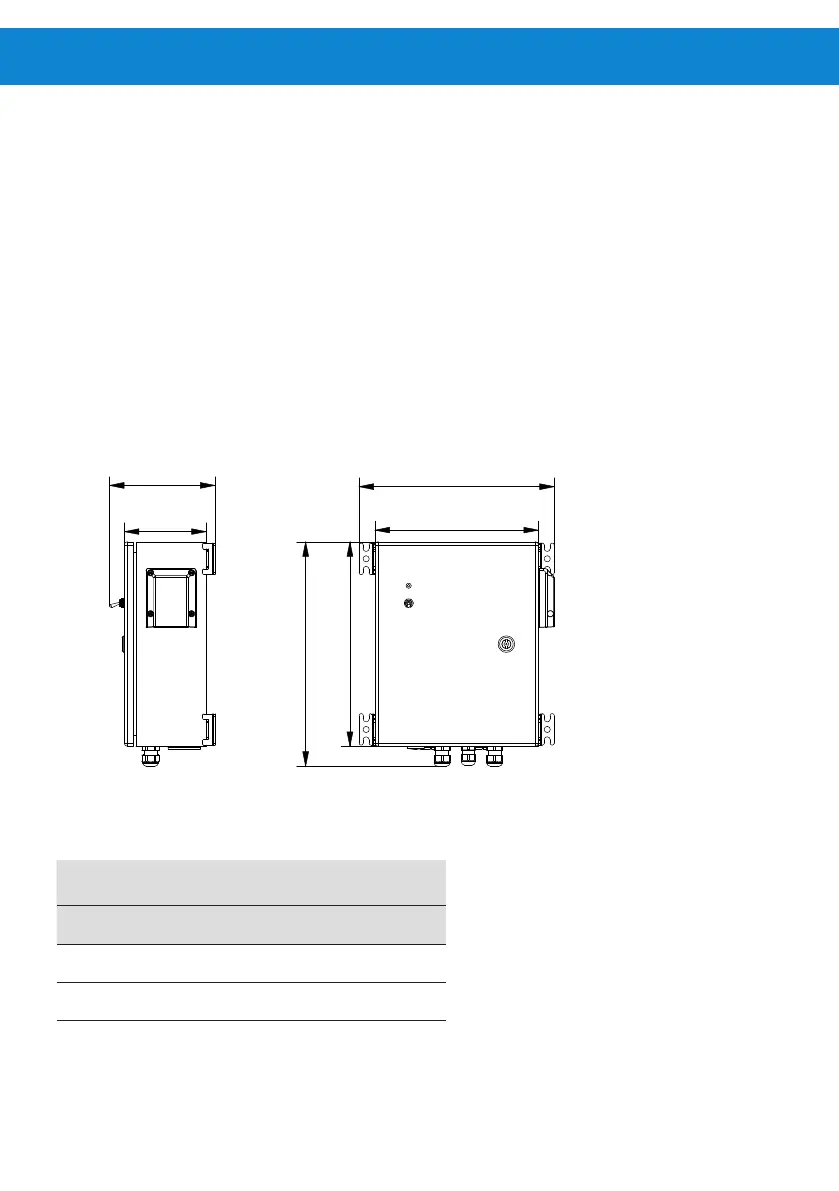

Figure 3: Product dimensions
A
D
B
E
C
F
A= 280mm
B= 350mm
C= 140mm
D= 334mm
E= 384mm
F= 180mm
Product Dimensions for Installation Manual
Dimensions
A B C D E F
mm 280 350 140 334 384 180
in 11 13.8 5.5 13.1 15.1 7.1
