Lorentz PS150 Series User Manual

Table 3: Controller dimensions for installation
Controller
Modell
Dimension [mm]
Weight [Kg]W1 W2 W3 H1 H2 H3 D1 D2
PS150 to PS200 (non UL) 190 174 - 272 250 234 100 70.5 1,2
PS150 to PS200 (UL)
PS600 to PS1800
178 156 116 396 364 - 150 165 4,5
PS4000 178 156 116 595 563 - 150 165 9,0
W2
W1
H2
H1
H3
D2
D1

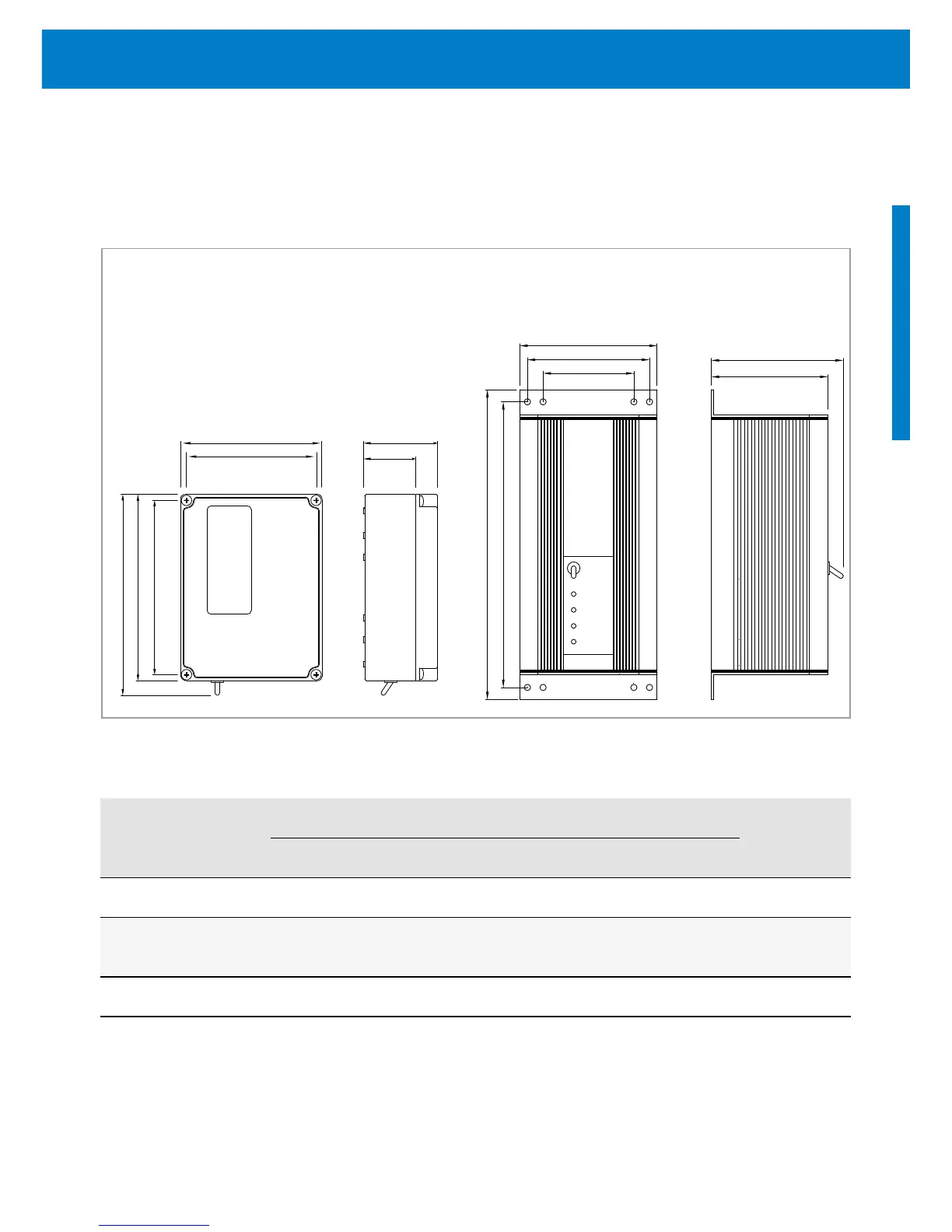

Figure 3: Controller dimensions for installation
Left:
PS150 to PS200 (non UL)
Right:
PS150 to PS200 (UL) • PS600 to PS1800 • PS4000
H2
H1
W3
W2
W1
D2
D1
20 Controller Installation
Controller Installation 21
