Terminal Wiring Example: PS150-UL / PS PS600 to PS4000

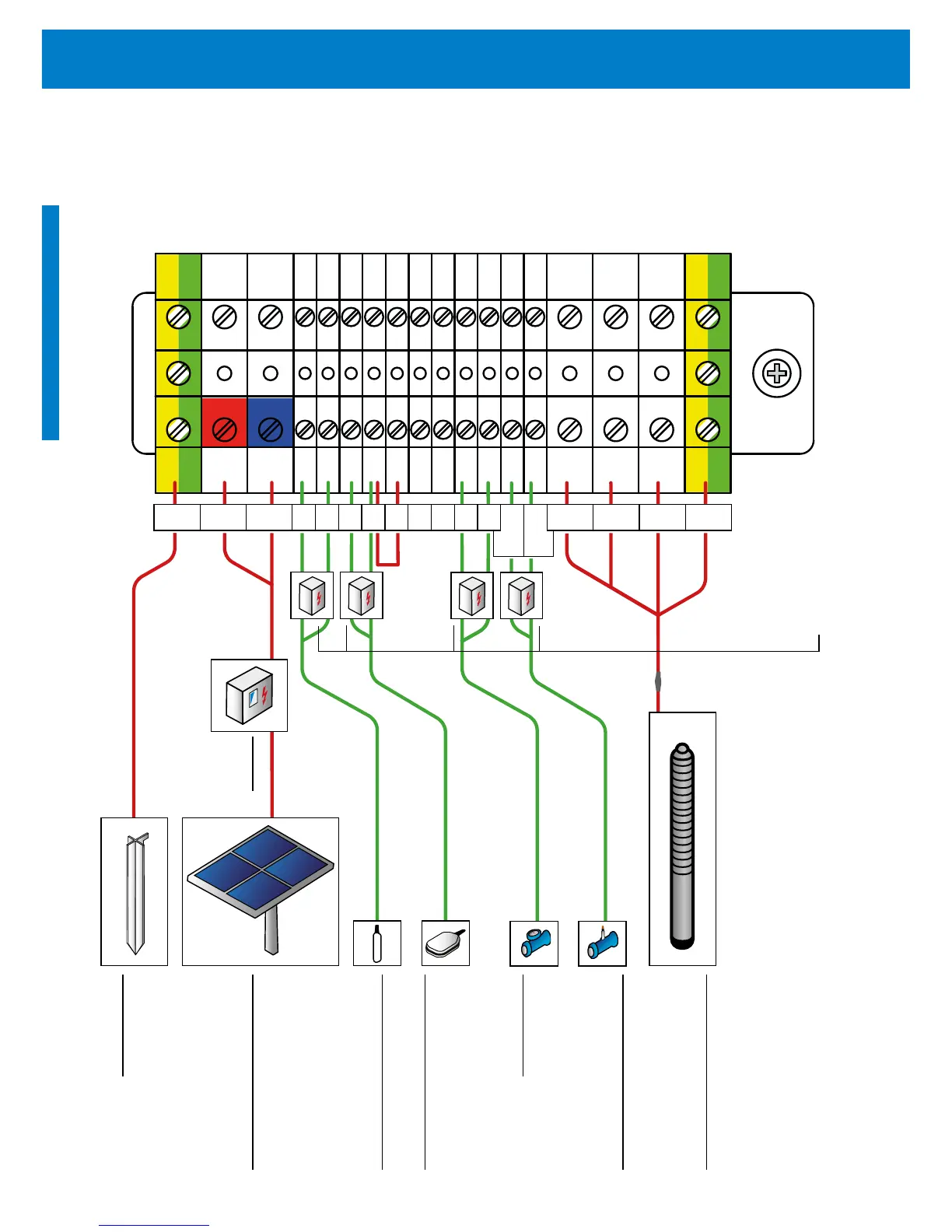

Figure 7: Terminal wiring example PS600 to PS4000
GND + 1 2 3 4 5 6 7 8 9 L1 L2 L3 GND
10 11
PV generator float switch pumpwell probe
surge protector
PV disconnect
grounding rod
pressure sensor
water meter
26 Controller Installation
