Wiring the doorbell
8
To wire the doorbell:

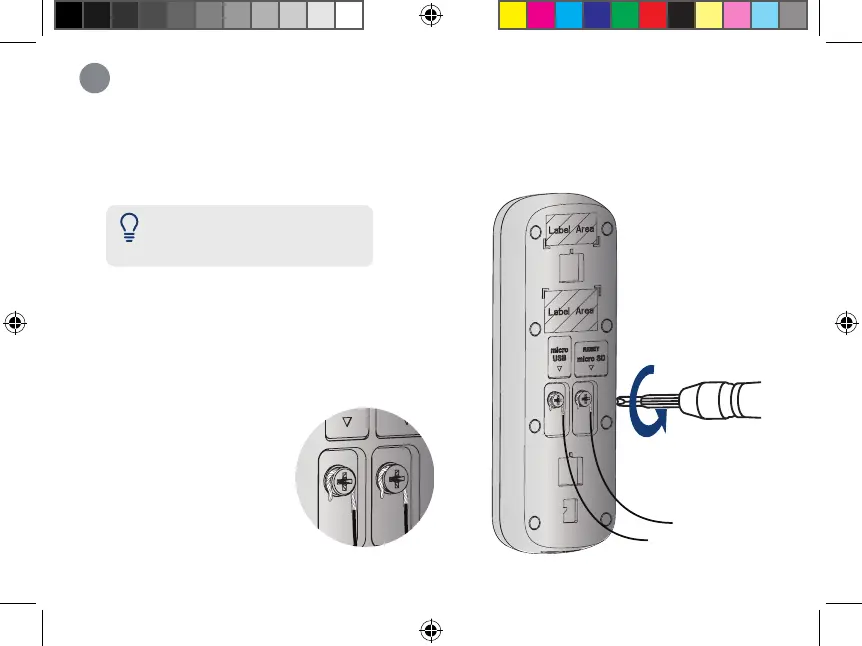

1. Loosen the power port screws of the
doorbell with a Philips-head screwdriver.
Figure 2
Figure 1
2. Loop the power wires underneath the
power port screws (see Figure 1).
3. Tighten the power port screws to secure
the power wires (see Figure 2).
Note: Do not fully remove the
power port screws.
