List of parts
In box A:
Assembled middle part and a second box

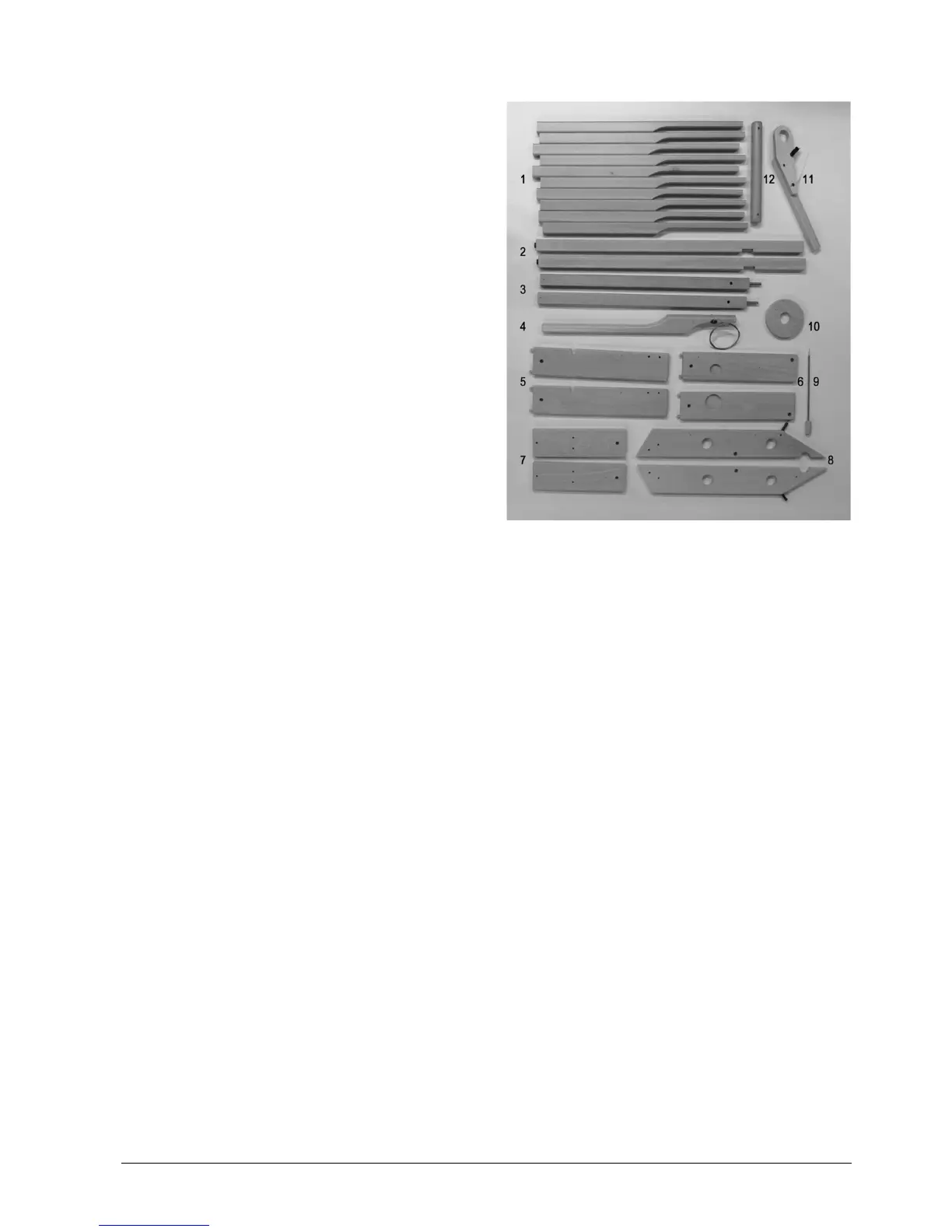

containing, see picture:
1. 10 treadles
2. 2 beater supports (L=R)
3. 2 floating arms (L=R)
4. brake handle
5. 2 base sides (L+R)
6. 2 middle side pieces (L+R)
7. 2 top side pieces (L=R)
8. 2 warp beam supports (L+R)
9. locking pin
10. brake disc
11. cloth beam lever
12. beater handle
Not shown on the picture:
− hardware bags 1, 2, 3, 4, 5 and extra.
− 54 long and 54 short tie-up cords for the
treadles.
− 8 x 100 Texsolv heddles 39 cm.
In box B:
• lower reed holder
• upper reed holder
• cloth beam
• warp beam
• breast beam
• back beam and foot rail (attached to the
middle part in box A)
• shelf bottom
• reed (attached to the lams in Box A)
• 2 apron bars
• 2 cross sticks
• 16 warp sticks
