5

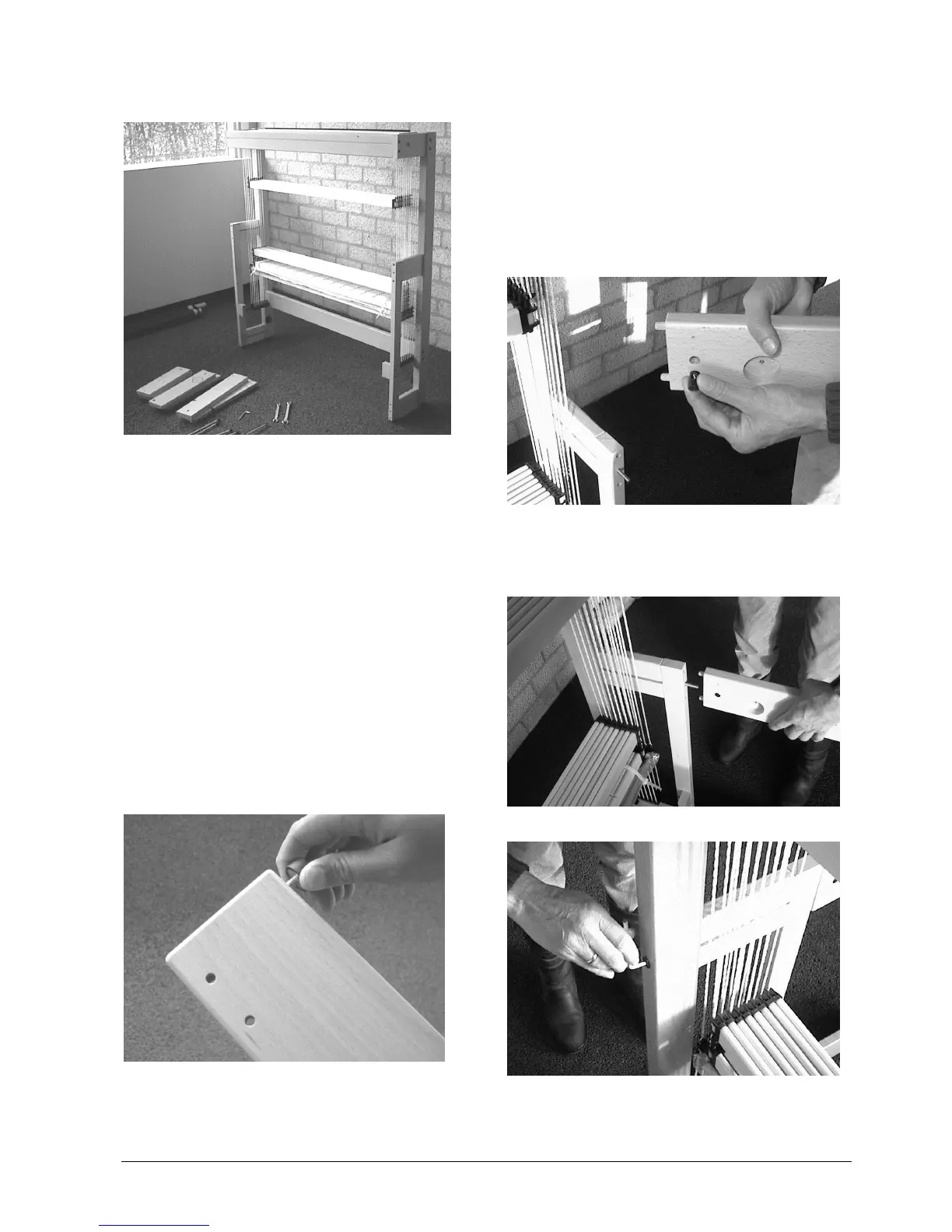

Assembly of the Spring
Place the already assembled middle part of the
loom, with its black buffers on the floor. Don’t
worry about the look of the top side pieces; they
are attachments to keep parts in place and will
be replaced during assembly.
Open hardware bag 1:
− a pz2 cross head screwdriver
− wrenches 10 en 13 mm
− socket-head screw wrench
− 2 buffers
− 2 screws 4 x 25 mm
− 4 threaded ends M6 with a socket nut and a
barrel nut
− 6 screws 5 x 50 mm
− bracket
− 2 carriage bolts M6 x 100 mm with washer
and wingnut
− 2 screw eyes
Screw the buffers onto the bottom side of both
base side pieces.
Mount the base and the middle side pieces onto
the middle part:
These rails are marked A, B, C and D, which
indicates where they are to be mounted onto
the middle part.
Unscrew the barrel nuts from four of the
threaded ends, but leave the socket-head nuts
on. Insert these threaded ends from the back
side through the holes in the middle part, where
the side pieces have to be assembled.
Insert the barrel nuts into the holes of the side
pieces.
The barrel nuts have to face the inside of the
loom.
Fasten the side parts with the socket-head
screw wrench.
