LOVATO ELECTRIC ATL800 User Manual

Doc: I435GB04_17.docx 12/07/2016 p. 25 / 31
Command menu
 The command menu is used to perform occasional operations, like resetting measurements, counters, alarms etc.
 If the advanced access password was entered, the command menu can also be used to perform automatic operations useful for configuring the instrument.
 The following table shows the functions which are available with the command menu divided according to the required access level.
CODE CONTROL ACCESS LEVEL DESCRIPTION
C01 RESET MANTENACE HOURS 1
A
DVANCED
Reset maintenance interval hours of the breaker 1.
C02 RESET MANTENACE HOURS 2
A
DVANCED
Reset maintenance interval hours of the breaker 2.
C04 RESET MANTENACE COUNTER 1
A
DVANCED
Reset maintenance interval operations of the breaker 1.
C05 RESET MANTENACE COUNTER 2
A
DVANCED
Reset maintenance interval operations of the breaker 2.
C07 RESET GENERIC COUNTERS CNTX USER
Resets generic counters CNTx.
C08 RESET LIMX USER
Reset limits LIMx variable status.
C09 RESET HOURS SOURCE 1
A
DVANCED
Reset hours counter of load supplied by source 1.
C10 RESET HOURS SOURCE 2
A
DVANCED
Reset hours counter of load supplied by source 2.
C12 RESET HOURS BREAKER 1
A
DVANCED
Reset hours counter breaker 1 closed.
C13 RESET HOURS BREAKER 2
A
DVANCED
Reset hours counter breaker 2 closed.
C15 RESET OPERATION BREAKER 1
A
DVANCED
Reset breaker 1 operations counter.
C16 RESET OPERATION BREAKER 2
A
DVANCED
Reset breaker 2 operations counter.
C18 RESET EVENTS LIST
A
DVANCED
Resets the list of historical events.
C19 SETUP TO DEFAULT
A
DVANCED
Resets all the parameters in the setup menu to the default values.
C20 BACKUP SETUP
A
DVANCED
Copies the parameters currently set to a backup for restoring in the future.
C21 RESTORE SETUP
A
DVANCED
Transfers the parameters saved in the backup memory to the active.
settings memory.
C22 FORCE I/O
A
DVANCED
Enables test mode so you can manually energize any output.
Warning! In this mode the installer alone is responsible for the
output commands
C23 RESET A03/04
A
LARMS
A
DVANCED
Restores the opening and closing command of the commutation devices
after generating alarms A03 – A04.
C24 SIMULATE LINE FAILURE
A
DVANCED
The device moves to AUT mode and simulates the lack of the priority
source for one minute. It then switches the load with the automatic
procedure as programmed.
C25 RESET PLC MEMORY
A
DVANCED
Reset PLCx variable status.
Installation
 ATL800 is designed to be flat panel mounted. Frontal protection of IP65 is guaranteed with correct assembly and optional sealing.
 Insert the system in the panel hole making sure that the seal, if present, is correctly positioned between the panel and instrument frame.
 Make sure that the customisation label is not folded under the seal, which would compromise sealing. The label must be positioned correctly inside the panel.

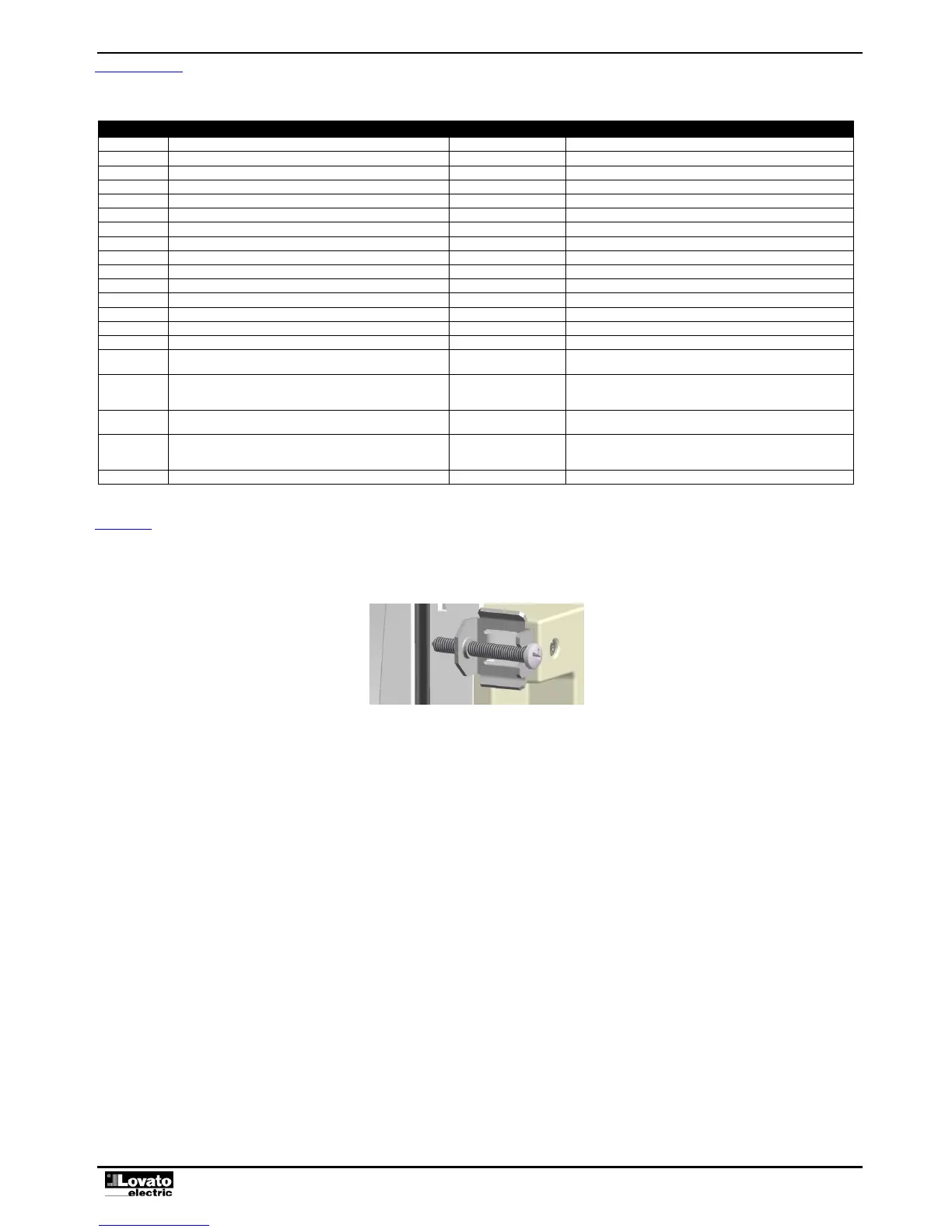

 In the panel, for each of the four fixing clips, place the metallic clip in the hole on the sides of the container and then move it backwards to insert the hook in the seat.
 Repeat the operation for the four clips.
 Tighten the fixing screw with a maximum torque of 0.5Nm.
 If the device must be disassembled, loosen the four screws and reverse the order.
 For electric connections, refer to the connection diagrams shown in the specific chapter and the requirements shown in the technical features table.
