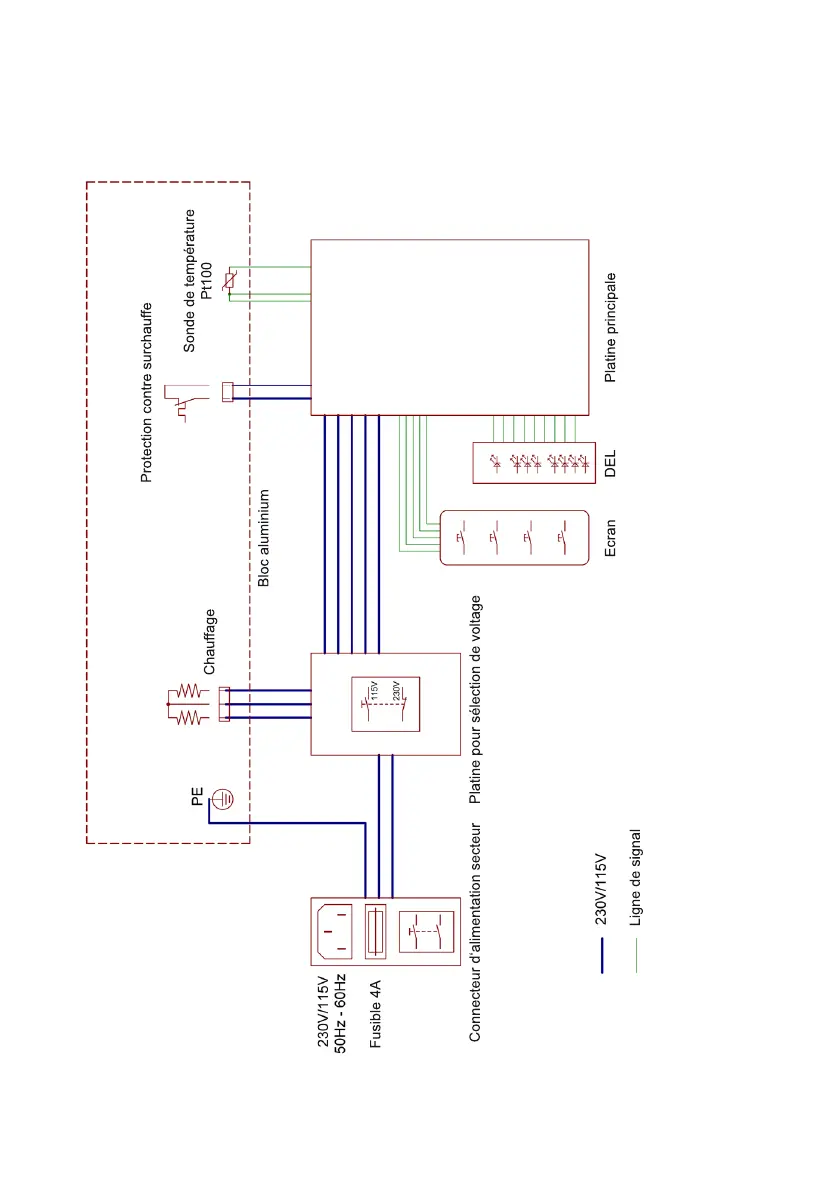

8. Diagramme de connexion
Protection contre surchauffe
Sonde de température
Pt100
Bloc aluminium
Fusible 4A
Platine pour sélection de voltageConnecteur d‘alimentation secteur
Ligne de signal
Ecran DEL Platine principale
Chauffage
