Notices:

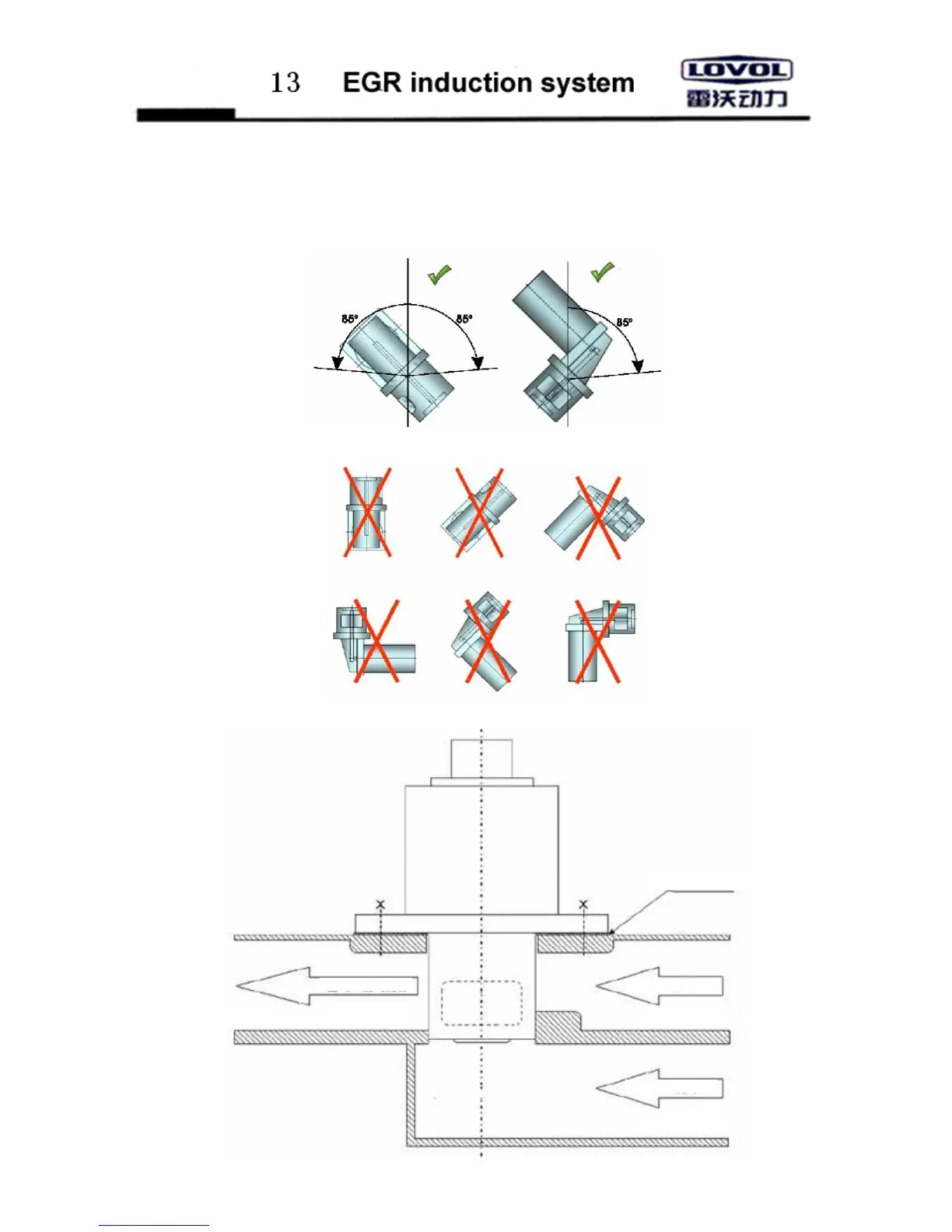

In order to avoid water accumulation in valve inside EGR, the direction of the inlet of the inner valve of valve must
face downward as the lowest point. The valve must be installed within the +/-85
o
relative to perpendicular direction.
See the figure.
Wrong installation:
EGR valve arrangement diagram:
13.08
heat conduction gasket
Mixture of air and exhaust gas
air
exhaust gas
