7 Second Tier
4
ASSEMBLING
SECOND TIER
ROOF CONTINUED

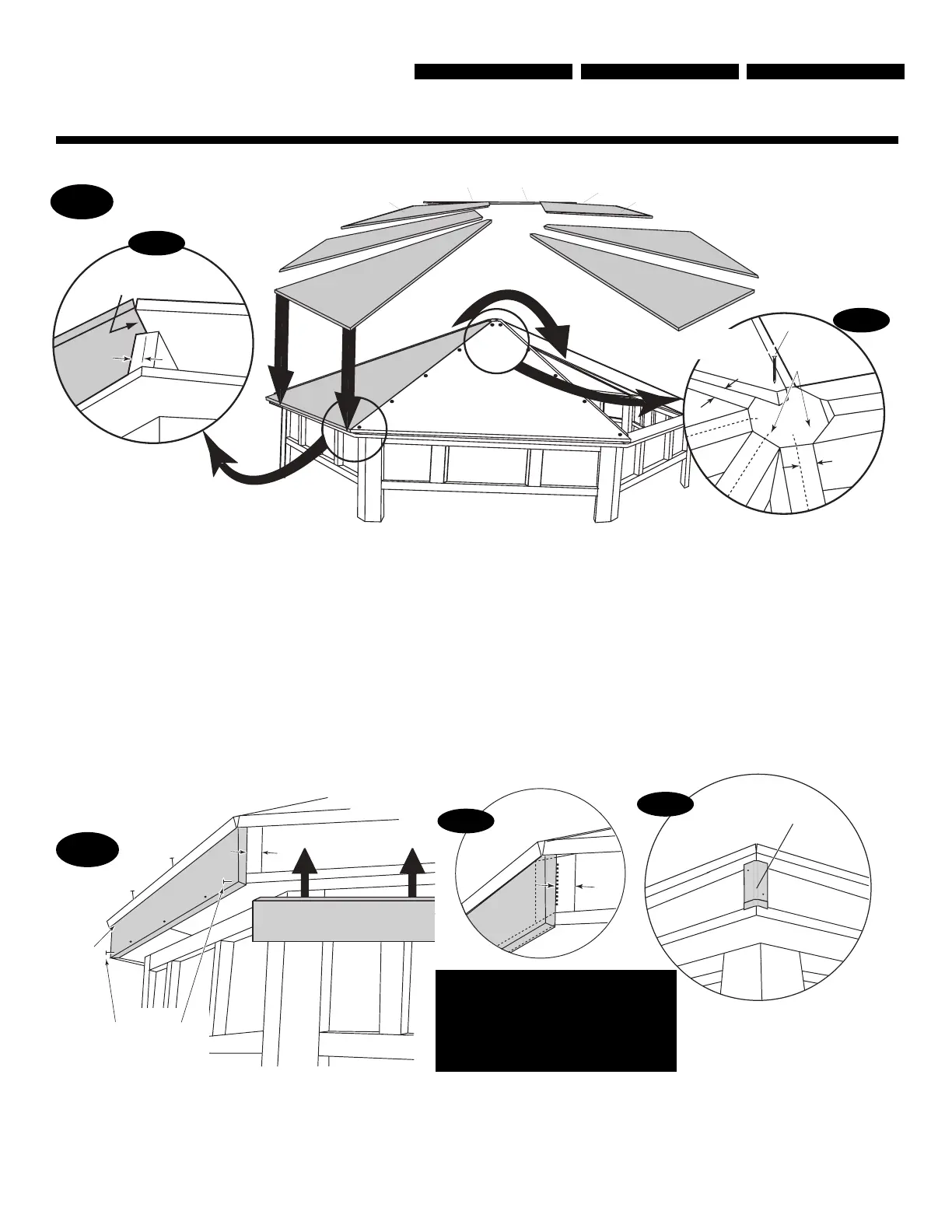

4-A: Along each Rafter, place a mark 3/4” in on each Rafter to help center Roof Panels as shown in Fig. 1 and Fig. 2.
Set first Roof Panel in place on top as shown in Fig. 2 and temporarily nail with one 2” nail at the top of Roof Panel.
Continue with remaining roof panels. Shift slightly left to right to line up bottom edge of roof panels. Install all remaining
Roof Panels, only temporarily nailing in place, with two 2” nails at bottom corners. Once all Roof Panels are in place
and fit properly on your Second Tier, then nail through Roof Panel into Rafters every 8” with 2” nails.
4-A
1
2
3
4
8
9
10
7
2
2" Nails every 8"
once all Roof Panels are in place
3/4"
3/4"
3/4"
3/4"
Marks
2" Nail
Center Panels on or in
between 3/4" Marks
Roof Panels Should
Overhang Rafter End
Square
Square
56
Fig.1
Fig.2
3/4"
Fascia
Fascia
Fascia
butts up
to Roof
Panel
Rafter End
Rough sawn
Cedar side
Two-1-1/2"
Finish Nails to hold
all Fascia in place
then, once all
Fascia in place,
add five more
1-1/2" Finish Nails.
4-B
Fig.1
Fascia Fascia
Roof Panel
Roof Panel
Attach Fascia Trim with
two 1-1/2" Finish Nail
4-B: Place a mark 3/4” in on end of Rafter as shown in Fig. 1. Center Fascia on Wall Panels in between corners and 3/
4” marks and butt Fascia to bottom of Roof Panels. Tack on the Fascia to the Gussets at each corner with one 1-1/2”
Finish Nails. Continue attaching remaining pieces of Fascia for Second Tier. Once all Fascia are in place, finish along
bottom edge nailing with three more 1-1/2” Finish Nails and two nails through Roof Panel into Fascia.
Attach Fascia Trim over seam where two Fascia panel pieces meet and attach with two 1-1/2” Finish nails through Fascia
Trim into Fascia Panel as shown in Fig. 2. Pre-drilling is recommended.
Fig.2
Note: Pre-drill to eliminate
splitting the wood
when nailing Fascia
and Fascia Trim.
❑ 8 pcs. Triangular Roof Panels
❑ 2 pcs. Square Roof Panels
❑ 8 pcs. Fascia
❑ 2 pcs. Fascia long
❑ 10 pcs. Fascia Trim
PARTS LIST 10’ GAZEBO
❑ 10 pcs. Triangular Roof Panels
❑ 2 pcs. Square Roof Panels
❑ 10 pcs. Fascia
❑ 2 pcs. Fascia long
❑ 12 pcs. Fascia Trim
PARTS LIST 12’ GAZEBO
❑ 12 pcs. Triangular Roof Panels
❑ 2 pcs. Square Roof Panels
❑ 12 pcs. Fascia
❑ 2 pcs. Fascia long
❑ 14 pcs. Fascia Trim
PARTS LIST 14’ GAZEBO
