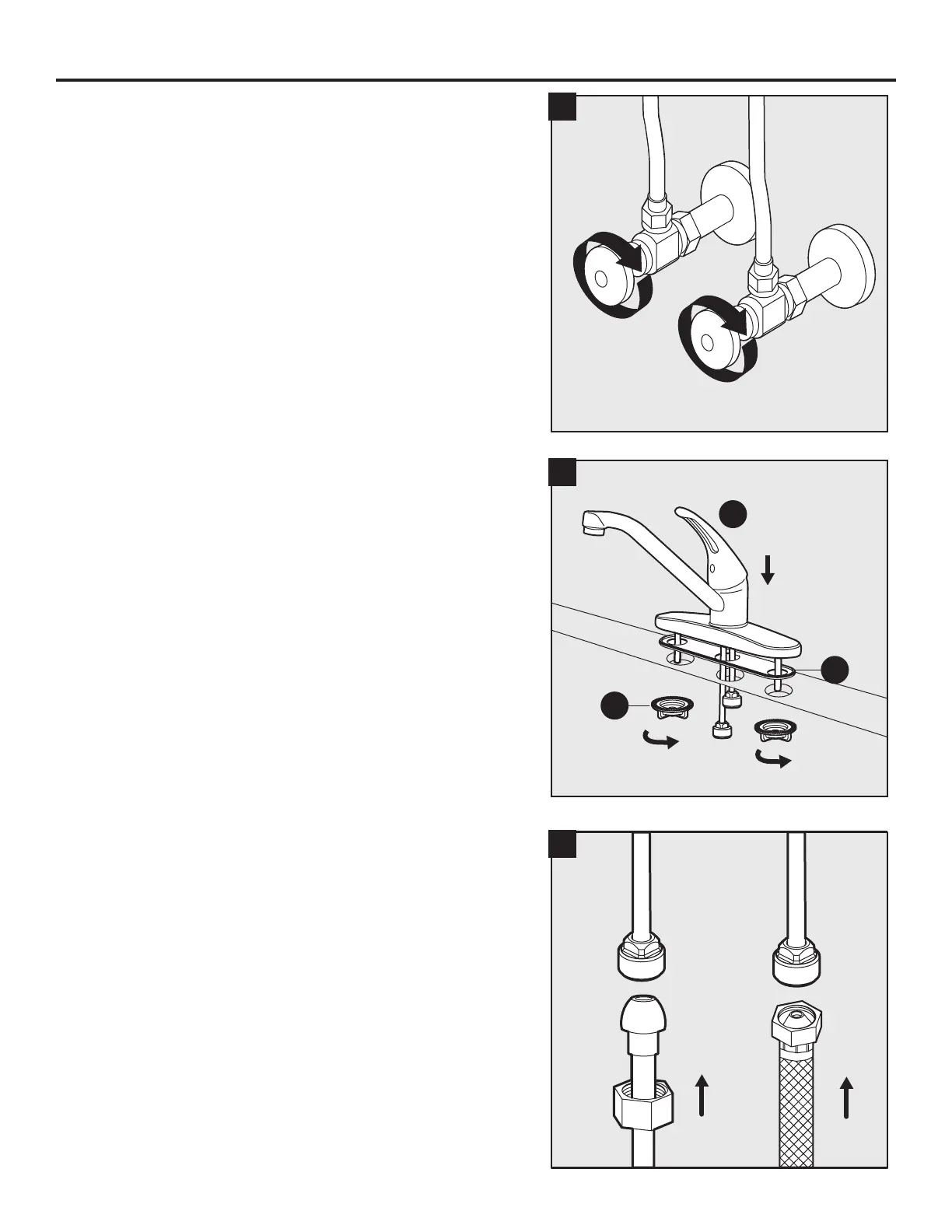

ASSEMBLY INSTRUCTIONS

3. Connect a 1/2 in. IPS faucet connector or

coupling nuts (not included) with 3/8 in.

O.D. ball-nose risers (not included) to the

water supplies underneath the sink using

wrenches (not included).

Note: Refer to the local plumbing codes for

permissible types of water supply

connectors.

2. Install the faucet:

a. Remove the preassembled mounting

nuts (B) from the facuet (A) and place

the faucet (A) in position on the sink.

b. From under the sink, thread the

mounting nuts (B) onto the faucet (A).

c. Tighten the mounting nuts (B).

1. Shut off the water supply and remove the

old faucet.
