LP LP1501 - Step 15: Secure Housed Cable with Sheath Stopper; Step 16: Attach Black Cable Sheath and Tighten Nut

Figure 15.1
Figure 16.1
Figure 15.3
Figure 16.3
Figure 15.2
Figure 16.2

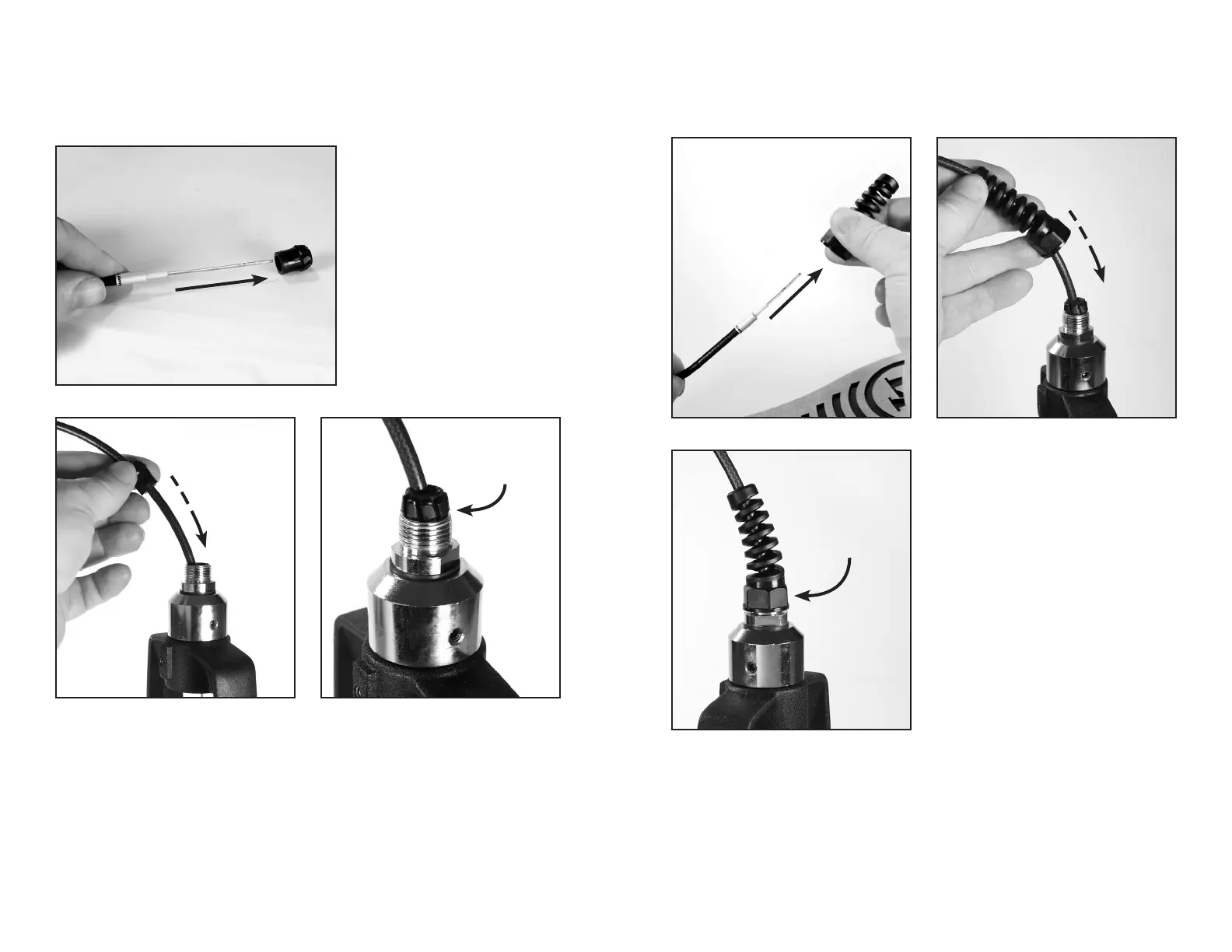

STEP 15
Stand the footboard frame upright. Insert the housed cable into the smooth end of the sheath stopper
(see Figure 15.1). Then, slide the stopper all the way down the cable (see Figure 15.2). Push the
smooth end of the stopper into the screw top, until the notches prevent it from going any further (see
Figure 15.3).
STEP 16
Insert the housed cable into the wide end of the black cable sheath (see Figure 16.1). Slide the sheath
all the way down the cable (see Figure 16.2), and twist the black nut onto the screw fitting (see Figure
16.3). Use the wrench to firmly tighten the nut.
12 13
Insert cable
Slide
Notches will catch here
Insert cable
Slide
Tighten nut
