Figure 17.1
Figure 18.1
Figure 18.3
Figure 17.2
Figure 18.2
Figure 18.4

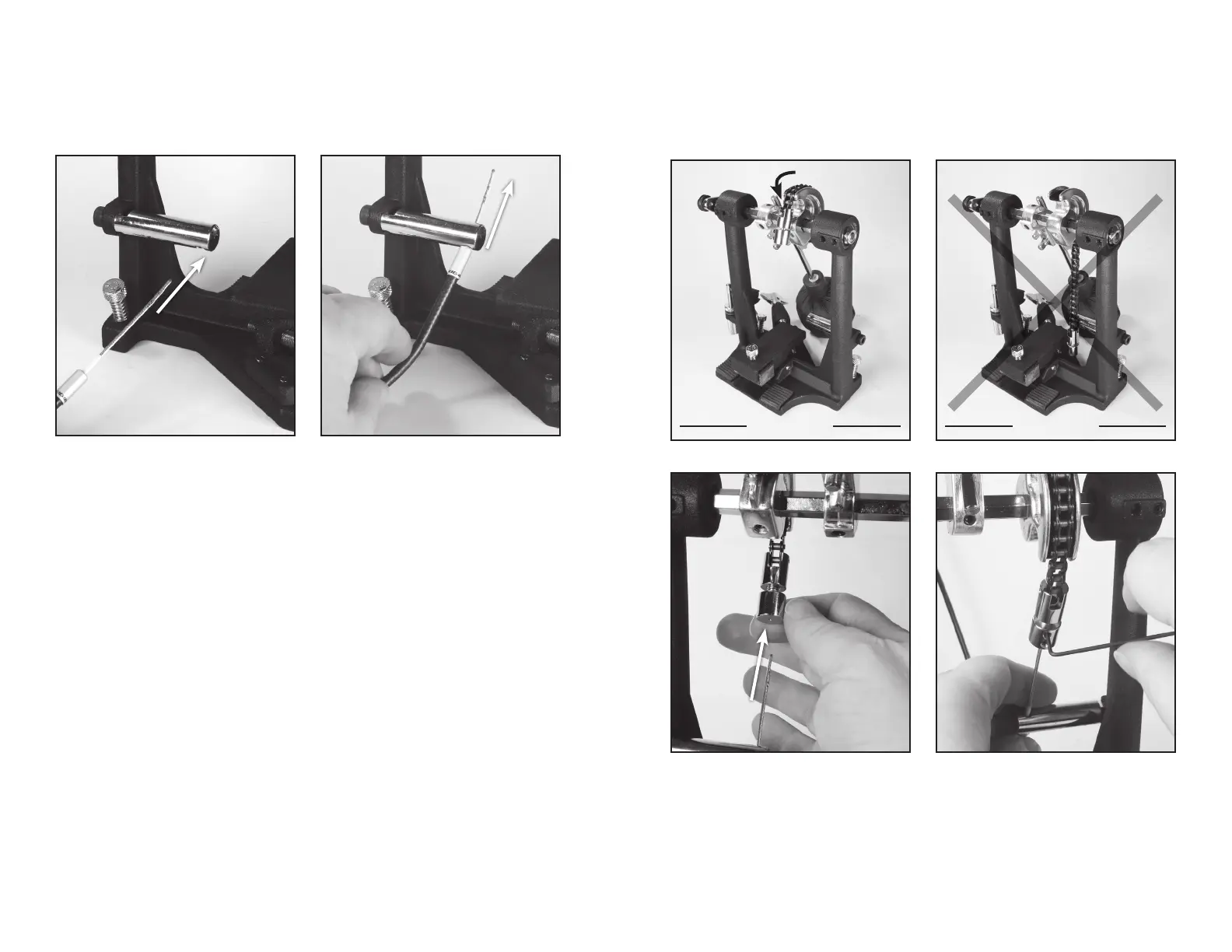

STEP 17
Stand the beater frame upright. Insert the housed cable into the underside hole of the angle guard, as
shown in Figure 17.1. Maneuver the housed cable so that the silver fitting at the end slides into the hole
of the angle guard and stops. Pull only the steel cable with the plastic inner housing through the angle
guard and out the top hole. The end result should look like Figure 17.2. IMPORTANT: leave a little slack
at the other end of the cable, where it attaches to the footboard chain.
STEP 18
Rotate the cam and beater to the proper angle, so that the beater chain is laying OVER THE TOP of the
cam. (In the photos below, Figure 18.1 is correct, Figure 18.2 is incorrect.) Thread the steel cable into
the bottom hole of the cable attachment barrel, as pictured in Figure 18.3. Push the cable in as far as
it will go. Use the hex key to tighten the set screws on the attachment barrel. The cable should now be
locked in place and the end result should look like Figure 18.4.
14 15
Insert cable
Pull through
Chain hanging over cam Chain hanging straight down underneath cam
CORRECT INCORRECT
Insert cable
Tighten set screws
