LRP S8 BXe - Page 16

33
34

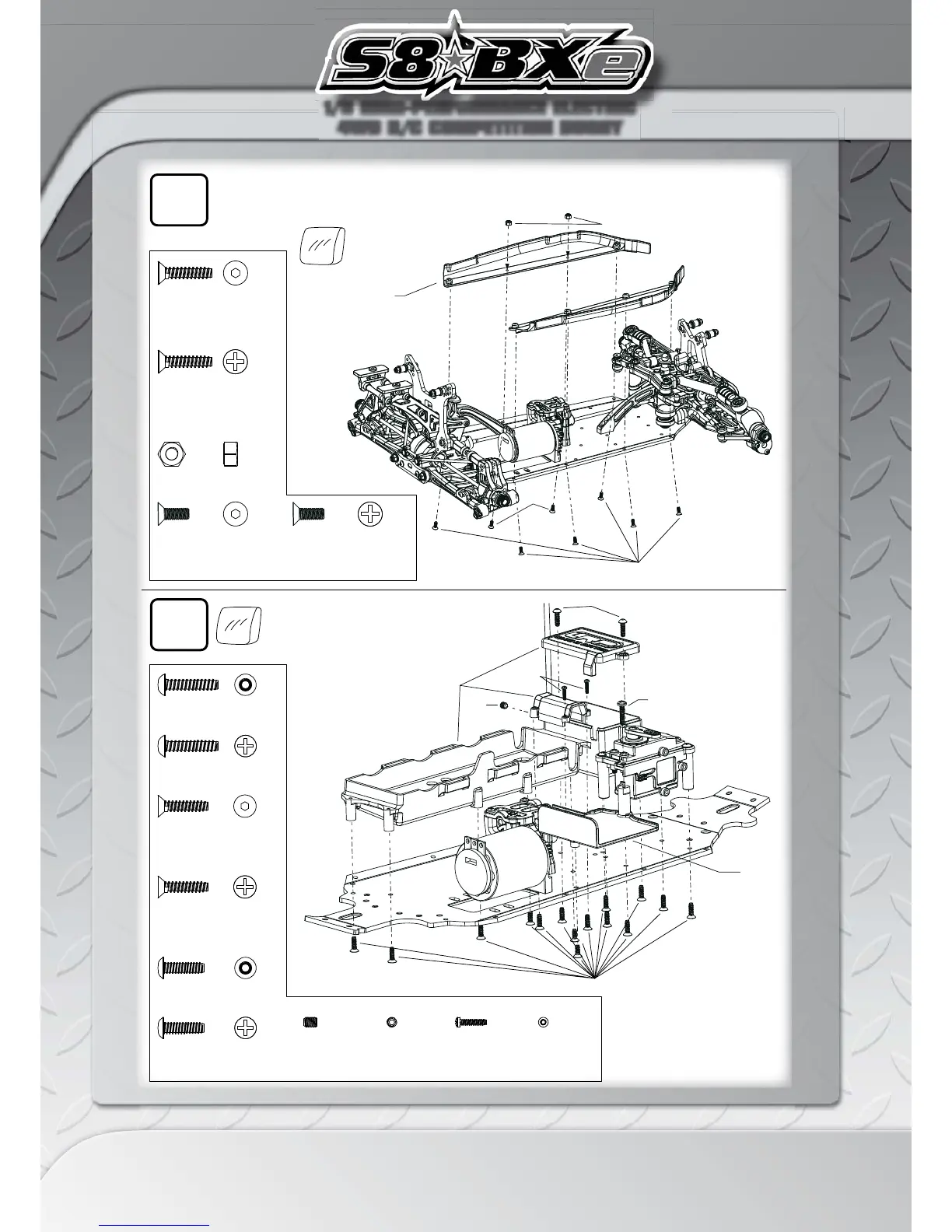

ASSEMBLY OF THE CHASSIS SIDE GUARDS
EINBAU DES CHASSISSTEINSCHLAGSCHUTZES
Bag 7+9
Tüte 7+9
Bag 7+9
Tüte 7+9
M3x4mm Set Screw x1
Madenschraube
M2x8mm Button Head Screw x2
Linsenkopfschraube
M3x4
132450
132450
M3x12
M2x8
M3x10
Team:
M3x10mm Countersunk x6
TP Screw
Senkkopf-
schneidschraube
RTR:
M3x12mm TP Screw x1
Schneidschraube
Team:
M3x12mm TP Screw x1
Schneidschraube
RTR:
M3x10mm TP Screw x2
Schneidschraube
Team:
M3x10mm TP Screw x2
Schneidschraube
RTR:
M3x10mm Countersunk x15
TP Screw
Senkkopf-
schneidschraube
M3x10
Team:
M3x10mm Countersunk x15
TP Screw
Senkkopf-
schneidschraube
Team:
M3x8mm Countersunk x2
Screw
Senkkopfschraube
132012
3mm
M3x10
M3x8
3mm Lock Nut x2
Stoppmutter
RTR:
M3x10mm Countersunk x6
TP Screw
Senkkopf-
schneidschraube
RTR:
M3x8mm Countersunk x2
Screw
Senkkopfschraube
S. 16
S. 16
