Mounting

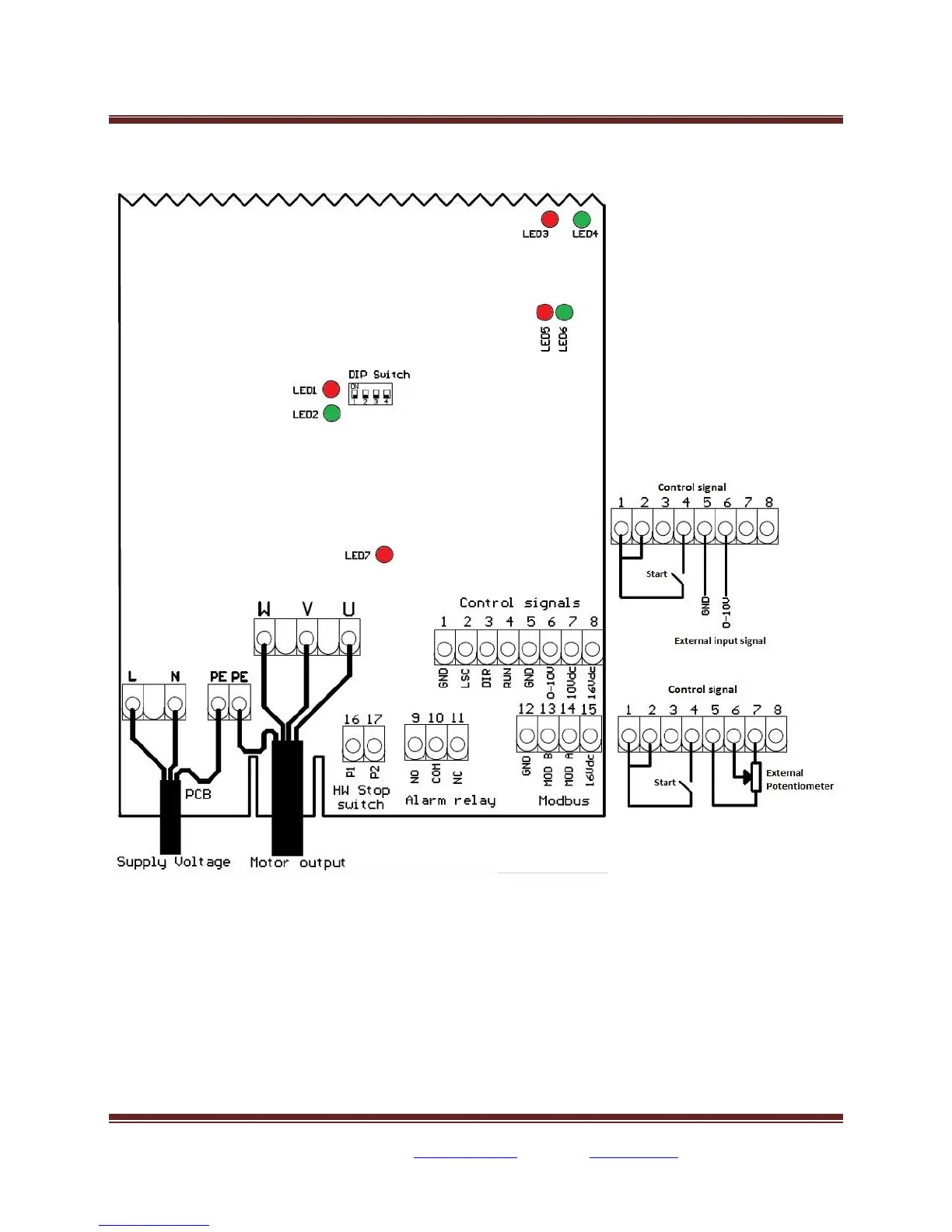

Mounting instruction for ES1045D PCB
Note:
If thermal switch is not used
shorten connector 1 & 2.
If the thermistor is needed
connect to connector 1 & 2 and
setup through ModBus for
thermistor use.
If HW Stop Switch not needed
shorten connector 16 & 17.
