HOW TO CONNET HYDRAULIC LINE
PART 4. Backhoe Hydraulic
STEP 1.
※ Hydraulic
Line

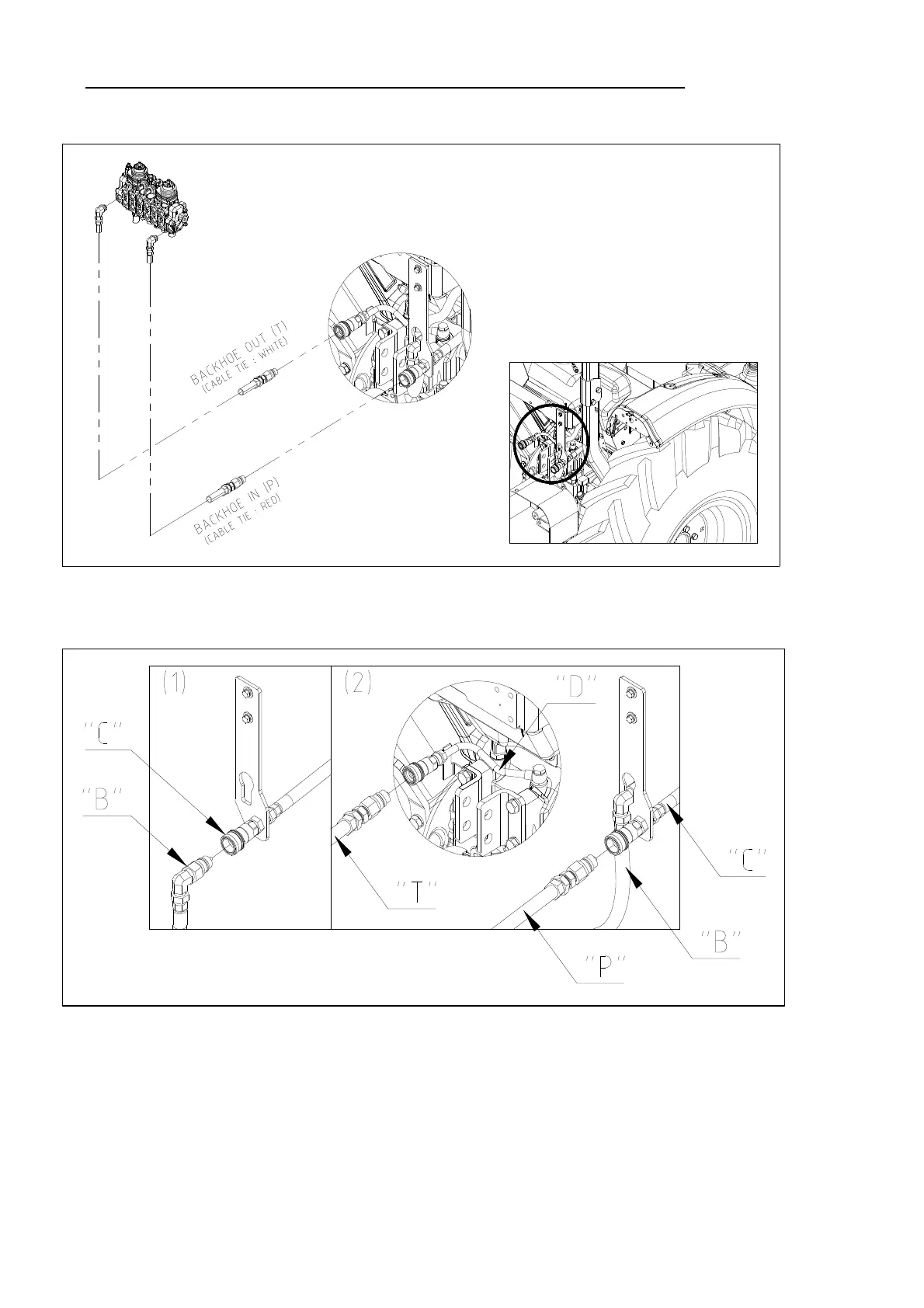

Connect the Backhoe hydraulic hoses P and T as shown in drawing.
- Loader only : Connect B to C.
- Loader and Backhoe : Disconnect B from C and make free hose B.
Connect backhoe P to C and connect backhoe T to D.
- 33 -
33
35
Table of Contents
Table of Contents
5
Safety Precautions
7
Safety Decals
10
Backhoe Specifications
13
Introduction
15
Tractor Preparation
16
Backhoe Operation
17
Backhoe Removal
24
Backhoe Installation
27
How to Connet Hydraulic Line
31
Lubrication and Maintenance
35
Bucket Service
39
Trouble Shooting
40
Hydraulic System Schematic
44
Torque Tightening Chart
45
Parts Iilustrations
46
General Information
46
IMBH10. Subframe
47
I3030/I3030H/I3040/I3040H
47
Xr3032/Xr3032H/Xr3037/Xr3037H
49
R4010/R4010H/R4020/R4020H
51
Xr3135/Xr3135H/Xr3140/Xr3140H
53
Xr4040/Xr4040H/Xr4046/Xr4046H
57
Xr4140/Xr4145/Xr4150/Xr4155 Mt342/Mt347/Mt352/Mt357
59
Mt345E/Mt350E/Mt355E
61
IMBH20. Main Frame
63
IMBH21. Seat, Control(WALVOIL)
65
IMBH30. Swing Frame
67
IMBH40. Boom
69
IMBH50. Bucket, Dipperstick
71
IMBH60. Control Valve-WALVOIL SD6/6
75
IMBH61. Hydraulic Line
77
I3030/I3030H/I3040/I3040H
77
R4010/R4010H/R4020/R4020H
77
Xr4140/Xr4145/Xr4150/Xr4155 Mt342/Mt347/Mt352/Mt357
79
Mt345E/Mt350E/Mt355E
81
IMBH62. Hydraulic Control Fitting(WALVOIL)
87
IMBH70. Bucket Cylinder
91
IMBH71. Dipperstick Cylinder
93
IMBH72. Boom Cylinder
95
IMBH73. Swing Cylinder
97
IMBH74. Stabilizer Cylinder-LH
99
IMBH74. Stabilizer Cylinder-RH
101
IMG980. Decals
103
