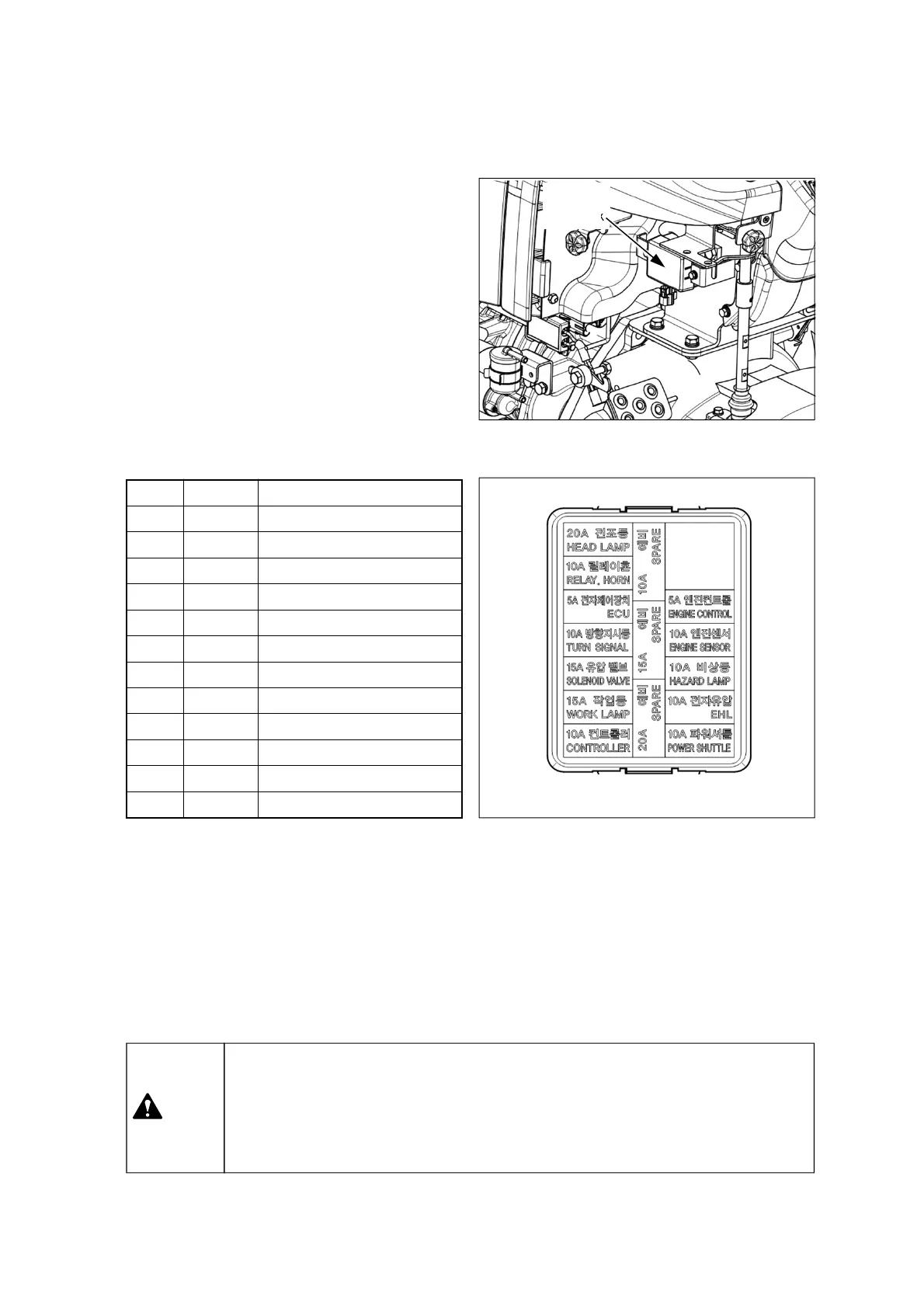

Fuse check and replacement
How to change the fuse
1. Remove the fuse box cover.
2. Check each fuse and remove the damaged one.
3. Replace it with a new one of the same capacity
as the damaged fuse.
Chassis fuse box is installed inside the front
console in the right figure.
The capacity and function of each fuse is
described on the fuse box cover.
(2) Fuse & Main fuse
▶
If the same function fuse is damaged repeatedly, contact your authorized local
dealer for check instead of using a substitute such as wire or aluminum foil.
▶
If using the substitute instead of the rated capacity fuse, it may cause a fire which
results in damage of the tractor or personal injury.
< Fuse box for chassis >
Chassis
fuse box
No. Fuse Descriptions
1 5A Engine control
2 10A Engine sensor
3 10A Hazard lamp
4 10A N/A
55A N/A
6 20A Head lamp
7 10A Relay, horn
85A ECU
9 10A Turn signal lamp
10 15A Solenoid valve
11 15A Work lamp
12 10A Controller
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
