5 -50
▶ If the main fuse is burn out often, contact your authorized local dealer in order to
check the electric system.
▶ Do not use a substitute instead of the rated genuine fuse. Do not connect electric
wires to the battery terminals directly. It may cause a fire and serious injury.

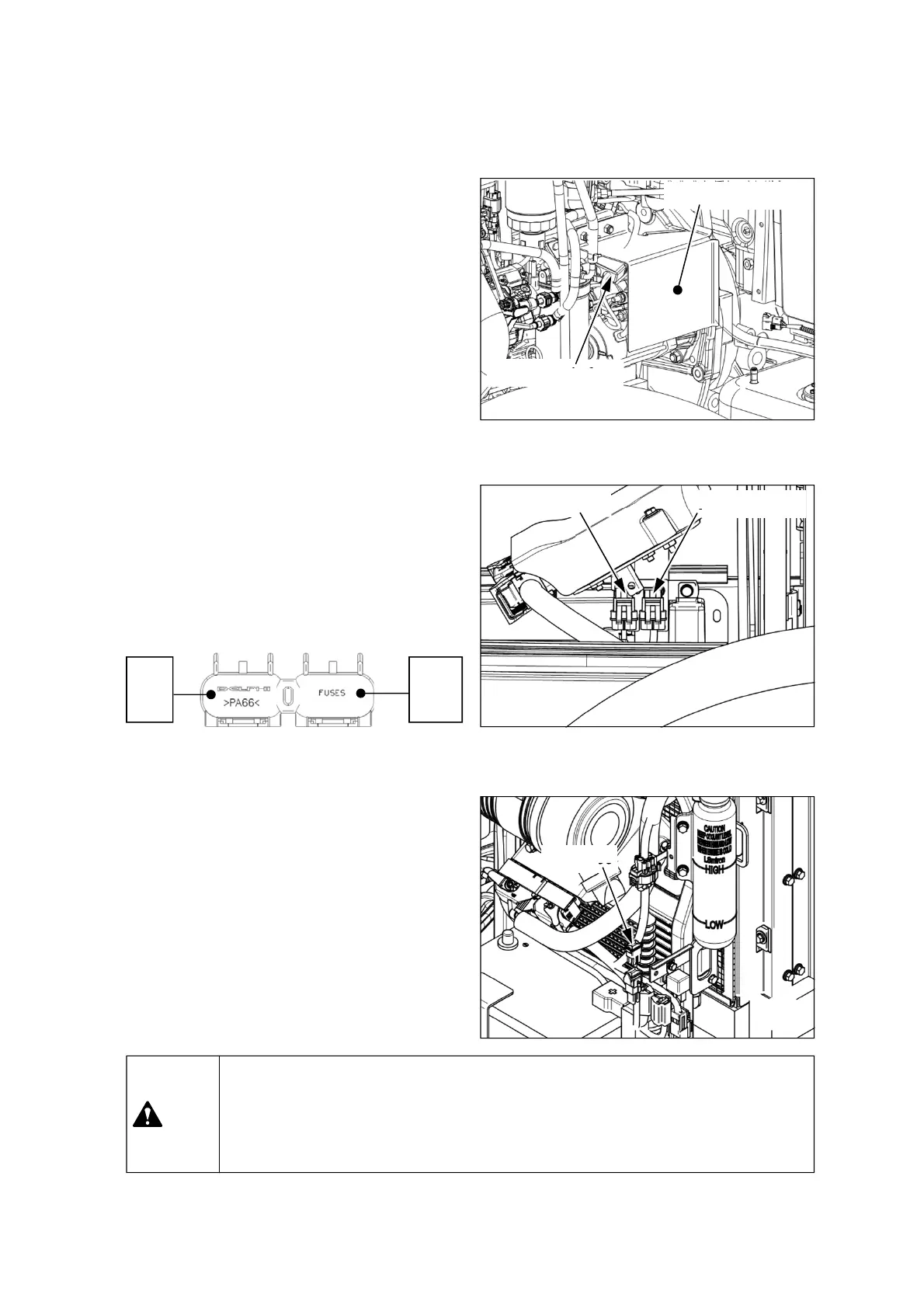

④ Main fuse
Main fuse is installed to the battery cable (+).
Remove the cover, and unscrew the bolt.
Pull out the main fuse for ECU. If necessary,
replace it with a genuine part.
Rated capacity : 100 A
The main fuse is an important part to protect the
total electric system of the tractor, if damaged,
check if there is a trouble in the electric system.
Contact your authorized local dealer for check.
Main fuse
Caution
② Chassis main fuse
Chassis main fuse is attached to the left side of
the engine, under the starter motor cover.
Remover the fuse box cover and pull out the
chassis main fuse. If necessary, replace it with a
genuine part. Rated capacity : 60 A
The chassis main fuse is an important part to
protect the electric system of the driver station
and lights. if damaged, check if there is a trouble
in the electric system. Contact your authorized
local dealer for check.
③ ECU main fuse & Fuel heater fuse
ECU main fuse and fuel heater fuse is installed to
the ECU harness to protect the ECU and fuel
heater circuit.
Remove the fuse cover, and pull out the fuse. If
necessary, replace it with a genuine part.
Rated capacity: ECU main fuse: 40 A,
Fuel heater fuse: 30 A
ECU
main
fuse
Fuel
heater
fuse
Fuel heater fuse
ECU main fuse
Starter motor cover
Chassis main fuse
