LOADER INSTALLATION

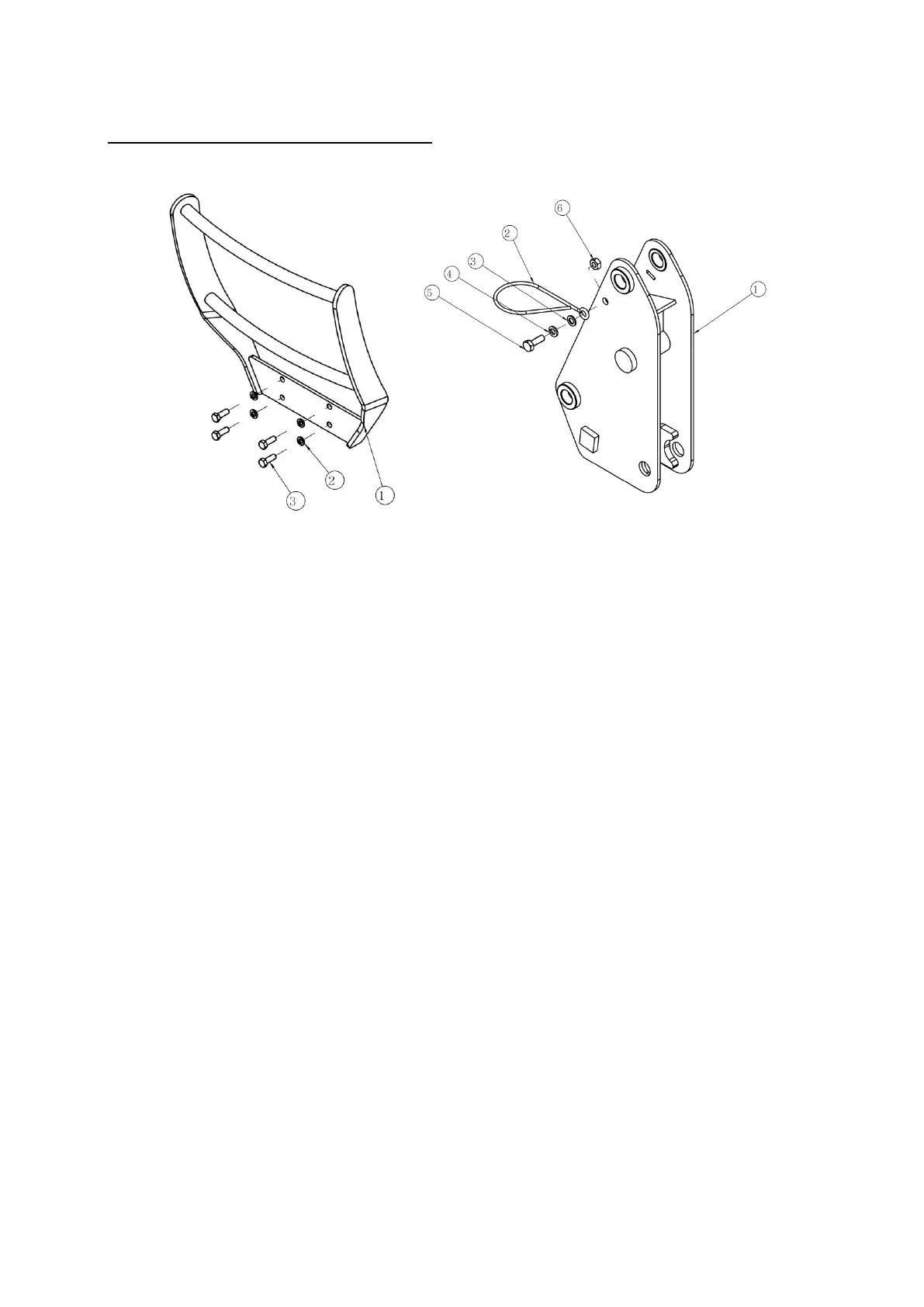

▶ Install Grille Guard
(1) BUMPER - 1EA
(2) SPRING WASHER M14 - 4EA
(3) BOLT M14x40Lx1.5P - 4EA
▶ Hose Guide
(1) COLUMN - 1EA
(2) HOLDER - 1EA
(3) PLAIN WASHER, M10 - 1EA
(4) SPRING WASHER, M10 - 1EA
(5) BLOT, M10x30L - 1EA
(6) NUT, M10 - 1EA
Verify that all mounting kit hardware has been torqued as specified before installing loader.
▶ Identify hardware size and grade.
▶ Refer to Torque Chart, page 24 and find correct torque for your hardware size and grade.
▶ Torque hardware to this specification unless otherwise specified.
▶ IMPORTANT NOTE: To keep mounting kit hardware from loosening during loader operation,
hardware must be torque to specifications.
