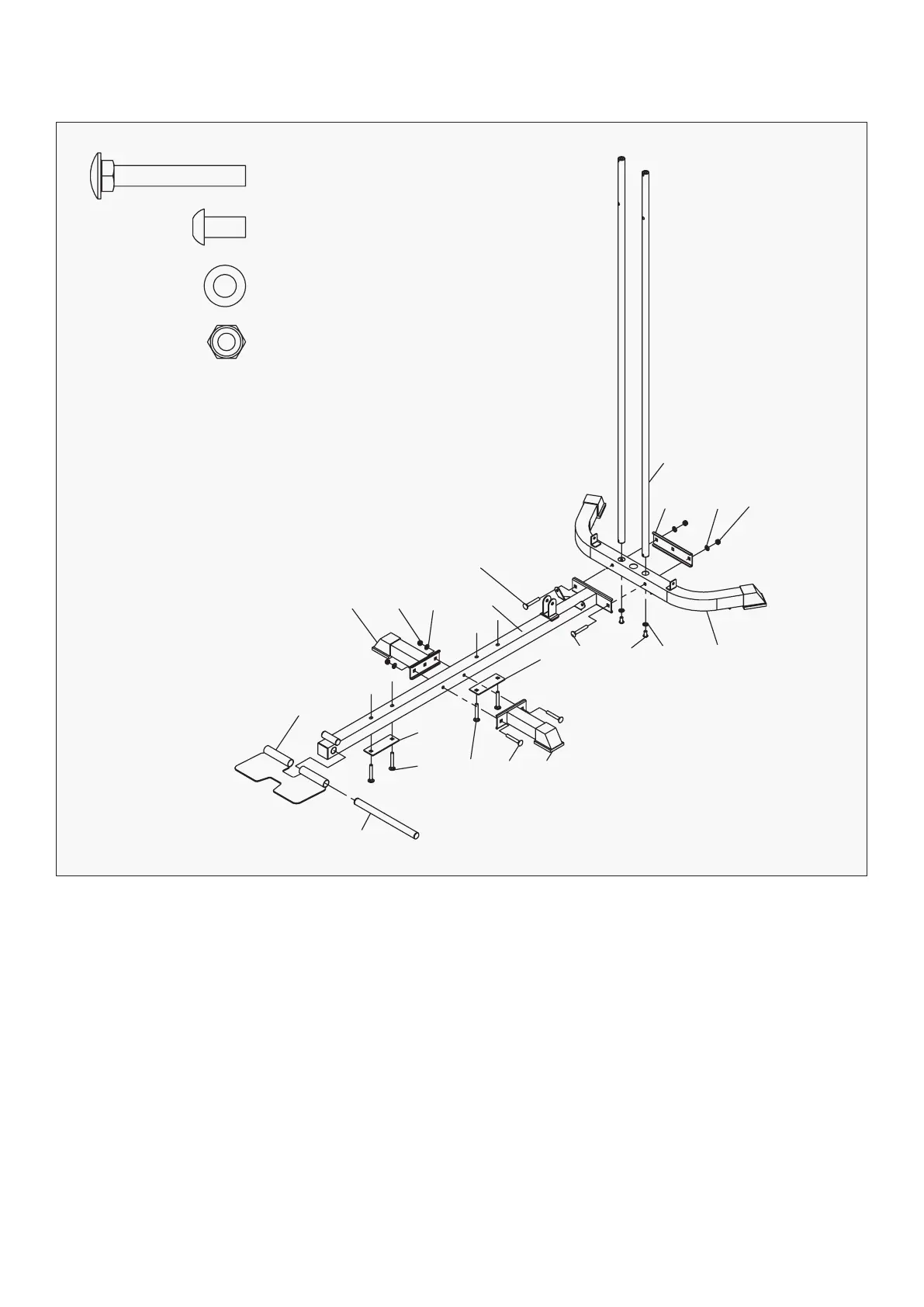

STEP 1
1. Connect the guide rod (#5) to the back patch (#2), fix with two bolts, Hexagon bolt M10*20 (#48) and
two gaskets Φ10 flat gasket (#55).
2. Connect the front patch (#1) to the rear patch (#2) with a 170mm connecting plate (#22), two bolted
horse-drawn bolts M10*70 (#47), two nuts M10 (#58) and two Φ10 gaskets (#55).
3. Connect two small patches (#3) to the front patch (#1) and fix them with two bolted horse-drawn
bolts M10*70 (#47), two nuts M10 (#58) and two Φ10 gaskets (#55).
4. Attach the pattern board (#4) to the front (#1) and fix it with a paddle pole (#20).
5. Fix two 110mm connectors (#21) under the front patch (#1) with four bolted carriage bolts M10*70
(#47).
IV. ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS |
#47 M10*70 8PCS
#48 M10*20 2PCS
#55 Ø10 6PCS
#58 M10 4PCS
5
22 55
58
2
55
48
47
21
34747
47
21
20
4
3 58 55
1
47
