LSI AVAGO SAS 9212-4i4e User Manual

Avago Technologies
- 6 -
LSI SAS 9212-4i4e PCI Express to 6Gb/s SAS HBA User Guide
October 2014
LSI SAS 9212-4i4e HBA Characteristics
Activity LED Header (J11). The LSI SAS 9212-4i4e HBA has a 4-pin, right-angle, 0.1-in. pitch header for driving
external activity LEDs.The 4-pin header connects to two LEDs, which indicate SAS activity on Port 0 and Port 1.
UART Connector (J4) The UART connector debug port requires a special cable and LSI support to gather detailed
input/output controller (IOC) status.
5.3 Physical Characteristics
The LSI SAS 9212-4i4e HBA is a 6.6-in. x 2.7-in., low-profile board. The component height on the top and bottom of the
LSI SAS 9212-4i4e HBA is in accordance with the PCIe specification. The following figure shows the board connectors.

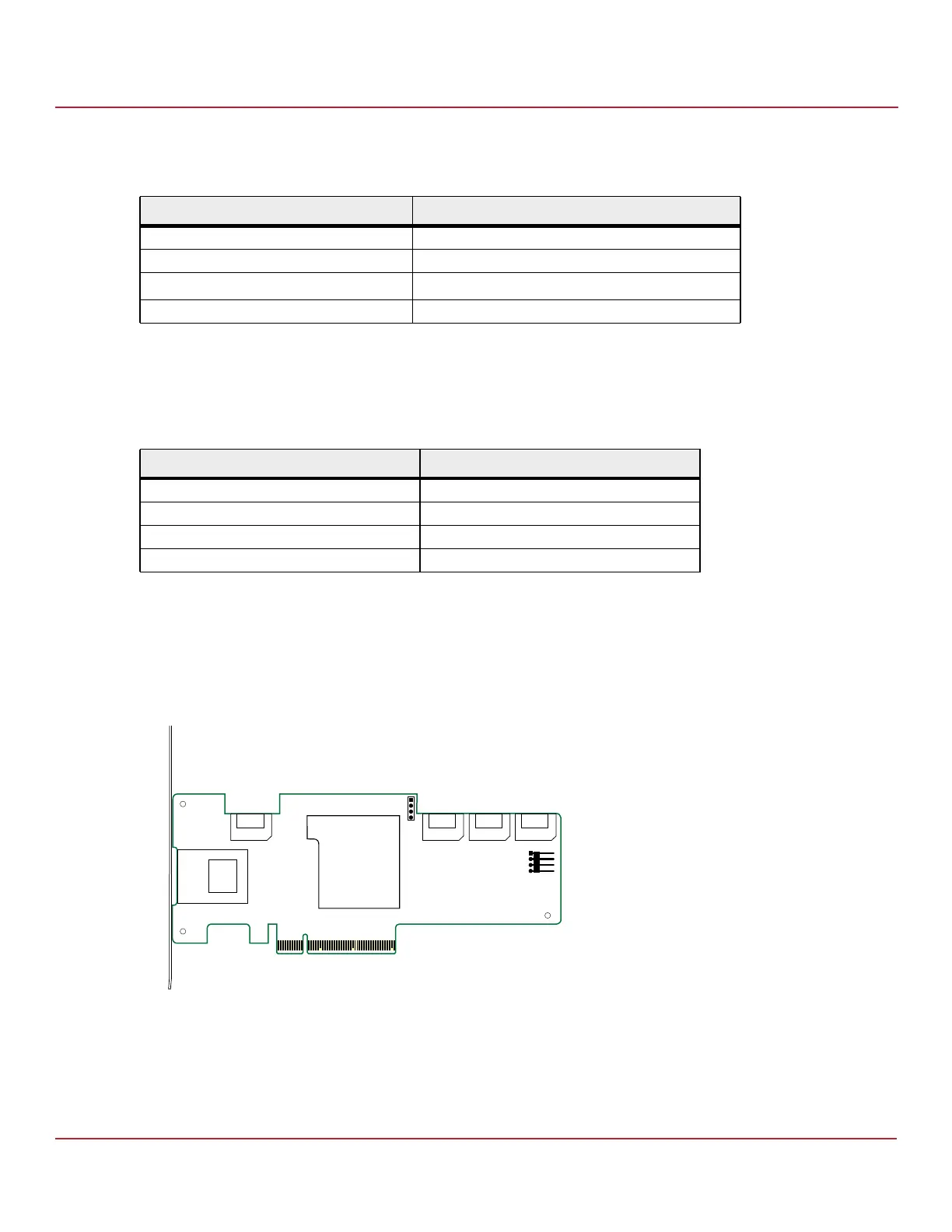

Figure 1 LSI SAS 9212-4i4e Board Layout
 J1: PCIe x8-lane board edge connector
 J4: UART connection
 J5, J6, J7, and J8: SAS internal connectors
Table 3 LSI SAS 9212-4i4e LED Header Pinout
Pin Function
1 3.3 V
2 Port 0
3
Port 1
a
a. Port 1 consists of the 7-pin SATA connectors.
4 3.3 V
Table 4 LSI SAS 9212-4i4e UART Pinout
Pin Function
1 UART_TX
2 Gnd
3 UART_RX
4 3.3 V
J5
J4
J6 J7
J8
J11
J1
J12
Port 0
3_00134-03
LSI SAS 2008
