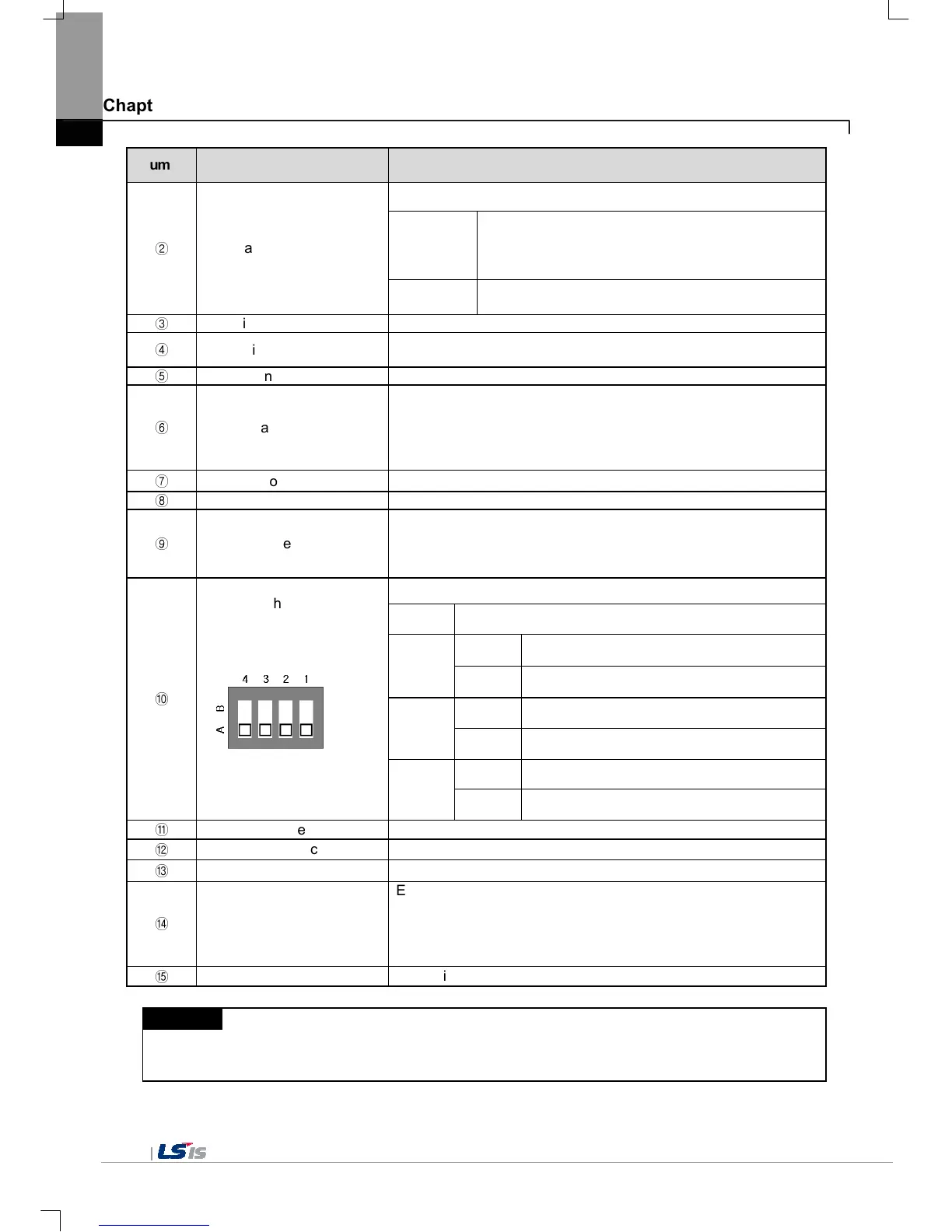

Chapter 2. System Configuration
2-2
Number
Name Description
LED Status
Indicates operation status of device
Green
Normal RUN status
(monitoring, downloading the project data)
Initializing the status when booting
(HMI does not operate)
Red
Error occurs
(communication error, project data error)
Panel fixed part XGT Panel is fixed at panel by bracket.
CF card interface
1) Logging/recipe/screen data backup
2) Upgrade of windows CE is available.
Power connection terminal It consists of power input and FG terminal.
USB interface
It consists of 2 ports.
1) USB memory connection: logging/recipe/screen data backup
2) USB memory connection: project data transmission/backup
3) User interface connection: use of mouse/keyboard
4) Printer connection: printing is available
Extension port Extension module installation
Reset switch Hardware reset switch
TOOL interface
RS-232C interface
1) project data transmission
2) logging/recipe/alarm/screen data backup
3) machine software upgrade
Setting switch
Device setting switch
No.1 Reserved
No.2
A setting
Normal operation (default)
B setting
When upgrading Windows CE
No.3
A setting
Watchdog On (default)
B setting
Watchdog Off
No.4
A setting
RS-422/485 Terminal Switch On (120)
B setting
RS-422/485 Terminal Switch Off (120)
Extension module fixation hall Extension module fixation hall
RS-422/485 connector RS-422/485: PLC/control machine communication
RS-232C connector RS-232C: PLC/control machine communication
Ethernet terminal
Ethernet: 10Base-T / 100Base-TX
1) Project data transmission
2) logging/recipe/alarm/screen data backup
3) machine software upgrade
4) PLC/control machine communication
FG terminal FG terminal hole for extension module
Remark
(1) For details about communication connection, please refer to the communication user manual.
(2) For details about installation, please refer to the Chapter 10
