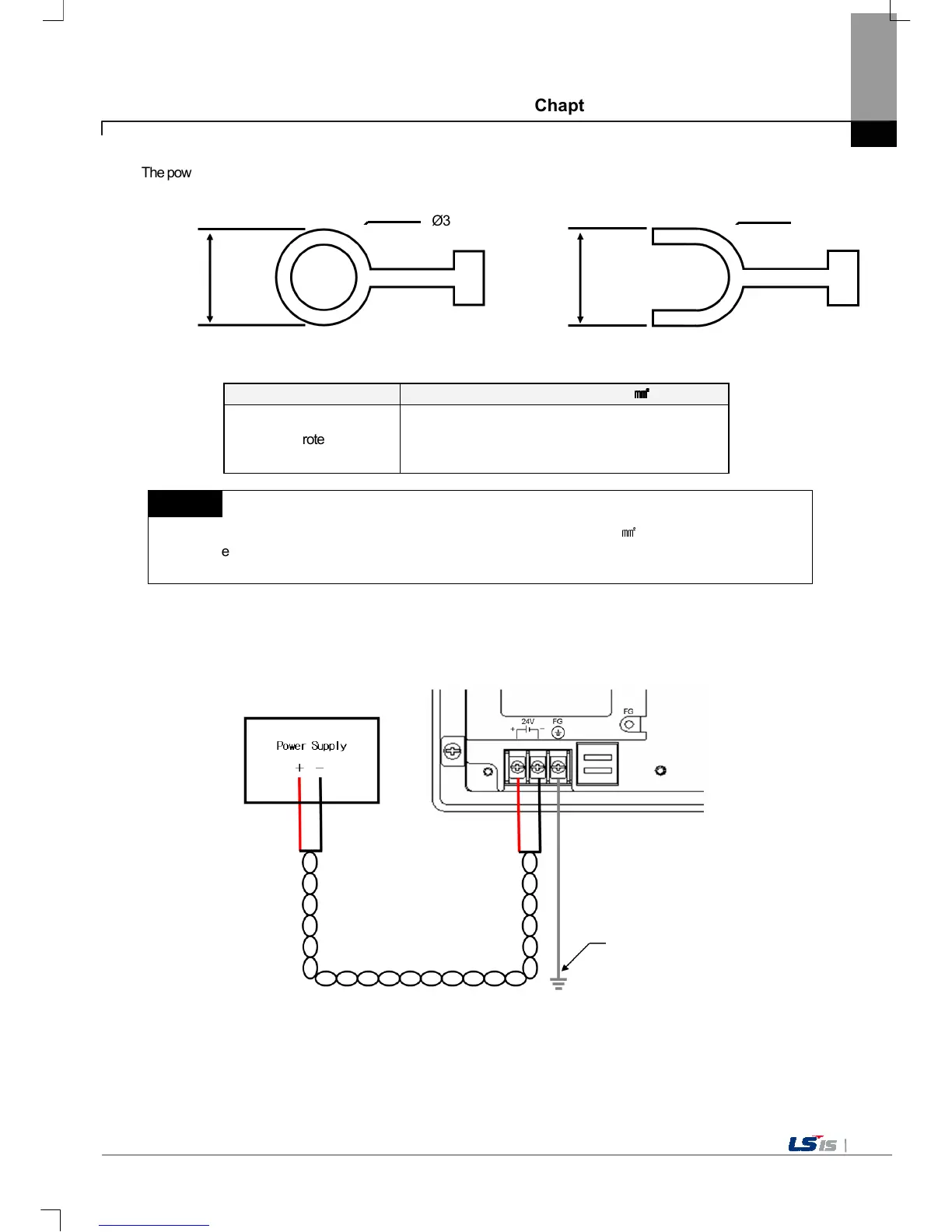

The power terminal should have the following specification.
The power cable should have the following specification.
Type
Cable specification (Unit:
㎟
㎟㎟
㎟
)
Power and protection ground
1.5 (AWG16) ~ 2.5 (AWG12)
Remark
(1) Because of voltage down, we recommend the thick stranded cable (more than 2
㎟
).
(2) If possible, use the stranded cable and connect with minimum length.
(3) To easily classify the cable, use the different color’s cable respectively.
Wiring of power is as follows.
Less than
6.00mm
Less than
6.00mm
Ø3.2
Ø3.2
DC Power connection
To Next Page
