Connections
5
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
POWER: Connect to the mains adaptor.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC in: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.
Coax:
Digital output to AV receiver.
Mini AV: Connect it to the audio & video output terminal of DVD with the Converter cable.
(Audio terminals are shared with YPbPr)
Mini YPbPr: Connect it to the YPbPr video output terminal of DVD.
USB: Connect to USB device for multimedia and PVR.
DVB-S2: Connect a Satellite signal.
Common Interface: CI slot.
Headphone: Connect it to your headphone or other audio equipment.

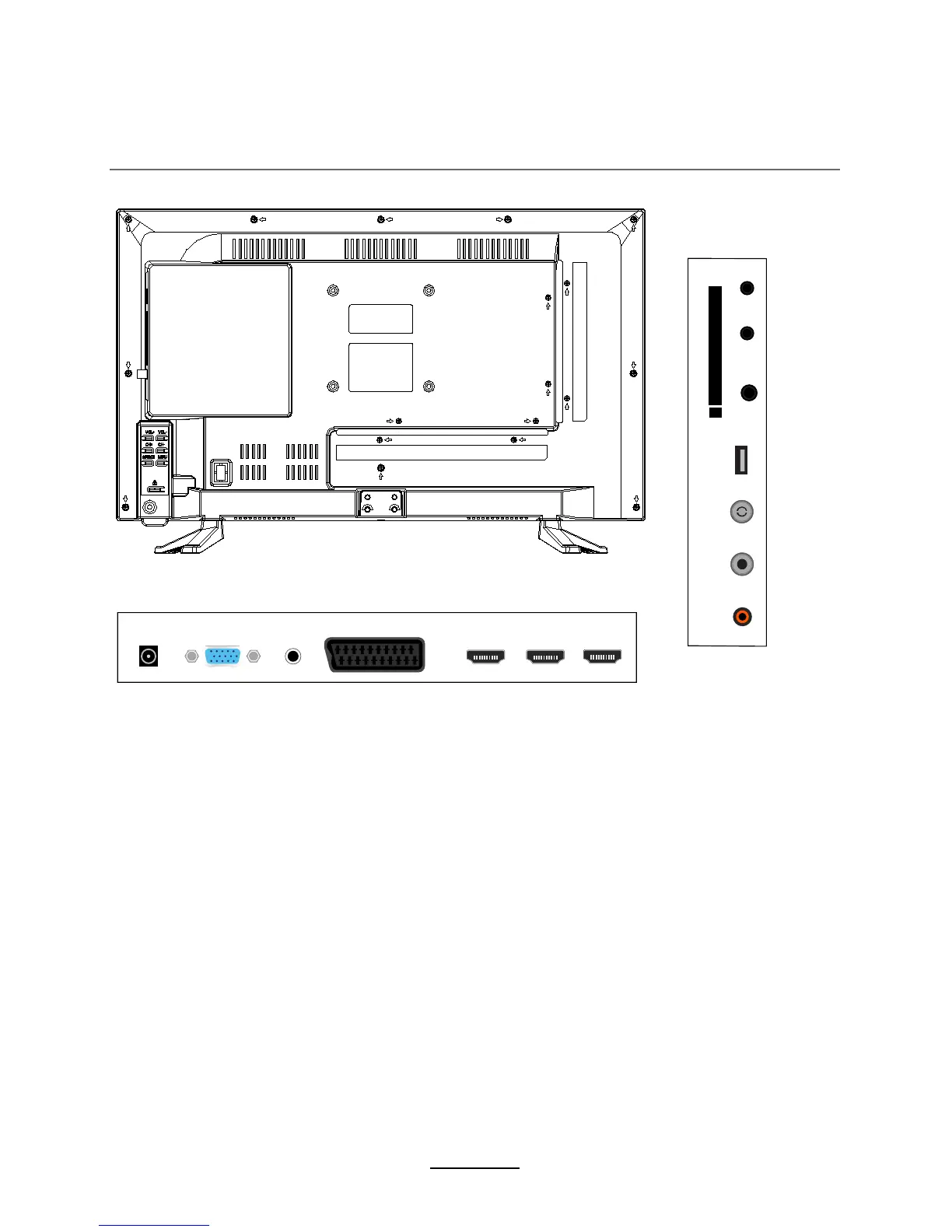

POWER
COAX
Common Interface
DVB-S2
USB
Mini YPbPr
Mini AV
Headphone out
VGA
PC IN
SCART
RF
HDMI1 HDMI2 HDMI3
To Next Page
