31582873EN-03
7
LU-VE Exchangers is a trademark registered and owned by LU-VE Group.
LU-VE Exchangers reserves the right to change specifications without prior notification.
IN

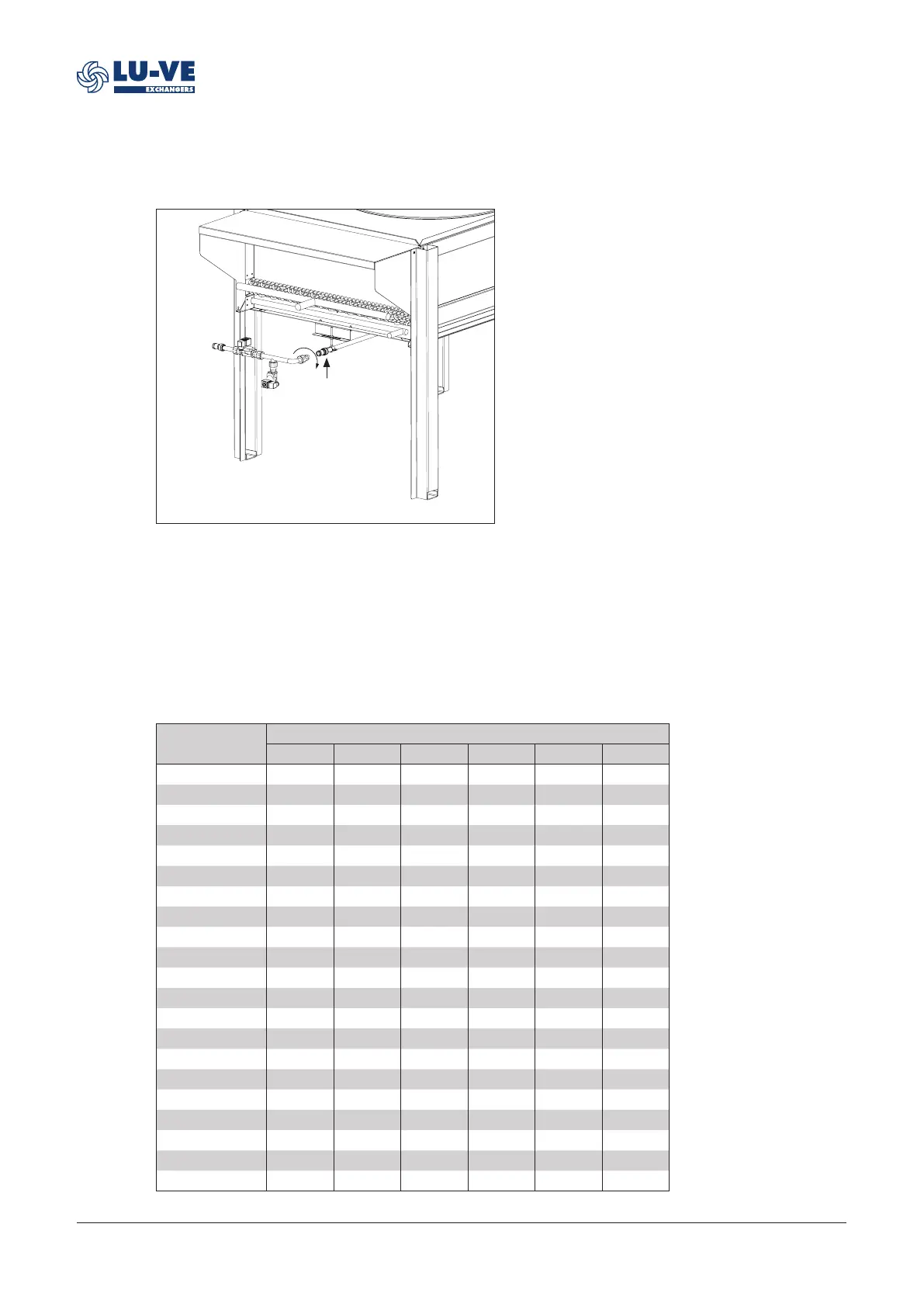

4.2 Charge/discharge module installation (optional)
The charge/discharge module is optional and can’t be used if the KW is not installed.
The module is pre-assembled.
Tighten the charge/discharge module on the KW
inlet.
5 Operation
5.1 Pipeline connections
Each pipeline is equipped with 1/2" threaded female GAS junctions for the water feed.
5.2 KW association
LU-VE Exchangers provides different types of kit according to the unit model and the number of
fans.
Model
Single fan row
1 fan 2 fans 3 fans 4 fans 5 fans 6 fans
SAV8S 10242600 10242602 10242604 10242606 10242608 /
SAV8T 10242600 10242602 10242604 10242606 10242608 /
EAV8S 10242624 10242626 10242628 10242630 10242632 10242634
EAV8T 10242624 10242626 10242628 10242630 10242632 10242634
EHV90F 10242625 10242627 10242629 10242631 10242633 10242635
EAV9N 10242625 10242627 10242629 10242631 10242633 10242635
EAV9U 10242624 10242626 10242628 10242630 10242632 10242634
EAV9X 10242624 10242626 10242628 10242630 10242632 10242634
EHV95F 10242625 10242627 10242629 10242631 10242633 10242635
EHV95N 10242625 10242627 10242629 10242631 10242633 10242635
EHV95U 10242624 10242626 10242628 10242630 10242632 10242634
EHV95X 10242624 10242626 10242628 10242630 10242632 10242634
XAV9K 10242625 10242627 10242629 10242631 10242633 10242635
XAV9N 10242625 10242627 10242629 10242631 10242633 10242635
XAV9U 10242624 10242626 10242628 10242630 10242632 10242634
XAV9X 10242624 10242626 10242628 10242630 10242632 10242634
XHV95F 10242625 10242627 10242629 10242631 10242633 10242635
XHV95N 10242625 10242627 10242629 10242631 10242633 10242635
XHV95U 10242624 10242626 10242628 10242630 10242632 10242634
XHV95X 10242624 10242626 10242628 10242630 10242632 10242634
XAV10N 10242625 10242627 10242629 10242631 10242633 10242635
