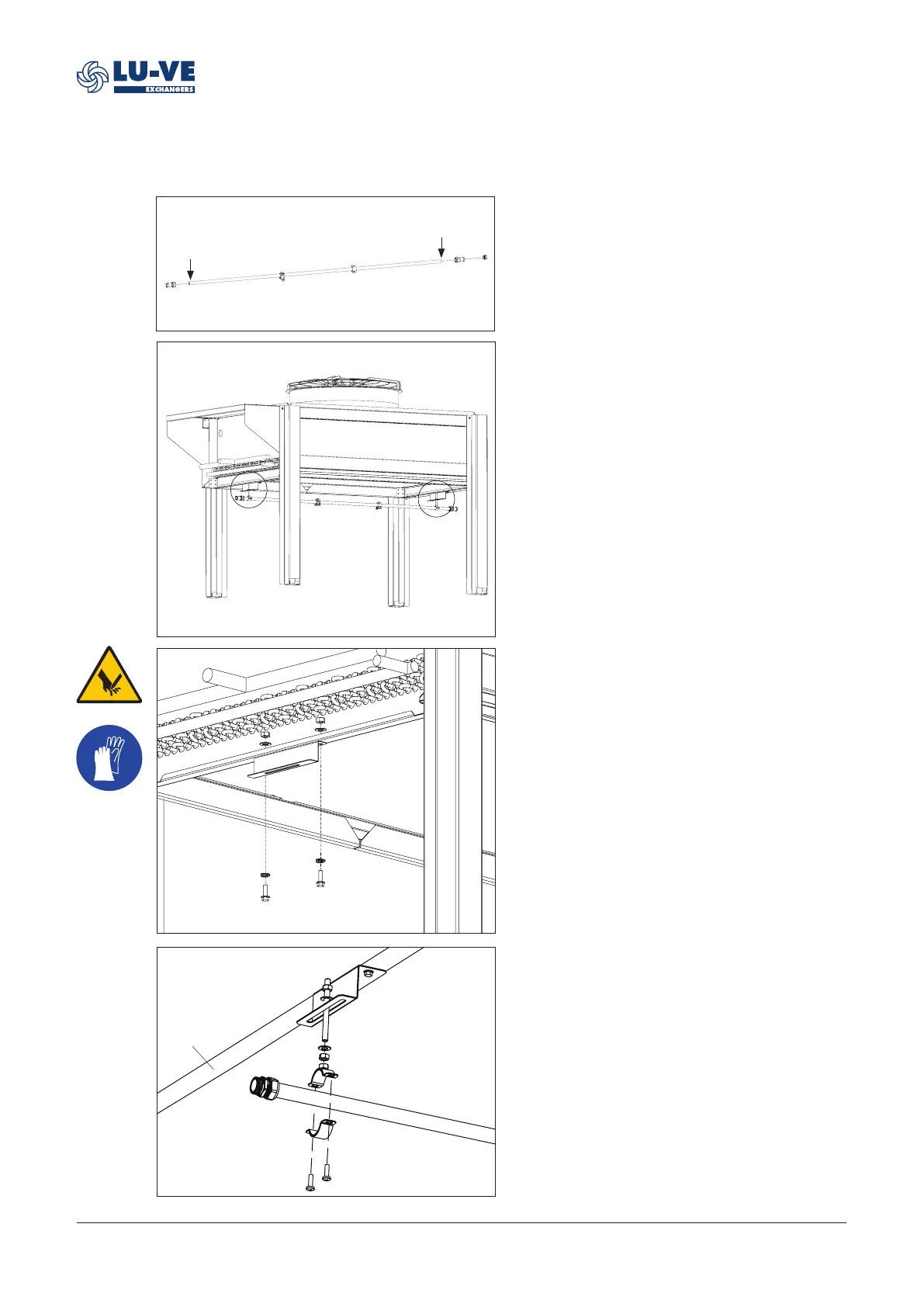

4 Installation
4.1 KW installation
Insert the female connectors on tube ends.
Place the end-cap on the tube outlet.
OUT
IN
KW components have to be connected to the
coil frame.
Fix the stirrups to the coil frame by tightening the
M8 screws, growers, wahshers and nuts.
coil frame
Assemble the pipe clamps FRS and fix them to
the stirrups.
