LUBE EGM - Page 4

3
(2) Motor
Part No. Rated Voltage
539205
24VDC
(3) Grease Cartridge
400cc 700cc
LUBER MP-0 249050 (MP0-4)
－－
LUBER MP-1 249051 (MP1-4)
－－
LUBER FS-2 249053 (FS2-4) 249063 (FS2-7)
(4) Reservoir
Part No. Cartridge Size Material
539131 400cc Cartridge Resin
530705 700cc Cartridge
Resin
530377 260cc Resin
(5) Pressure gauge（Optional Parts）
Part No. Pressure range Thread
109141 25MPa R1/8

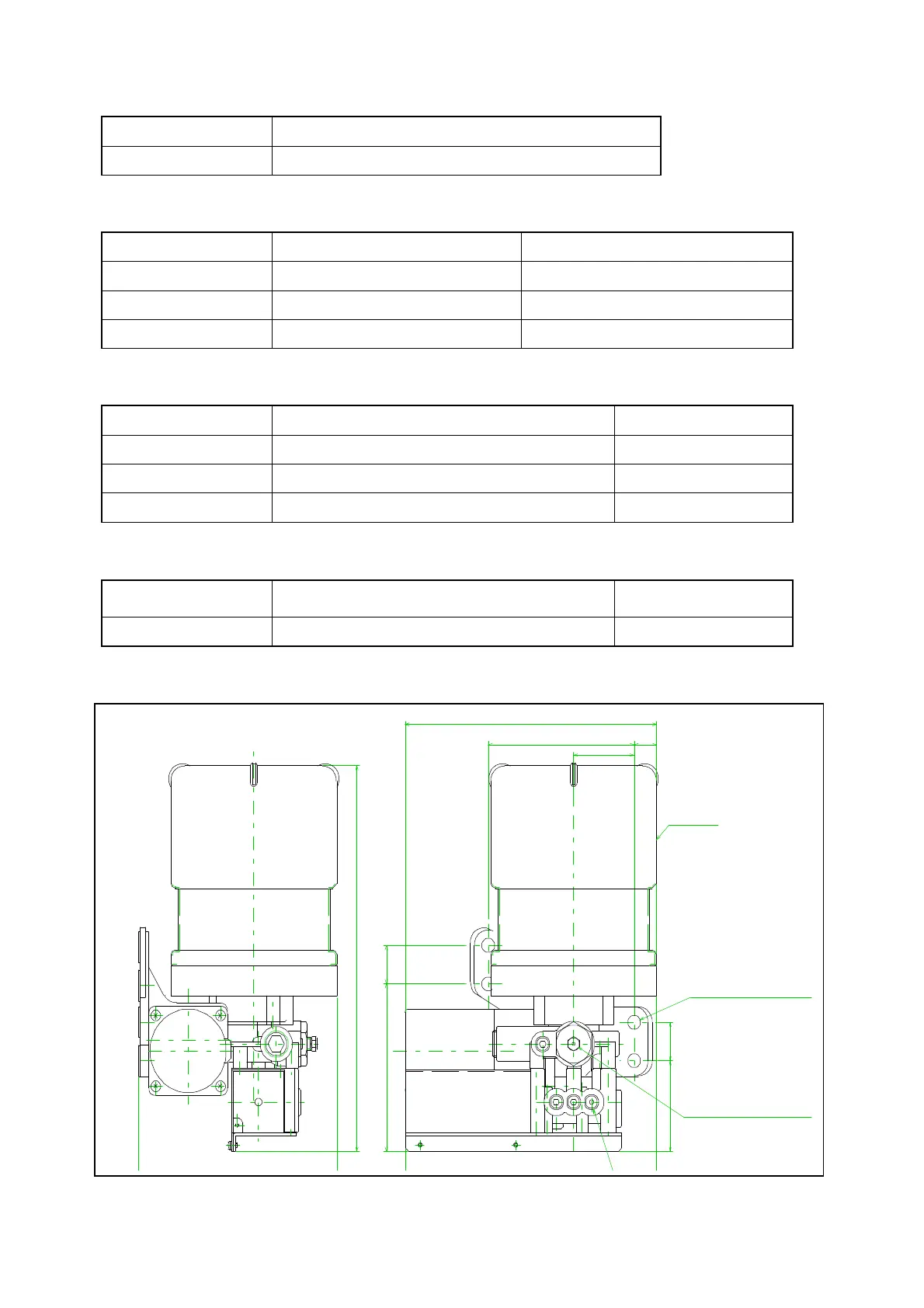

2.2 Name of Each Component
EGM-10S-4-7C
１７９
１４１
１０４
４３
５９ ２５
１０９ ２５
４－φ９
Ｉｎｓｔａｌｌａｔｉｏｎ Ｈｏｌｅ
２５１
１７９
１６
Ａｉｒ Ｂｌｅｅｄｉｎｇ Ｐｌｕｇ
Ｃｏｖｅｒ
