Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Description
Oil Pump
Bolt
Nut
Wall bracket
Pump adapter
Flexible suction hose
Bung adapter
Rigid suction tube
Spring circlip
Ball
Valve seat
Filter
Washer
Washer
Suction hose adapter
Q'ty
1
6
6
1
1
1
1
1
1
1
1
1
6
6
1
12

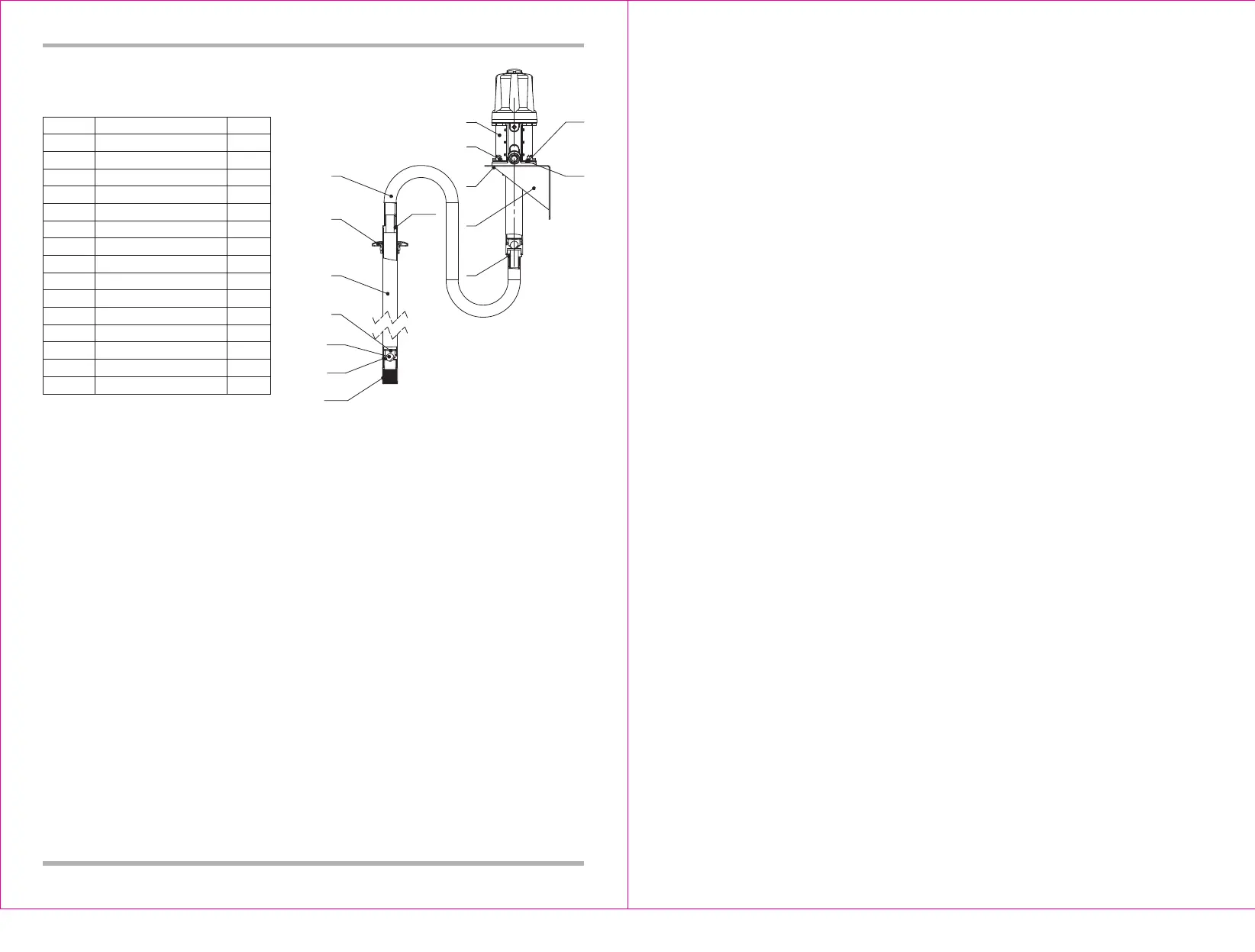

Wall Installed
Part List
Proceed As Follows
1. Secure the bracket to the wall using the dowels at about 1200mm height appropriate for the
tank’s dimensions. Make sure that the wall is soild and thick enough for the dowels. Do not
interfere with hydraulic tubes or electric lines.
2. Secure the pump to the bracket 4.
3. Connect the flexible suction tubes 6 to the pump using the clamp provided.
4. Cnnect the rigid suction 8 to the end of the flexible suction tube 6 using the elastic clamp
provided.
5. Put the bung adapter 7 into the drum hole.
6. Put the rigid suction tube 8 into the pump and secure it in place.
Limited Warranty
1. The manufacturer warrantees this product against defects in material and craftsmanship, for a
period of 36 months from date of purchase, but not including wearing parts.
2. Manufacturer’s liability is limited to replacement or repair of defective material within the warranty
period, when returned freight prepaid to the distributor or their designated service depot.
3. The warranty does not cover damage caused by accident, misuse or faulty installation.
4. The product must be installed and maintained in compliance with the instructions.
11
4
5
7
6
1
3
8
10
9
14
13
15
2
12
Size: 145x210mm 157克铜版纸 REV 01/12/15 2.09.05.30.434
