Power Up: DLP-512 363-205-401
Page 2 of 4 Issue 7, March 1997

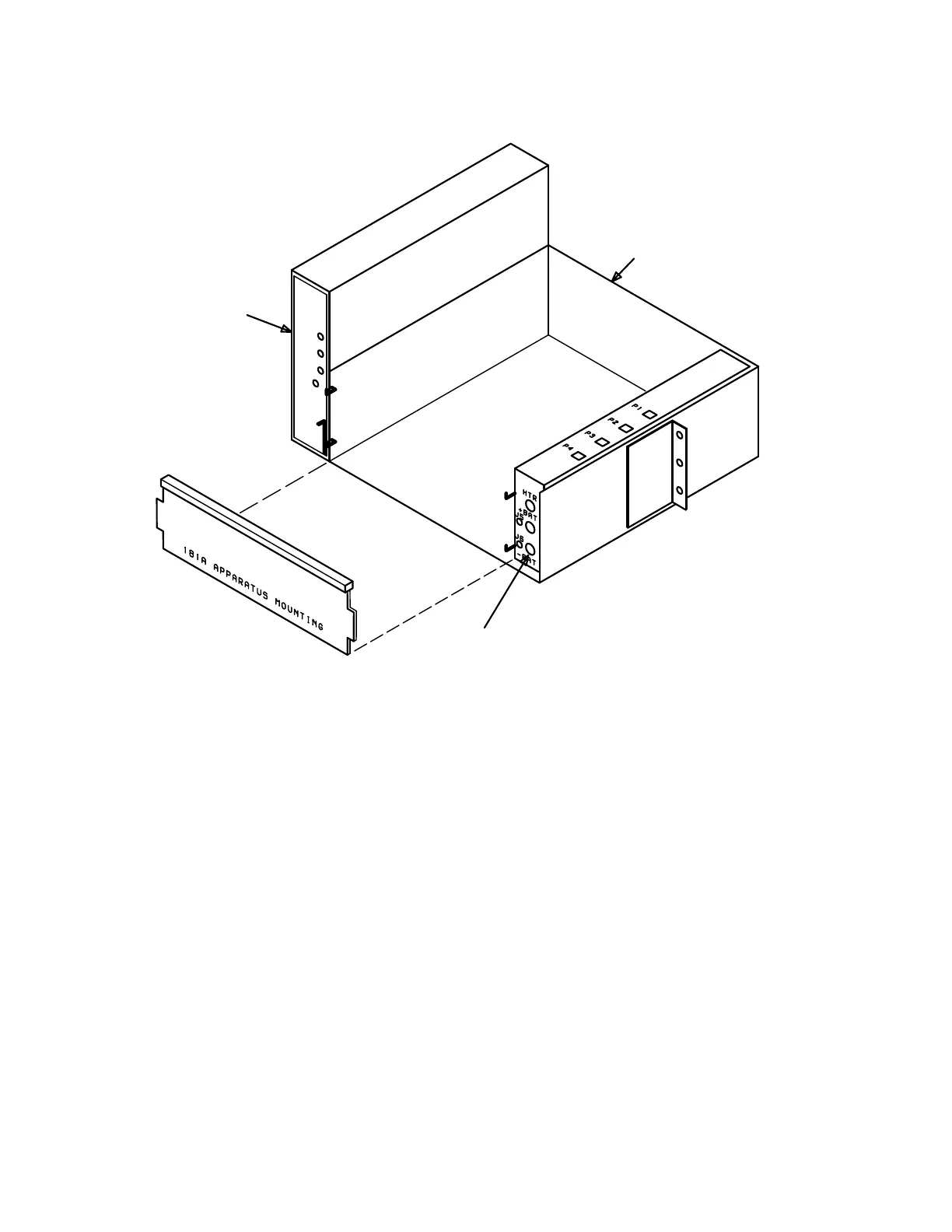

Figure 1 ā Battery Shelf
6. Reinstall front covers on battery shelves by pushing the bottom of the cover
into the bottom slots at the ends of the panel and then pushing the rolled-over
lip, at the top of the cover, over the top two nubs.
7. Condition DMM to measure DC volts.
8. On battery shelf, connect DMM test leads to
+BAT
jack (
J5
) and ā
BAT
jack
(
J6
).
FUSES
MOUNTING
APPARATUS
181A
CHARGER
BATTERY
337A
