Lucent Technologies SLC 5 Series - Page 137

363-205-401 Power Up: DLP-512
Issue 7, March 1997 Page 3 of 4

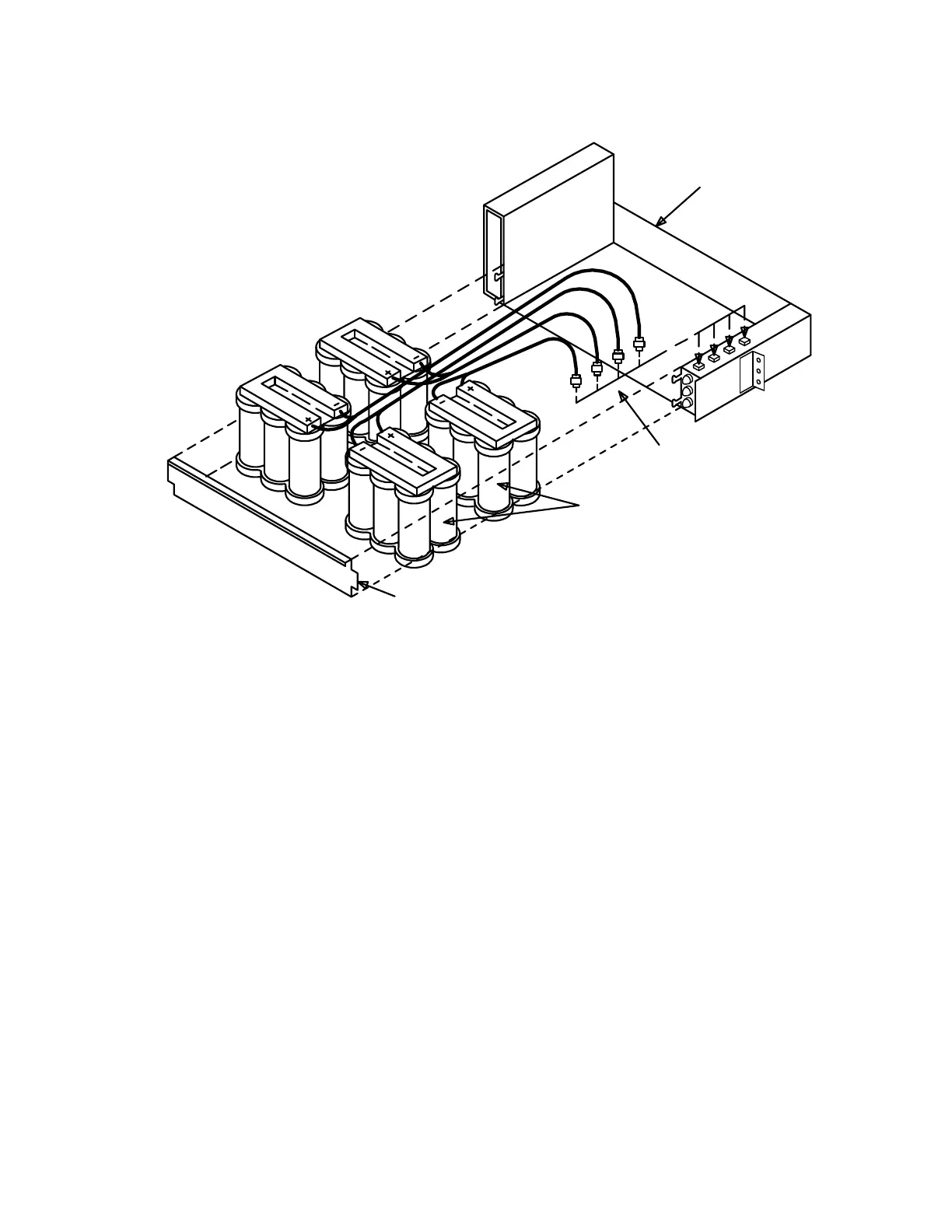

Figure 2 – Battery Placement and Connections
9. Does meter indicate greater than 45.0 volts DC?
If
YES,
then proceed to Step
18.
If
NO,
then continue with Step
10.
10. Check battery lead connections at battery shelf.
11. Does meter indicate greater than 45.0 volts DC?
If
YES,
then proceed to Step
18.
If
NO,
then continue with Step
12.
SHELF
BATTERY
FRONT COVER
BATTERIES
KS-21906, L4
LEAD JACKS
BATTERY
ED7C678-( )
