363-205-401 Power Up: DLP-513
Issue 7, March 1997 Page 7 of 8

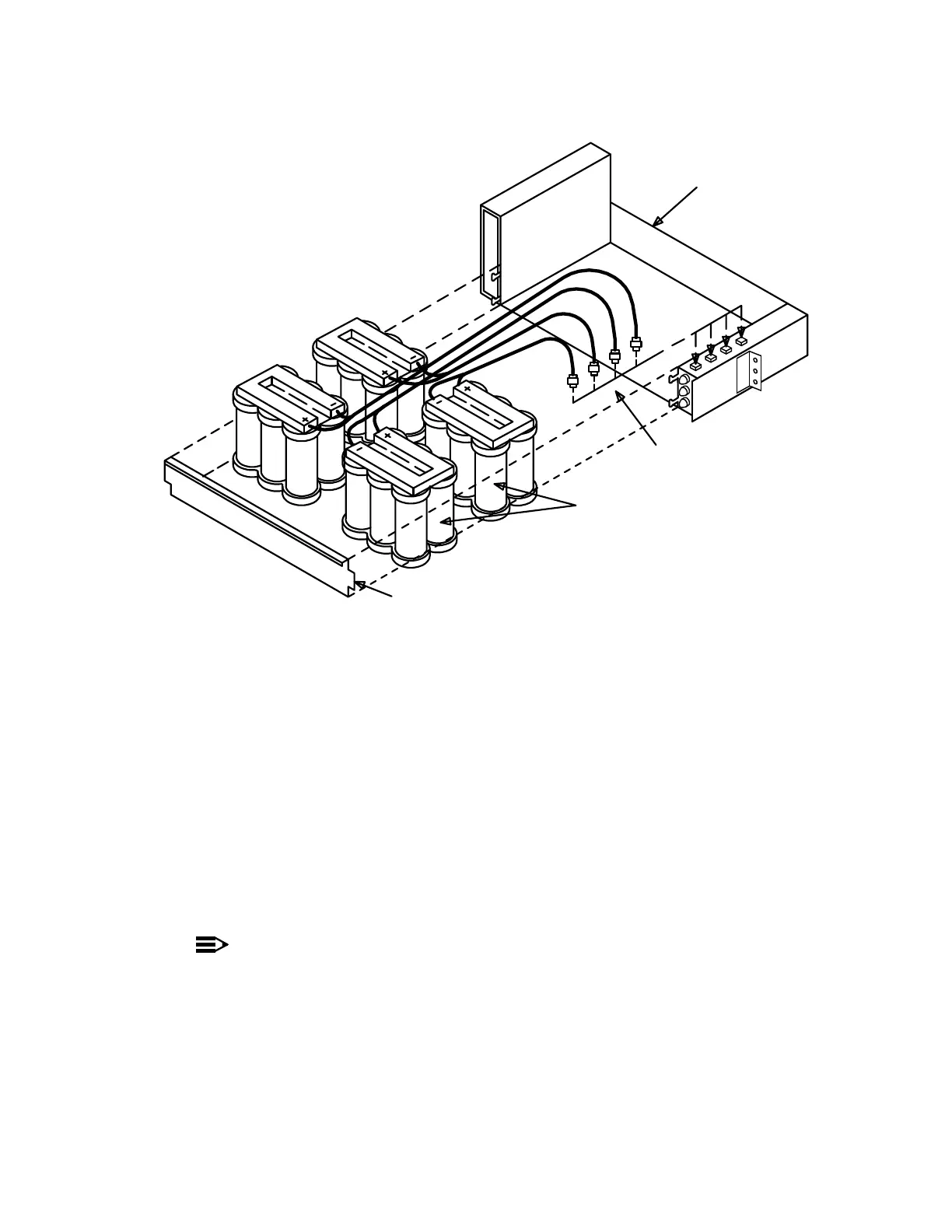

Figure 3 – Battery Placement and Connections
29. Check battery lead connections at battery shelf.
30. Does meter indicate greater than 45.0 volts DC?
If
YES,
then proceed to Step
37.
If
NO,
then continue with Step
31.
31.
NOTE:
If voltage requirements are not met after replacement battery pack is
installed, original battery pack should be reinstalled in battery shelf.
Replace one of the battery packs.
SHELF
BATTERY
FRONT COVER
BATTERIES
KS-21906, L4
LEAD JACKS
BATTERY
ED7C678-( )
To Next Page
