Power Up: DLP-527 363-205-401
Page 4 of 6 Issue 7, March 1997

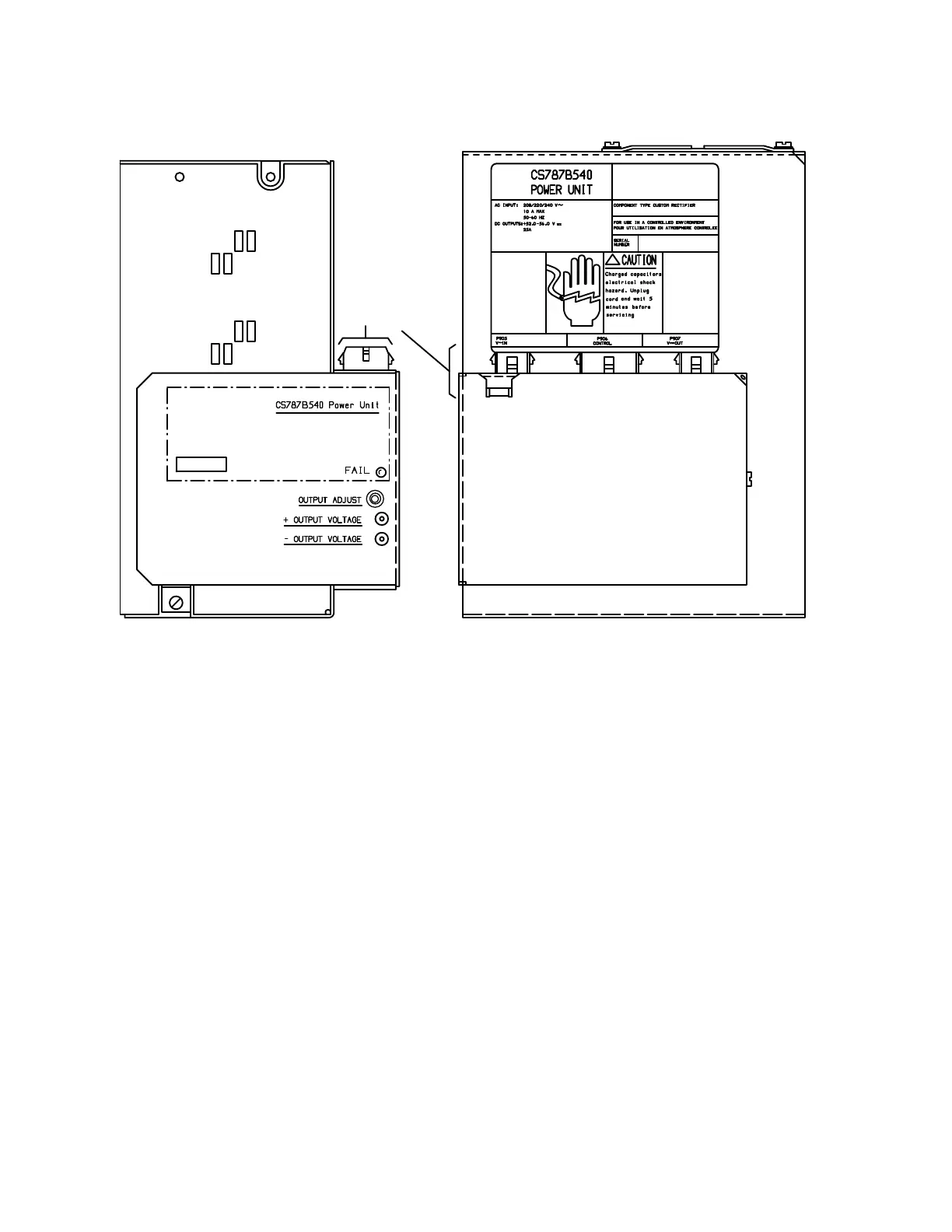

Figure 3 – Front and Top View of CS787B540 Power Unit
5. On AC power panel, turn on
CB1
(utility) circuit breaker.
6. On AC power panel for power unit being installed, verify
R( )
(R1, R2, R3) AC
power cord from rectifier shelf is plugged into correct AC outlet [Figure 1].
Turn on
CB( )
(CB6, CB7, or CB8) circuit breaker to this feeder.
FRONT VIEW CONNECTOR SIDE VIEW
CONNECTORS
OUTPUT
INPUT AND
To Next Page
