363-205-401 RT Turn Up: DLP-506

Issue 7, March 1997 Page 3 of 8

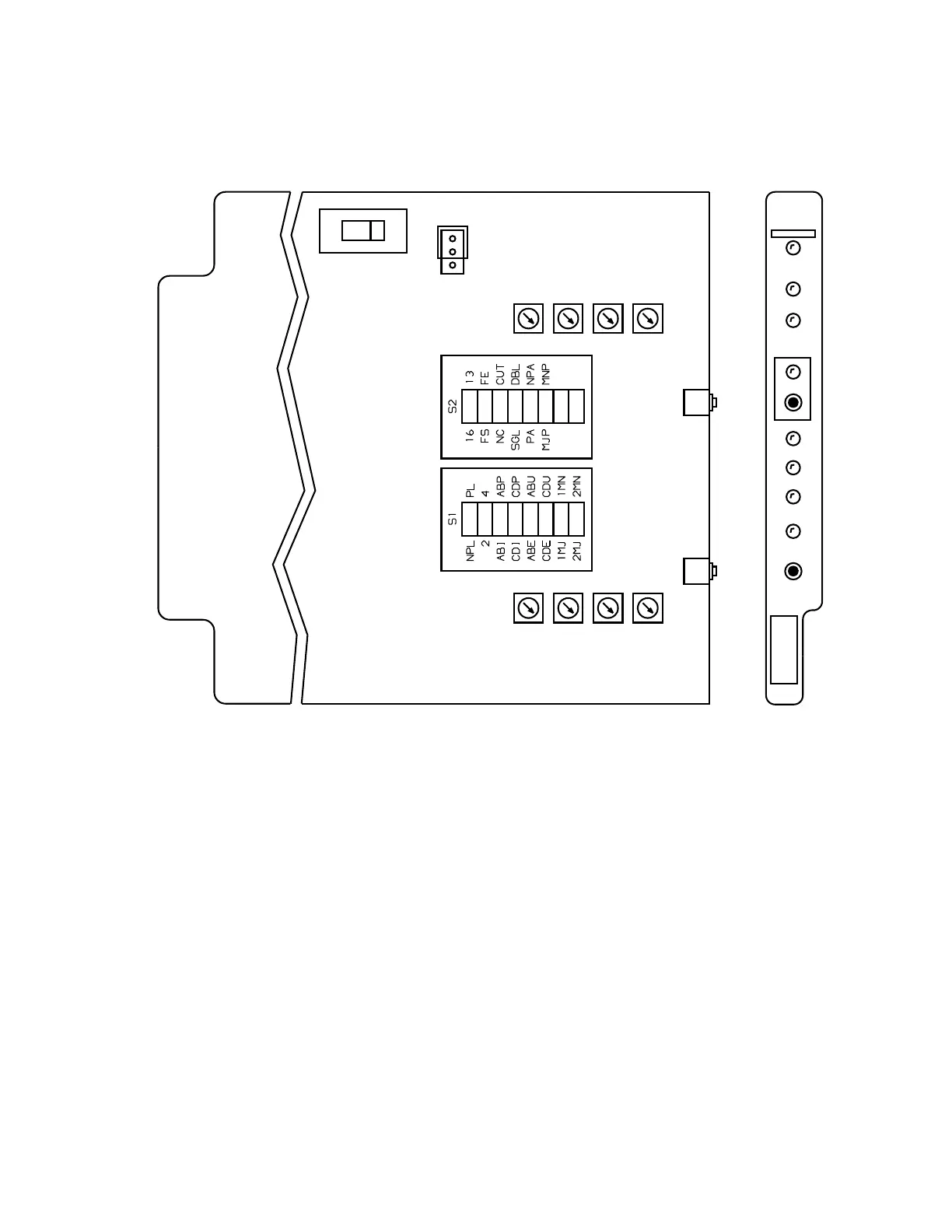

Figure 1 – AUB27 RT ADU Option Switch Settings

5. On

AUB27 ADU

option switch

(Figure 1 and Table A), use an orange stick

(KS-6320) or equivalent and set switches as follows:

•

1 -

Toward

•

2 -

Toward

for FPB (Feature Package B Mode 1 or Mode 2) applica-

tions. Toward

for Feature Package C-AutoCut or other applications.

•

3 - Toward NC

for all preservice applications. (CUT is only used when an

FPC-AutoCut RT is optioned for in-service when establishing end-to-end

system)

PRV

CMP

ACO

FAIL

CLEAR

NDL

1 34562

1 3456278

DL S3

S4 S5 S6 S7

S8 S9 S10 S11

NORM

S12

S13

TEST

ADU

LED

tpa 783441/01

AUB27B
