363-205-401 Power Up: Introduction-000
Issue 7, March 1997 Page 5 of 8
J1C182PB-1 - Optical Power Shelf
This power shelf is used with Fiber to the Home equipment in a frame fed by
-48 Volt power plant or 80E Bulk Powered cabinet.

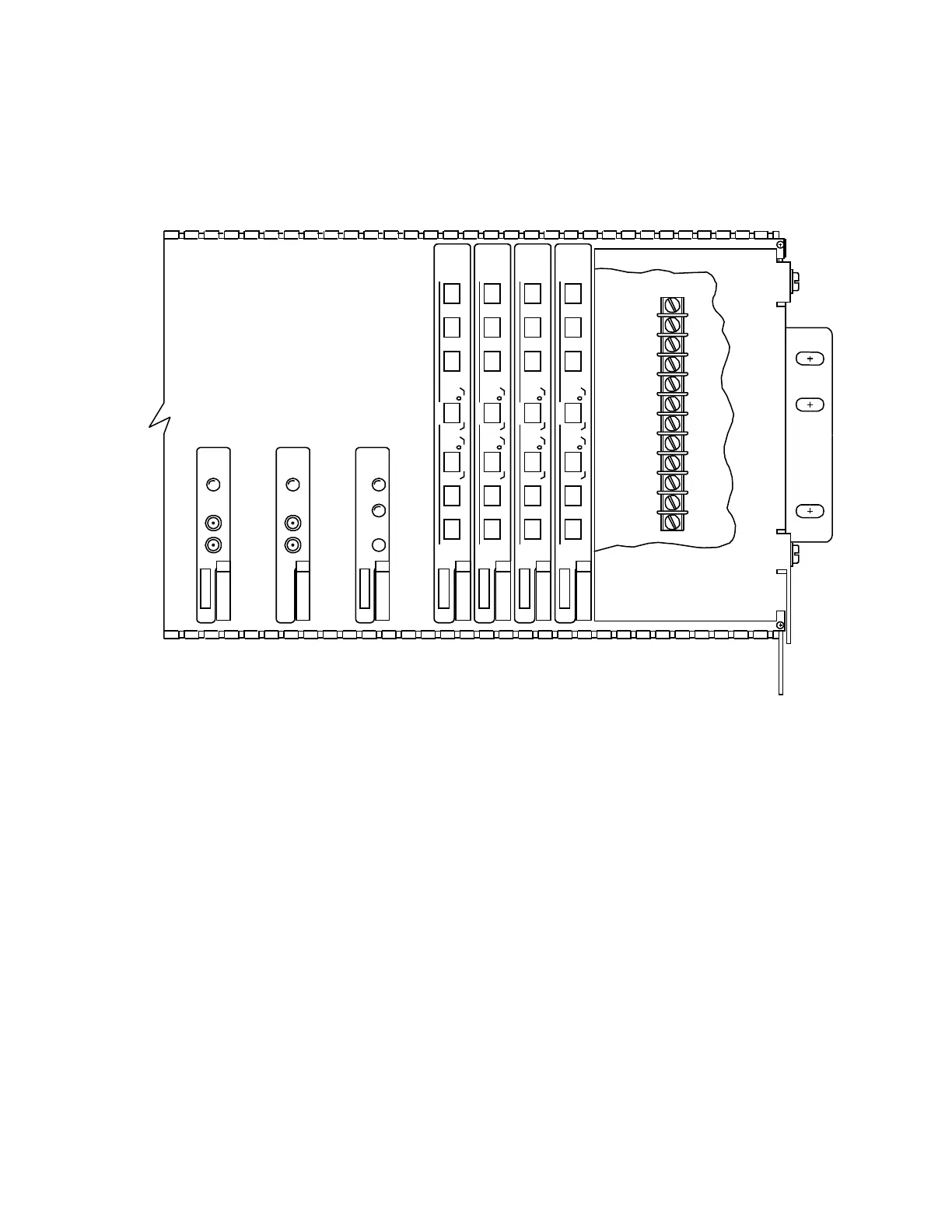

Figure 4 – Right half of J1C182PB-1 Optics Power Shelf
The J1C182PB-1 power shelf (Figure 4) requires the following equipment:
• 4 bank fuse units (AUG11 BFU or 40D BFU, 1 for each equipped dual channel
bank).
• 8 power converter units (AUA11B PCU or AUA11C PCU, 2 for each equipped
optical shelf).
• 1 Alarm/Fan control unit (AUA402 A/FCU).
BLUE
FAN BFAN A
BFU
FAIL
GND
AUA11B
MJ
FAN
TEST
MN
AUA402
BLUE
FAN B
BLUE
FAN A FAN B
BLUE
FAN A FAN B
FAN A
ALM
ALM
CMN BLX WHX
ALM
ALM
-48V
CMN BLX WHX
WHITE
WHITE
-48V
ALM
ALM
-48V
CMN BLX WHX
ALM
ALM
-48V
CMN BLX WHX
BPC
-48RTN4
-48V4
-48V3
TB1
-48RTN3
-48RTN2
-48V2
-48RTN1
-48V1
WHITE WHITE
40D 40D 40D 40D
PMN
BFU BFU BFU
-48
PCU
FAIL
-48
GND
PCU
AUA11B
Lucent Lucent Lucent
Lucent Lucent Lucent Lucent
