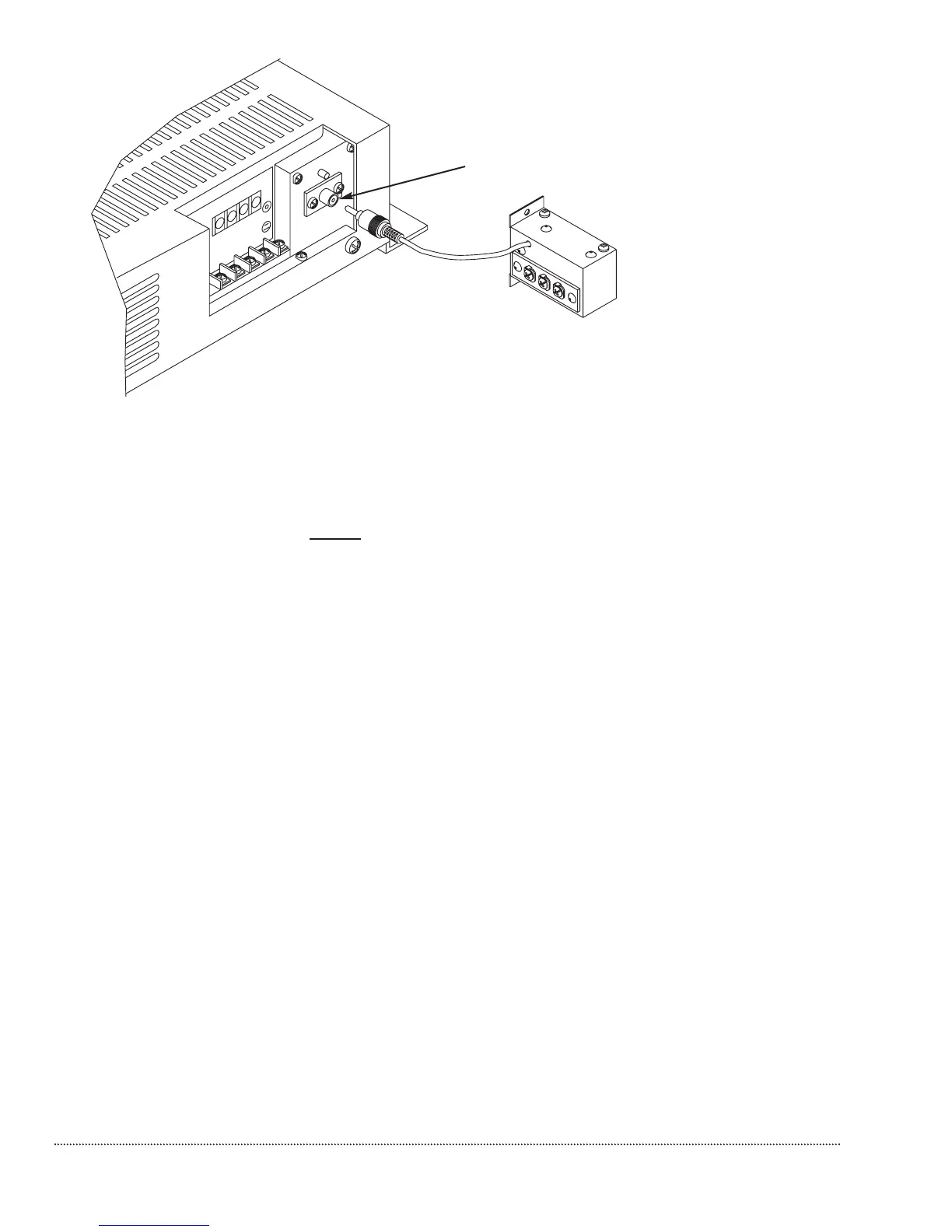

LUWMT1A Connector An RCA jack is provided near the output terminal strip for connection to an
LUWMT1A impedance matching transformer (Com Code 405891680). A 600-ohm,
telephone level output signal can be obtained by plugging the RCA connector of the
LUWMT1A into this jack and taking the output signal off of the LUWMT1A screw
terminals (see Figure 8).
NO
TE: For information on connecting Telephone Paging Amplifiers to the Lucent
PCM Paging System Zone Controller (model LUPCMALL), please refer to the
LUPCMALL instruction manual.
Output Cover Replacement When all output connections are made, remove the appropriate knockout on the
input cover. Replace the cover and tighten the screws while dressing the wires
through the knockout hole.
