Lumberjack Log Lock - Page 5

5

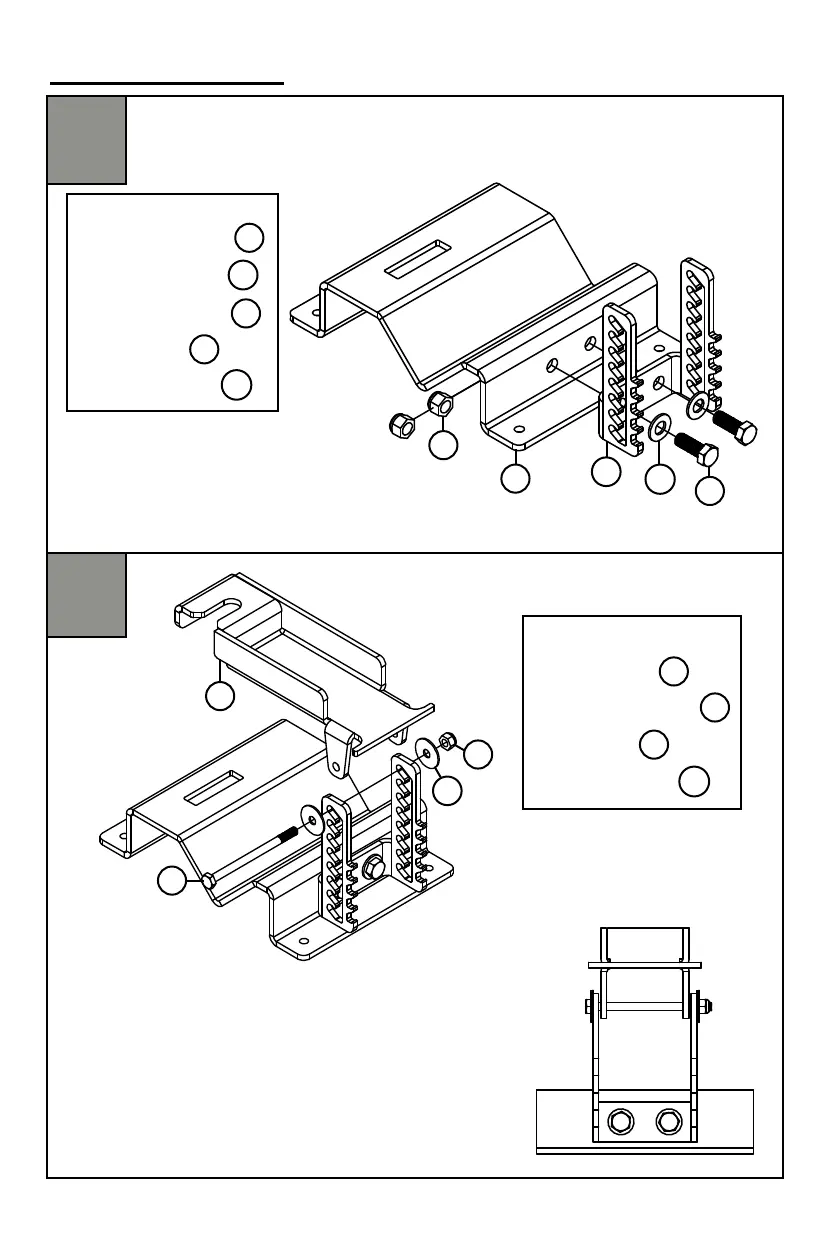

Fixture Assembly
11
2
Build your Log Lock from “the ground up”. DO NOT screw down
the fixture base until all parts are assembled.
● Secure the ladder to base
- Use the 3/8” bolts, nuts
& washers
● Secure the top to ladder
- Use the 1/4” bolt, nut &
washers
- DO NOT overtighten!
- Hand tight, then loosen nut
one full turn
Parts Needed:
● Fixture bottom
● Fixture ladder
● 3/8” x 1” bolts
● 3/8” nuts
● 3/8” washers
Parts Needed:
● Fixture top
● 1/4” x 3-¾” bolt
● 1/4” nut
● 1/4” washers
1B
1C
4A
4B
4C
1A
3A
3B
3C
4A
4C
1C
4B
1B
3A
3C
3B
1B
