3

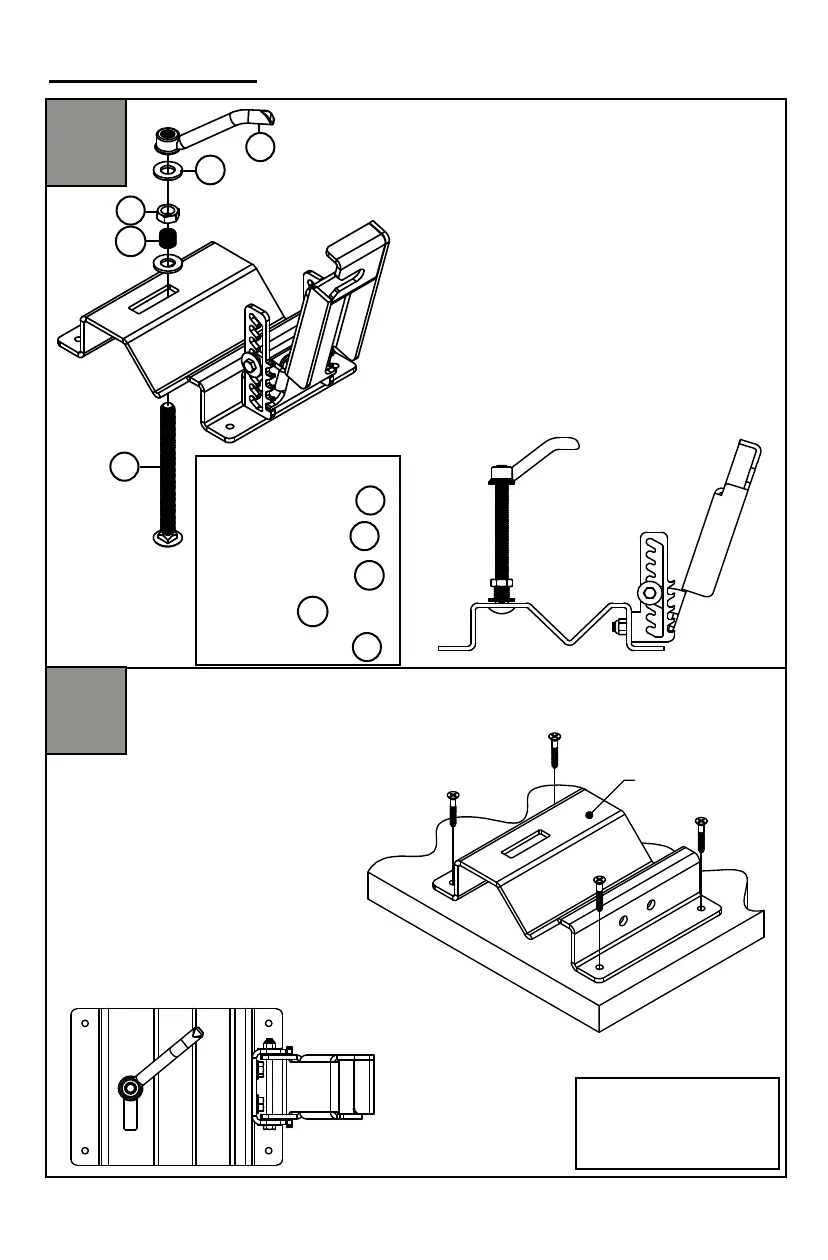

Assembly Cont.
● Slide the 1/2” x 6” bolt through the
slot in the bottom plate
- Slide a 1/2” washer down the bolt
followed by the spring and 1/2” nut
- Tighten the nut until it begins to
compress the spring
- DO NOT fully compress the spring
- Add the second washer and screw
handle to the top
6
Mount the fixture so that the stationary base is either flush with
the workbench or 1” behind the edge of the table.
● Use four screws or nuts &
bolts to secure the four
holes to the mounting
surface
(screws not included)
● Make sure the mounting
surface is flat and level
● Ensure the workbench is
firmly secured or stable
4
Base
Parts Needed:
● 1/2” x 6” bolt
● 1/2” jam nut
● 1/2” washers
● Spring
● Screw handle
Parts Needed:
● Wood Screws not
Included
*Some parts hidden for clarity
2C
2C
